| Dimensions | 157 X 41 X 52 | 157 X 41 X 52 |
| Weight | 7,430 | 7,430 |

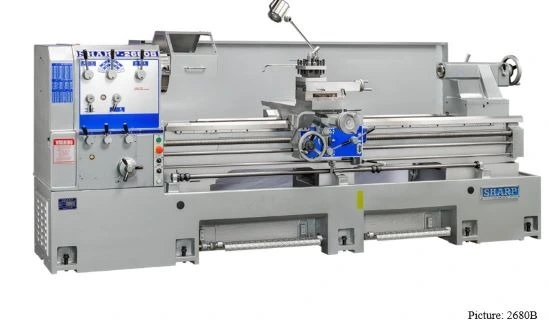

SHARP (NEW) MODEL 26160B PRECISION LATHE
CAPACITY
- 26" SWING OVER BED
- 17.33" SWING OVER CROSS SLIDE
- 13" CENTER HEIGHT
- 35" SWING OVER GAP
- 169" BETWEEN CENTERS
HEADSTOCK
- 10 - 1,000 RPM SPINDLE SPEEDS - 12
- D1-11 CAMLOCK SPINDLE NOSE
- 4.5" SPINDLE BORE
- MT#7 TAPER OF SPINDLE BORE
- MT#5 TAPER OF CENTER
THREADS AND FEEDS
- 44 INCH THREADS 2 - 56 TPI
- 24 METRIC AND MODULAR THREADS 0.5- 0.14MM
- 36 DIAMETRAL PITCH THREADS 4-56MM
- 0.0022" - 0.032" IPR LONGITUDINAL FEEDS - 18 IN/REV
- 0.00026" - 0.035" IPR CROSS FEEDS - 17 IN/REV
- 4 TPI LEADSCREW PITCH, 1-1/2" DIAMETER
CARRIAGE
- 14.75" CROSS SLIDE TRAVEL
- 8" COMPOUND REST TRAVEL
- 6" COMPOUND WIDTH
BED
- 183" BED LENGTH
- 15.75" BED WIDTH
TAILSTOCK
- 3" QUILL DIAMETER
- 6.5" QUILL TRAVEL (GRADUATED)
- MT #5 QUILL CENTER TAPER
15 HP MOTOR, 3 PHASE, 220 OR 440 VOLT
STANDARD EQUIPMENT
- 315 IPM RAPID TRAVERSE ON LONGITUDINAL
- 4-JAW 16" CHUCK
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- 20" FACE PLATE
- 3.15" - 11" STEADY REST
- 4-WAY TOOL POST
- 4-WAY CARRIAGE STOP
- SPLASH GUARD
- 16" CHUCK GUARD
- TAIL STOCK
- FOLLOW REST (1.57" - 6.3")
TOOL KIT
- MACHINE MANUAL
- HALF NUT WRENCH
- WRENCH 17M, 19M
- SET OF 6 ALLEN WRENCHES
- PHILLIP SCREW DRIVER
- FLAT HEAD SCREW DRIVER
- OIL CAN
- GREASE GUN
- REAR WAY COVER BRACKET
- 2 SET OF DEAD CENTER
- PIN FOR INDICATOR
- CAN OF PAINT
FEATURES
- D1-111 CAMLOCK
- 4.5" SPINDLE BORE
- DIRECT SELECTION FOR INCH/METRIC THREADS
- ONCE PIECE CAST MEEHANITE BED
- 15 HP SPINDLE MOTOR
- 12-SPEED GEAR HEAD (10-1,000 RPM)
OPTIONAL ACCESSORIES - PRICE ON REQUEST
- 3 OR 4 JAW CHUCKS
- TAPER ATTACHMENT
- DRILL AND ARBOR (JACOBS)
- QUICK CHANGE TOOL HOLDER (ALORIS) 7 PCS
- LIVE CENTER- MT#5
- 5C LEVER COLLET CLOSER (ATLAS)
- 5C COLLET SET (1/8 TO 1/16" X 1/16") 16 PCS
- MICROMETER CARRIAGE STOP
- STEADY REST 12" (3.15" X 11")
- STEADY TEST 15" (6.7" - 15")
- ROLLER JAWS SET (3 PCS)
- CHUCK GUARD WITH LIMITED SWITCH
- TOOL GUARD WITH LIMITED SWITCH
- LEAD SCREW GUARD
- GUARD BEHIND SPINDLE
- DIGITAL READ OUT SYSTEMS
Power: 220/440 (3-Phase)
