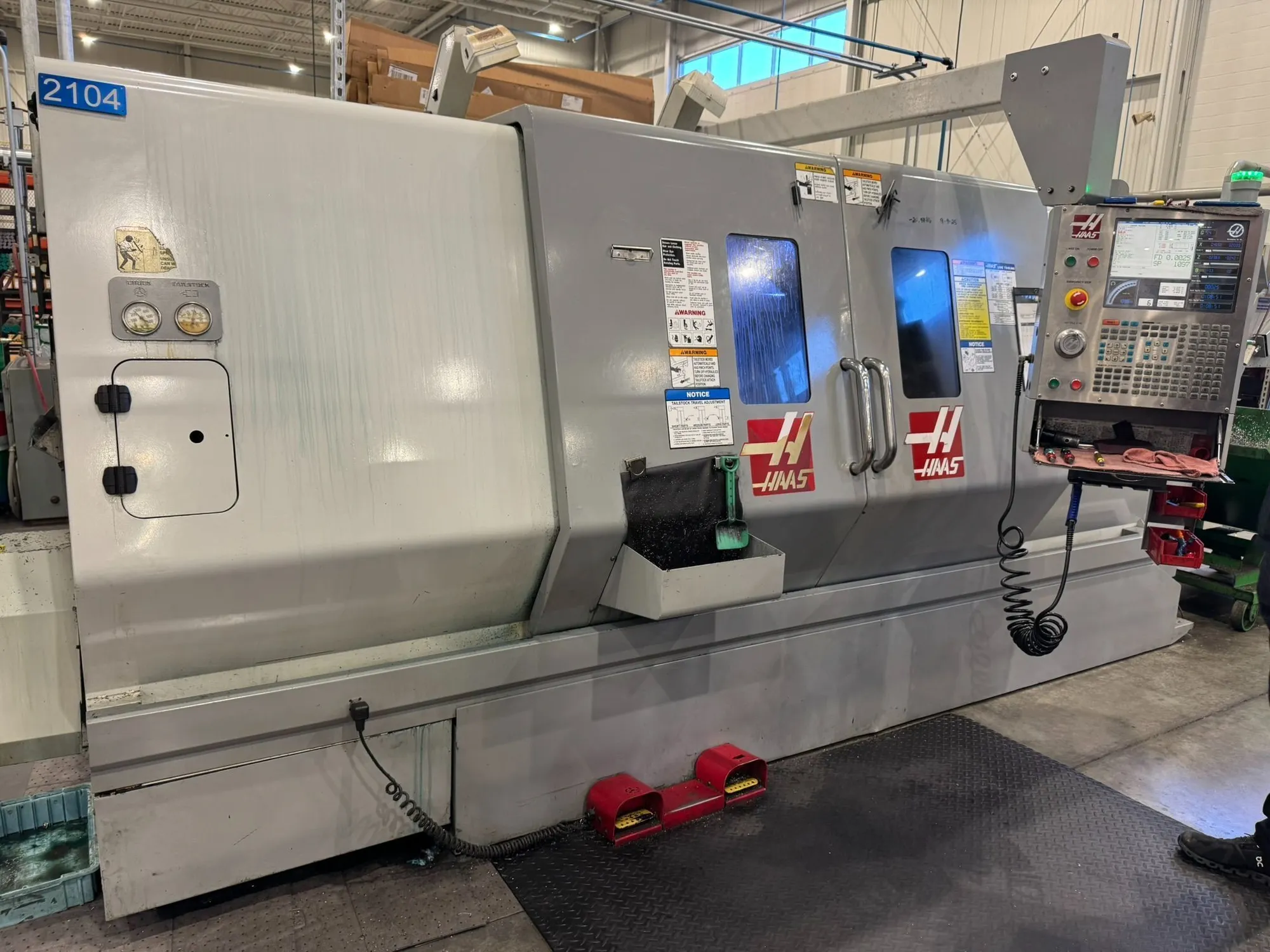

CNC Lathe in used condition. Features 30" swing, 60" machining length, 10" chuck, 3" bar capacity, and 30 hp power. Includes a 15" LCD monitor, spindle orientation, parts catcher system, and high-intensity lighting.
| Swing | 30" | 762 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
| Weight | 13,300 Lbs | 13,300 Lbs |
Swing: 30"
Center distance: 62.5"
Number of axis: 2
Chuck size: 10"
Bar capacity: 3"
X-axis travel" 9.4"
Z-axis travel: 62.5"
Rapid traverse (X/Z): 945 IPM
Spindle nose: A2-6
Spindle speed: 3,400 RPM
Main motor: 30 H.P.
Turret capacity: 12
Weight: 13,300 Lbs.
12 station hybrid turret
Live tooling with C-axis
15" LCD monitor
Spindle orentation
USB port
Rigid tapping
PTS-2 programmable hydraulic tailstock
Automatic tool presetter
Parts catcher system
High-intensity lighting
LCCS30 belt type chip conveyor
Renishaw LP2 probe with OMP40M
HPC1000 high pressure coolant system
