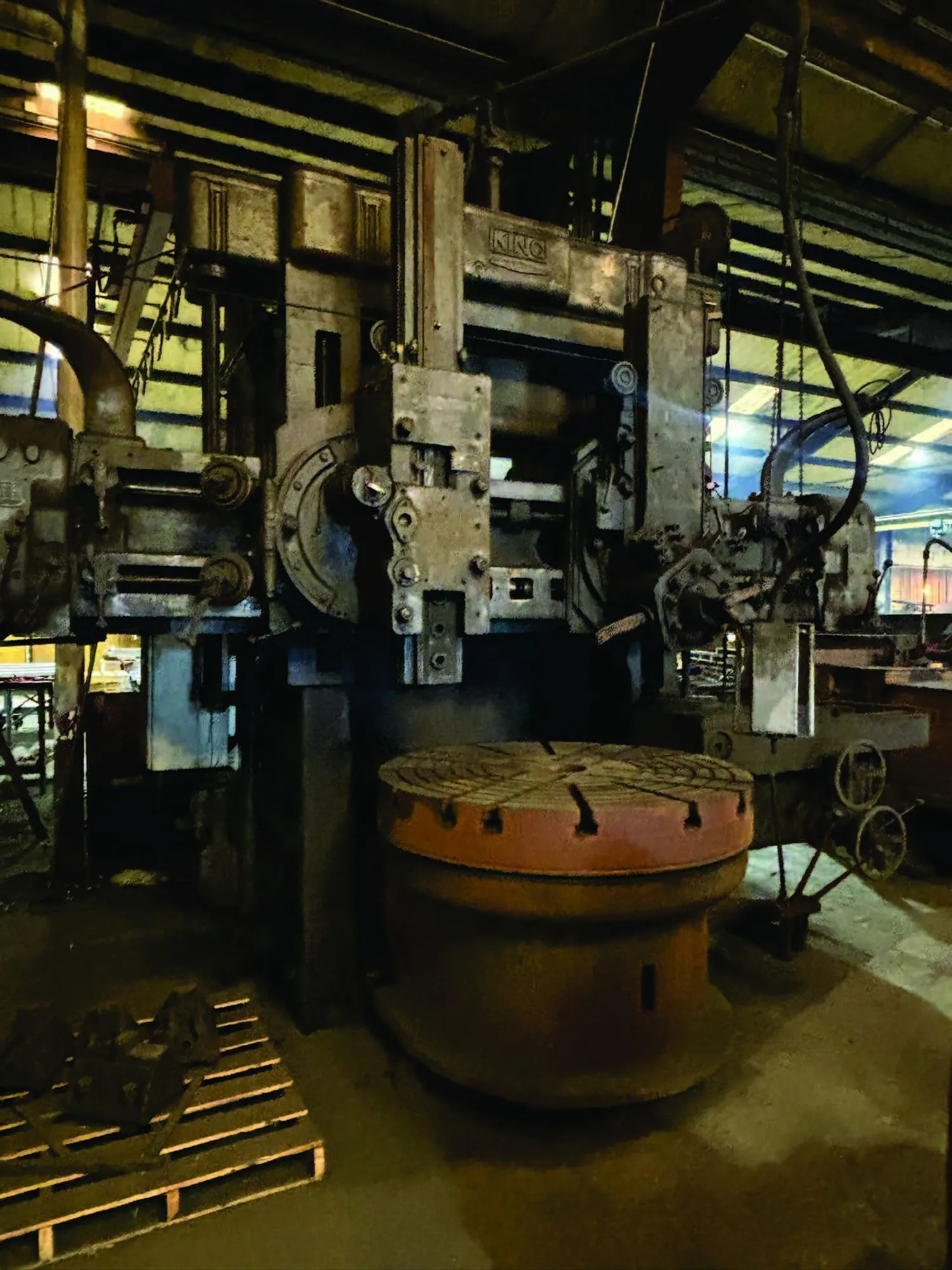

USED KING 52" VERTICAL BORING MILL
Overview
Description
King 52" Vertical Turning & Boring Machine with Two Swiveling Rams, 52" Face Plate, 5 Position Turret
Specifications
| Table Dia | 52" | 1,320.8 mm |
|---|---|---|
| Swing | 60" | 1,524 mm |
| Work Ht-U/R | 36" | 914.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 151 RPM | 151 RPM |
| Dimensions | 11' L x 12.5' W x 126" H | 11' L x 12.5' W x 126" H |
TABLE DIAMETER.................... 52"
MAX. SWING........................ 60"
MAX. HEIGHT UNDER RAIL............ 36"
MAIN MOTOR........................ 40 HP
RAM STROKE........................ 30"
TURRET STROKE..................... 30"
TABLE SPEEDS (16)................. 4.84 - 151 RPM
THREADING......................... 2 - 18 TPI
FEEDS (12)........................ 0.003 - 0.125
CROSS FEEDS....................... 0.010 - 0.500
APPROX. WORKING HEIGHT............ 13'
APPROX. FLOORSPACE REQUIRED....... 14' W x 11' D
APPROX. SHIPPING DIMENSIONS....... 11' L x 12.5' W x 126" H
Equipped With
2-SWIVELING RAMS
PENDANT CONTROLS
52" FACE PLATE
LEFT HAND SWIVELING RAM
RIGHT HAND SWIVELING TURRET HEAD
SIDE HEAD
RAPID TRAVERSE
5 POSITION TURRET
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
