| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 12' | 3.7 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 0.5 hp | 0.4 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |

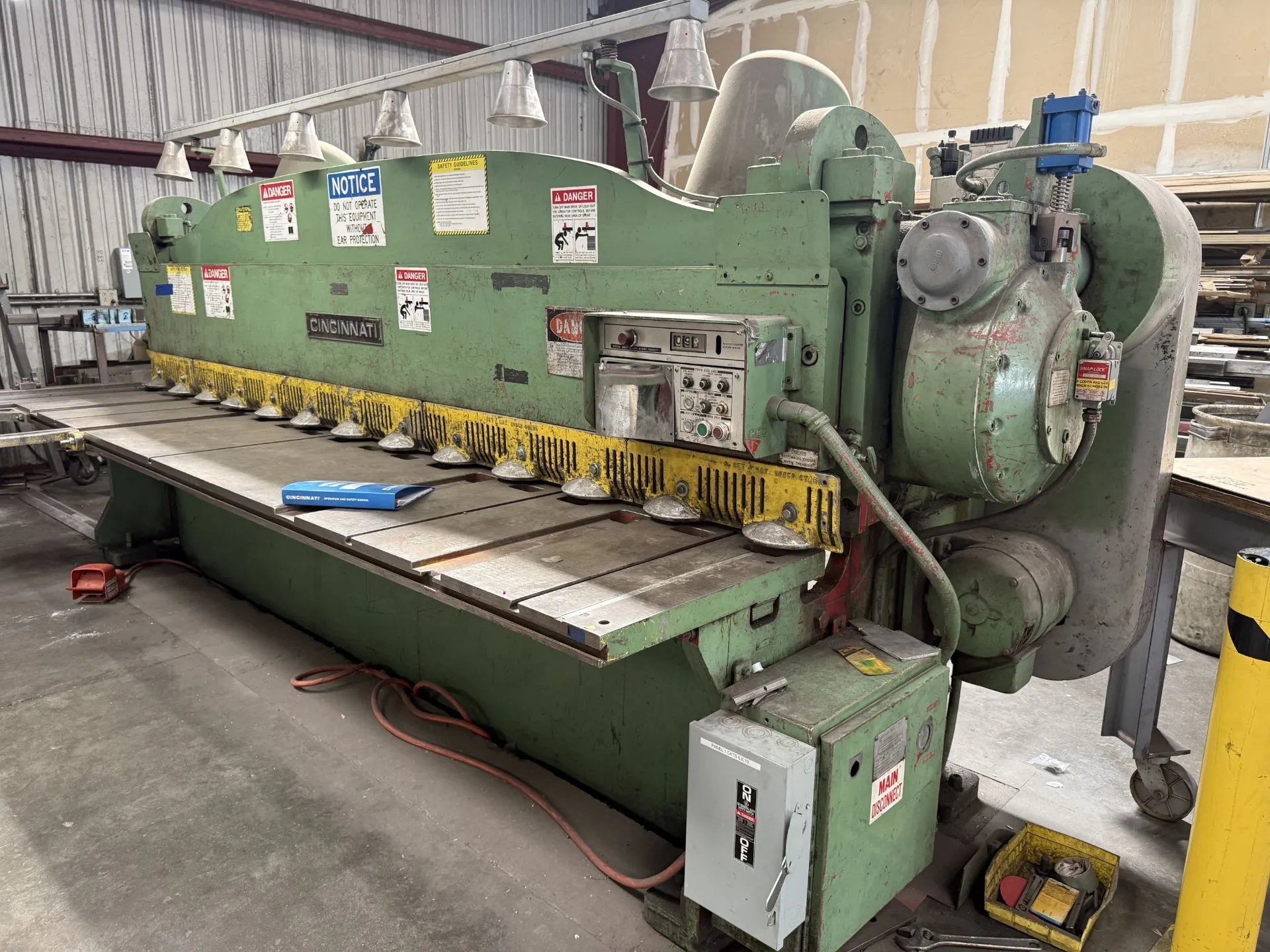

Brand: Cincinnati
Model: 2CC12
Type: Mechanical Power Squaring Shear
Capacity: 1/4" (0.25") thick mild steel
12 ft (144") long.
Strokes Per Minute (SPM): 60.
Back Gauge: 0 - 48" (Power Operated).
Rake Taper: 1/4" per foot (adjustable).
Hold Downs: 13 Hydraulic Hold Downs, 8 Tons Force.
Throat Depth: 4 inches.
Motor: 15 HP (typically 460V/3PH).
Blade Size: Approx. 1" x 3" x 146".
Features: Power back gauge, squaring arm, foot switch, air-electric jaw clutch, automatic lubrication.
Weight Approx: 22,000 lbs
TERMS:
Location San Francisco, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
