NEW NILES-SIMMONS N50 MC

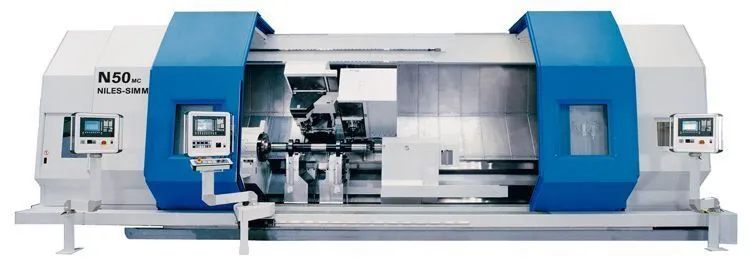

Niles-Simmons Turn & Mill Center N50 MC

- Flexible complete machining with incremental turning lengths up to 7,500 mm with one or two independent
machining modules
- A variety of internal machining capabilities with separate boring slide
stationary or NC adjustable boring bars
automatic boring bar change from separate
8 pocket/16 pocket boring-bar magazine
boring bars with / without head change
30kN boring quill, optionally reversible by 180°
- NC internal turning head with a travel of 60 mm (D‘Andrea-tool)
- Optional crankshaft milling unit with large plunging depth and a maximum milling power of 73 kW
- Heavy-duty turning, drilling and milling head with a milling power of 67.4/80 kW
- Separate vertical 64 kW rough milling unit with Y‑axis and self-contained tool magazine
