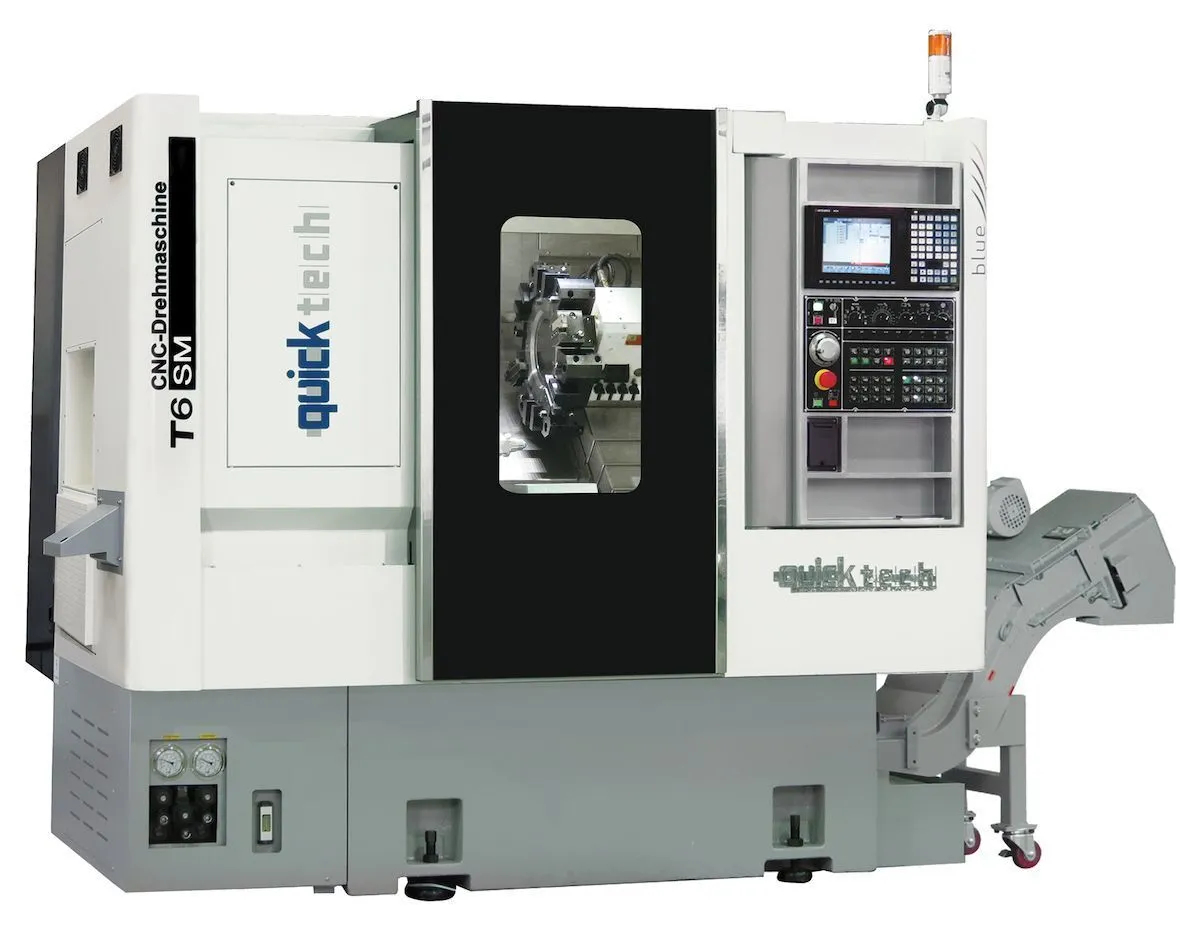

NEW QUICKTECH T6 Mill

The Quicktech T6 Series combines precision, rigidity, and efficiency in a compact horizontal slant-bed design. Available in 2-axis (T6 Compact) and 3-axis (T6 Mill) configurations, these high-performance turning centers deliver exceptional accuracy and productivity in a small footprint. Each machine is cast from high-quality Meehanite iron and engineered with a one-piece 45° slant bed for outstanding rigidity and vibration control. Ideal for automotive, medical, electronics, and general job-shop manufacturers, the T6 Series offers superior performance and value compared to competitors such as Haas, Doosan, DMG Mori, and Mazak.

Key Features
- Compact 45° Slant-Bed Construction: Maximizes rigidity, chip evacuation, and operator accessibility while minimizing floor space requirements.
- Heavy-Duty Meehanite Cast Frame: One-piece casting resists thermal deformation and dampens vibration for precision turning and milling.
- High-Torque Main Spindle: 15 HP spindle with 1.65″ (42 mm) bar capacity and up to 6,000 RPM for smooth, efficient material removal.
- Advanced Tooling System:

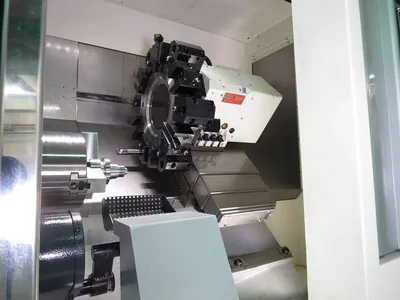

Equipped with a rigid 12-station BMT-55 servo turret featuring fast servo indexing and hydraulic clamping for outstanding repeatability and stiffness.
On the T6 Mill, all 12 stations are live-tool capable, powered by a 5 HP spindle motor for accurate milling, drilling, and tapping operations.
- Rigid tapping comes standard on live-tool models, while both configurations support a wide variety of OD and ID static tools for turning applications.
- Precision Linear Motion System: Oversized 35 mm roller-type linear guideways and pre-tensioned 32 mm ballscrews ensure smooth, backlash-free axis travel.
- Tailstock for Support and Stability: Hydraulic programmable quill provides reliable part support during longer workpiece operations.
- Advanced CNC Controls: Standard Mitsubishi M80A with 10.4″ touchscreen and optional Fanuc Oi-TF Plus with Manual Guide i for flexible programming and diagnostics.
Production-Ready Configuration: Includes 6″ hydraulic chuck, chip conveyor, parts catcher, coolant pump, and bar feeder interface for seamless automation integration.
