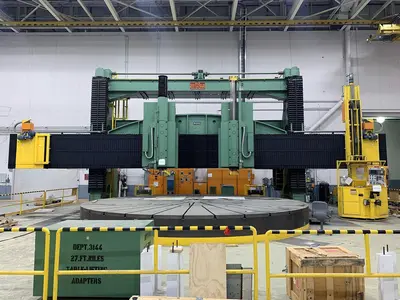

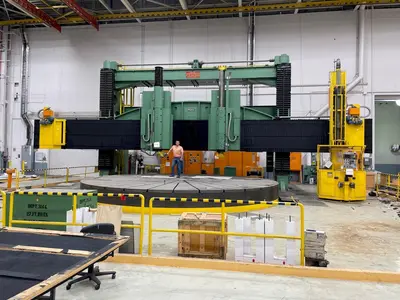

USED 1994 NILES VBM 27

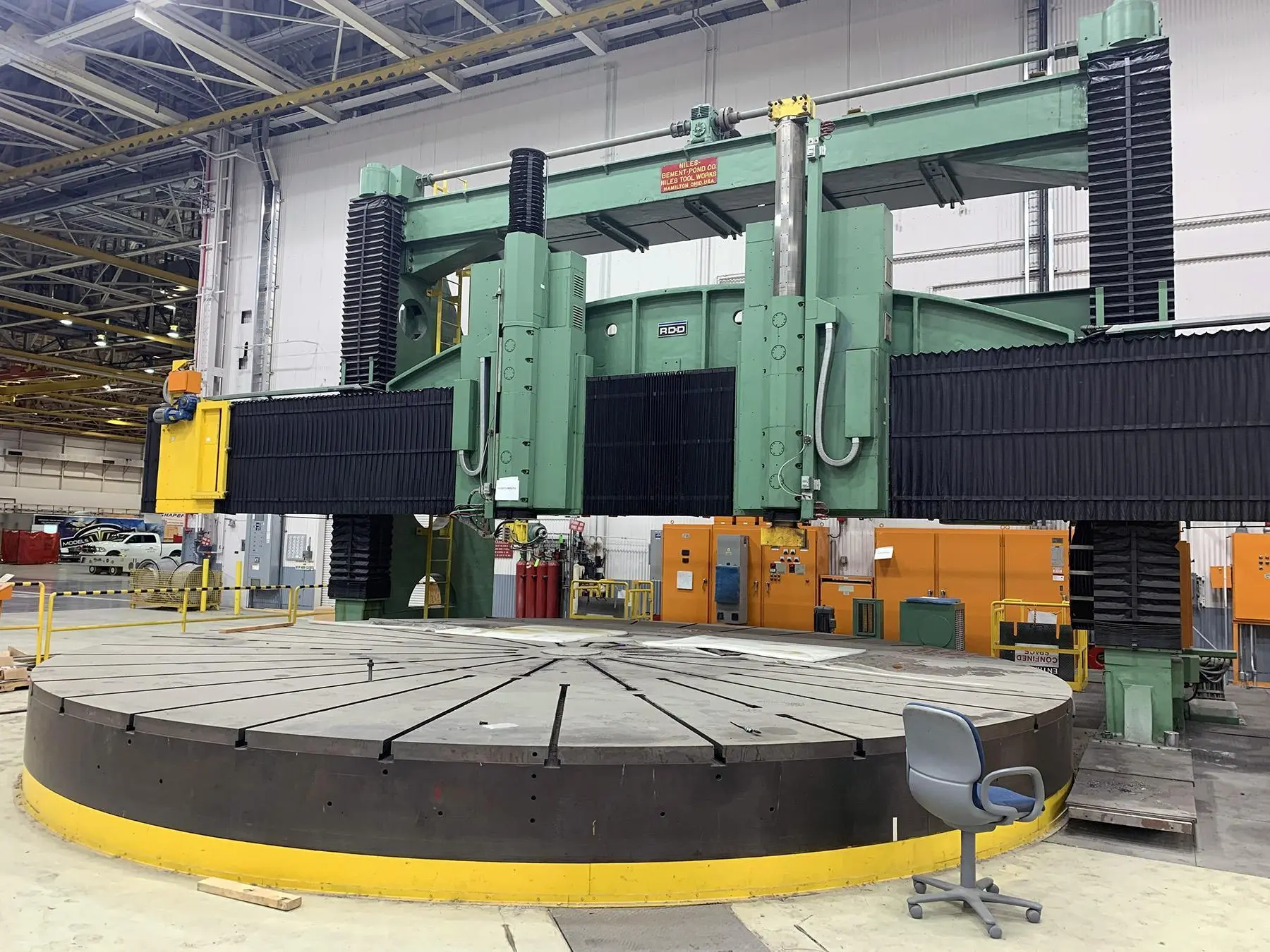

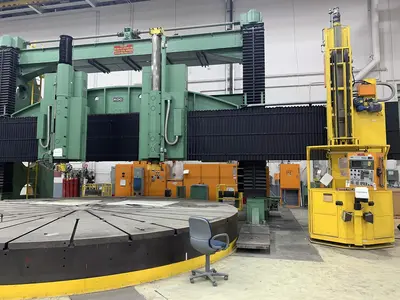

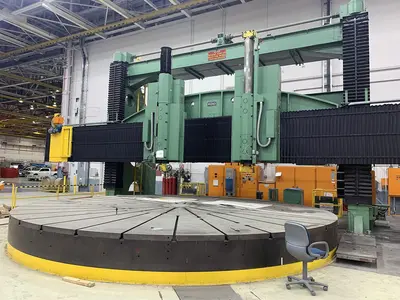

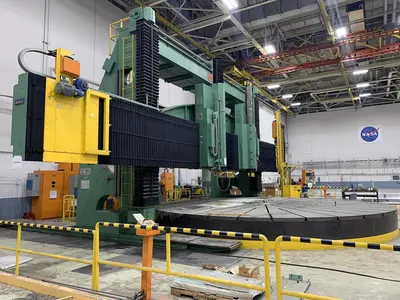

USED, 504" (42') DORRIES SCHARMANN (RD&D) CNC VERTICAL BORING MILL WITH LIVE TOOL

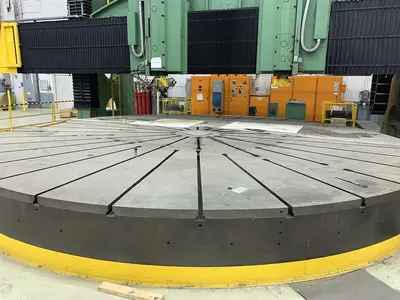

TABLE DIAMETER: 27'
SWING
COLUMNS FORWARD: 28'
COLUMNS RETRACTED: 42'
TABLE SPEEDS
LOW RANGE: 0.01 - 2.44 RPM
HIGH RANGE: 0.02 - 6.00 RPM
TORQUE
LOW RANGE: 1,089,200 FT-LBS AT 0.01 - 0.60 RPM
HIGH RANGE: 435,750 FT-LBS AT 0.02 - 1.50 RPM
TABLE MOTOR: 125 HP
TABLE LOAD CAPACITY: (300,000 LBS. (EVENLY DISTRIBUTED)

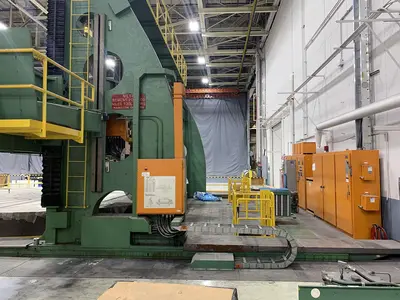

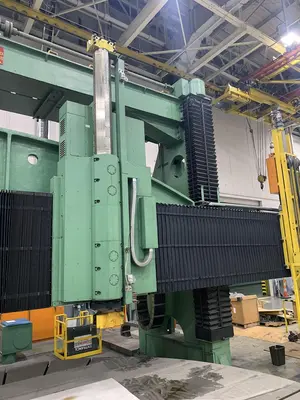

COLUMN
HOUSING TRAVEL: 165"
DRIVE MOTOR: 15 HP
TRAVERSE RATE: 23 IPM
ATTITUDE ADJUSTMENT: +/- 0.001" - 0.125"

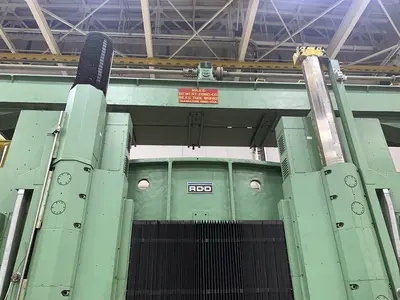

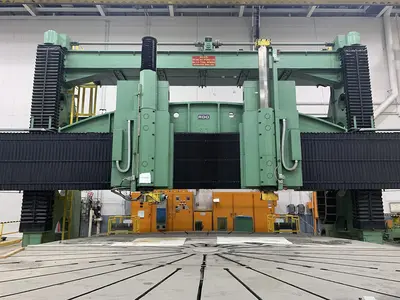

CROSSRAIL
HEIGHT UNDER RAIL: 20" - 140"
RAIL VERTICAL TRAVEL: 117"
DRIVE MOTOR: 25 HP
TRAVERSE RATE: 14 IPM
LEVEL ADJUSTMENT (MANUAL): +/- 0.001" - 0.125"
SADDLE
CROSS TRAVEL (EACH SIDE): 221.0"
FEED RATES: 0.005 - 1.125 IPR
RAPID TRAVERSE: 29.5 IPM
MAXIMUM FEED FORCE: 30,000 LBS.

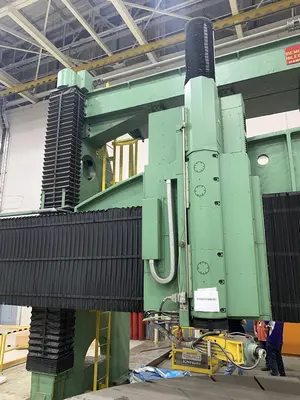

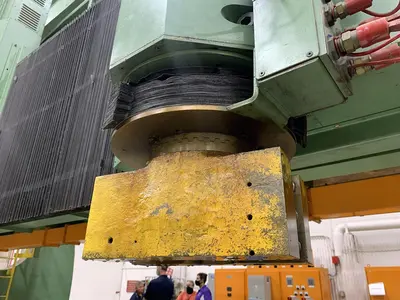

RAM
TRAVEL LEFT: 84"
TRAVEL RIGHT: 67"
CLEARANCE UNDER RAM (TOOL REMOVED): 130"
FEED RATES: 0.005 - 1.125 IPR
RAPID TRAVERSE: 29.5 IPM
MAXIMUM FEED FORCE: 15,000 LBS.
MAXIMUM REACH OF RAM FROM TABLE: 290"

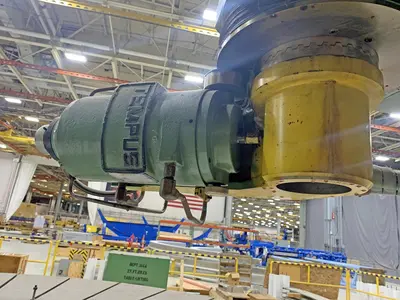

ROUTERS
TYPE: TEMPUS# CT55
POWER: 20 HP
SPEEDS: 7100 - 14,200 RPM
TOOL HOLDERS: 3/4" AND 2" (SQUARE SHANK)

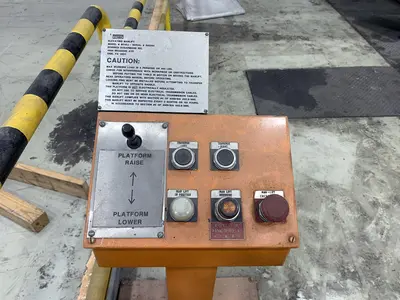

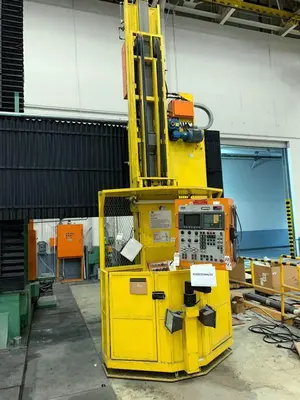

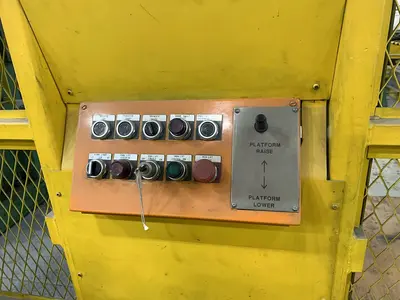

OPERATOR PLATFORM
CAPACITY: 500 LBS.
HORIZONTAL TRAVEL RATE (VAR. AC): 20 - 200 IPM
VERTICAL TRAVEL RATE (FIXED PNEUMATIC): 80 IPM

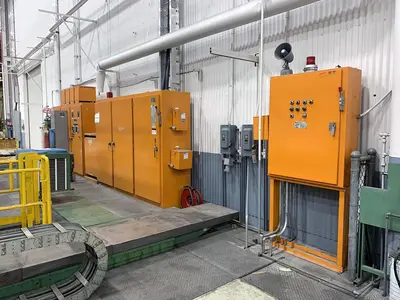

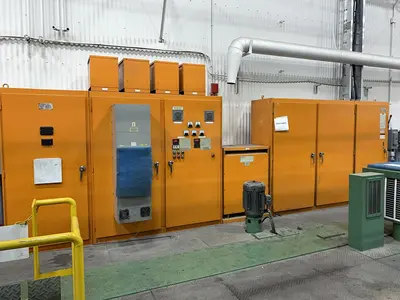

ELECTRICAL: 460V/3P/60HZ/520A

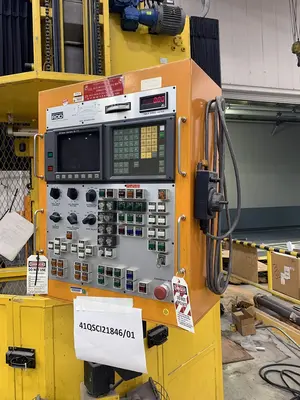

GE FANUC TTA CNC CONTROL

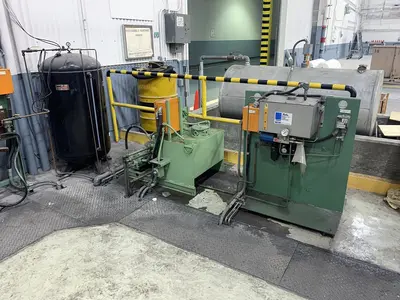

HYDROSTATIC MAIN BEARING
DIRECT CURRENT PRIME MOVER

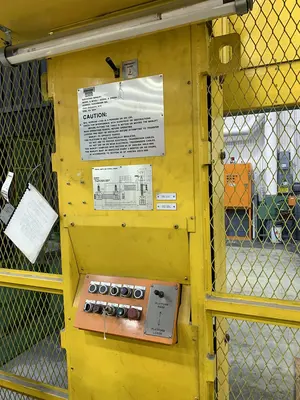

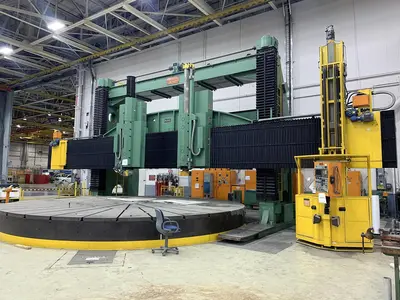

OPERATOR CAB WITH POWER VERTICAL AND HORIZONTAL MOVEMENT
ADJUSTABLE ANGLE MILLING HEADS - CAN BE LOCATED AT BOTTOM OF EITHER RAM OR TOP OF RIGHT HAND RAM.

NOTES:

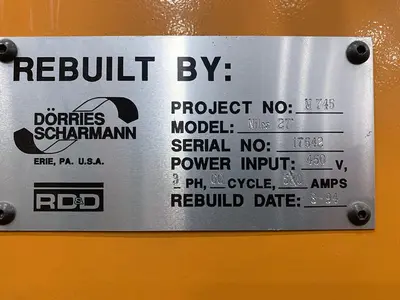

*RE-ENGINEERED AND REBUILT BY RD&D - DIVISION OF DORRIES SCHARMANN 1994

**MACHINE SHOWS LIKE BRAND NEW

***1278 TABLE HOURS SINCE REBUILD
