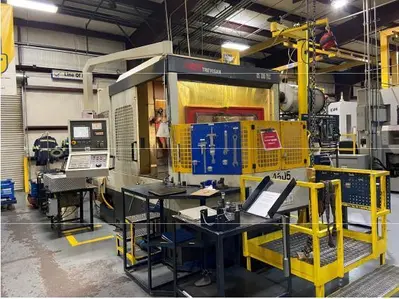

USED 2005 TREVISAN DS300/70C
Overview
USED, GT TREVISAN MODEL DS300/70C 6 AXIS CNC HORIZONTAL MACHINING AND TURNING CENTER
Specs

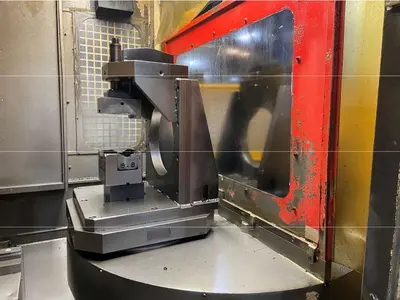

PALLET SIZE: 23.6" X 23.6"
NUMBER OF PALLETS: 2
PALLET ROTATION: 180 DEG. (CONTROLLED THROUGH CNC SYSTEM)
MAXIMUM WEIGHT ON PALLET: 1980 LBS.
X AXIS TRAVEL: 27.5"
Y AXIS TRAVEL: 22.2"
Z AXIS TRAVEL: 23.6"

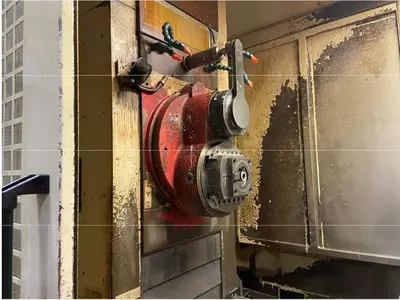

CNC BORING AND CONTOURING HEAD (U-AXIS CROSS SLIDE)
HEAD DIAMETER: 11.8"
U AXIS STROKE: 2.8"
SPEED RANGE (CONSTANT 25 HP): 240 - 750
MAXIMUM TURNING DIAMETER: 13.8"
STANDARD BORING SPINDLE (W/ BUILT-IN U AXIS DRIVE FOR CHANGEABLE CONTOUR HEAD)
SPINDLE DIAMETER: 5.1"
CONSTANT 25 HP
LOW GEAR SPEED RANGE: 0 - 25 - 750 RPM
HIGH GEAR SPEED RANGE: 0 - 750 - 2800 RPM
CHANGEABLE CONTOUR HEAD U AXIS STROKE: 1.2"
COOLANT THROUGH SPINDLE

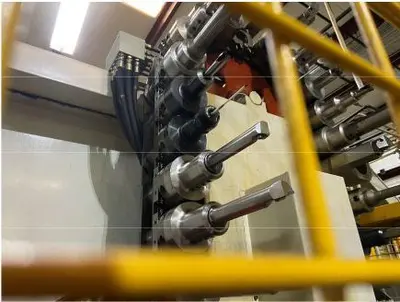

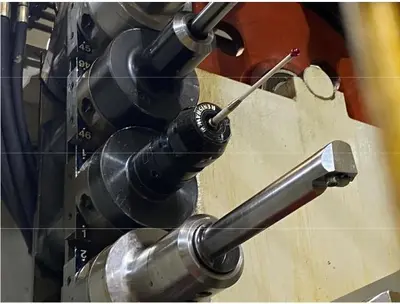

TOOL CHANGER
33 POSITIONS
MAXIMUM TOOL LENGTH: 153.7"
MAXIMUM TOOL WEIGHT: 66 LBS.
OAD (APPROXIMATE): 270" X 122" X 116.5" HIGH
MACHINE WEIGHT (APPROXIMATE): 33,000 LBS.
Equipped With

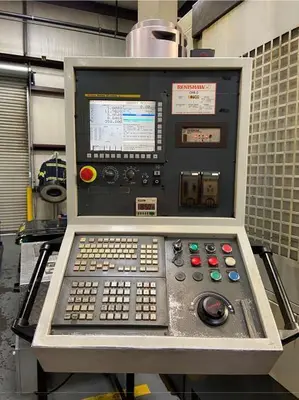

FANUC 31i CNC CONTROL

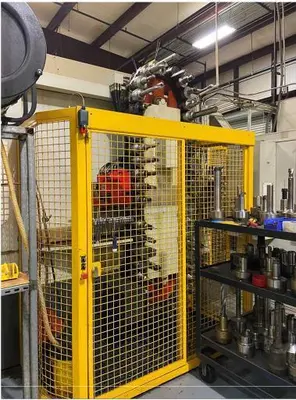

33 POSITION ATC
30 TG2000 TOOL HOLDERS

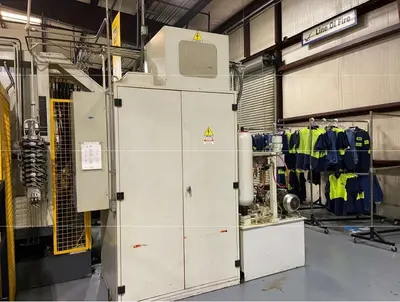

HYDRAULIC SYSTEM
CENTRAL LUBRICATION SYSTEM
COOLANT SYSTEM
REAR DISCHARGE CHIP CONVEYOR
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
