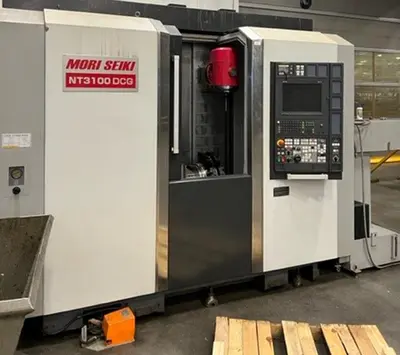

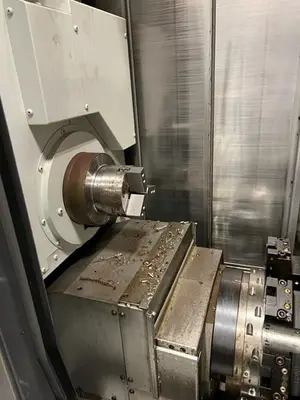

USED 2005 MORI SEIKI NT3100/500CZ

USED, MORI SEIKI NT3100/500CZ CNC TURNING CENTER WITH LIVE TOOLING / MILLING

MAXIMUM TURNING DIAMETER: 24"
MAXIMUM TURNING LENGTH: 20"
DISTANCE BETWEEN CENTERS: 20"
X-AXIS TRAVEL: 27"
Z-AXIS TRAVEL: 22"
BAR CAPACITY: 1.92"
SPINDLE 1 SPEEDS: 6000 RPM
SPINDLE 1 OUTPUT: 10/7.5 HP
SPINDLE 1 BORE: 1.92"

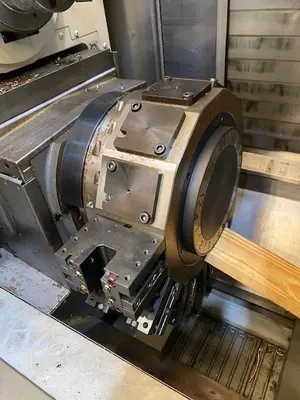

TURRET 1 Y-AXIS: PROVIDED
TURRET 1 MILLING FUNCTION: PROVIDED
TURRET 1 ROTARY TOOL SPINDLE OUTPUT: 7.5/3 HP
TURRET 1 B-AXIS INDEX ANGLE: 240 DEG.

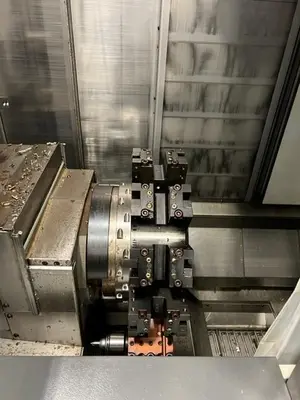

TURRET 2: PROVIDED
TURRET 2 TOOL STATIONS: 12
LIVE MILLING SPEEDS: 12,000 RPM
TURRET 2 SPINDLE OUTPUT: 7.5/5 HP
TOOL STORAGE CAPACITY: 20

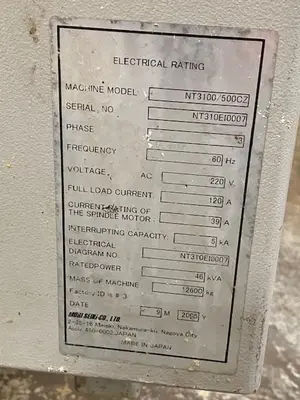

POWER: 220V / 3P / 60 Hz
MACHINE OAD (APPROXIMATE): 115" X 115" X 100" HIGH (+4" FOR LEVELING PADS)
CONVEYOR OAD (APPROXIMATE): 110" X 55" X 60" HIGH
CRATE WITH LEVELING PADS AND FOOT SWITCH: 24" X 24" X 16" HIGH
MACHINE WEIGHT (APPROXIMATE): 28,000 LBS.

FS-31iA5 (MAPPS 3) CNC CONTROL
C-AXIS
Y-AXIS
LIVE TOOLING / MILLING
B-AXIS

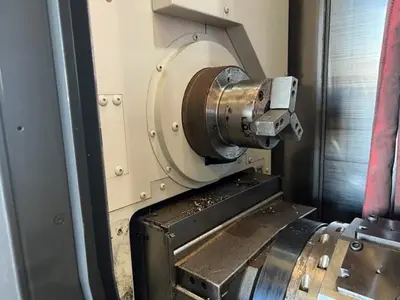

5" KITIGAWA B205A521 CHUCK (SPINDLE 1)
TAILSTOCK
CHIP CONVEYOR
COOLANT SYSTEM
COOLANT THROUGH SPINDLE

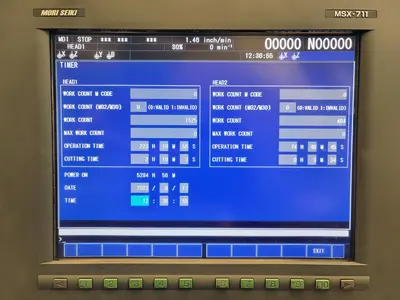

NOTE: MACHINE FROM A COLLEGE SETTING. HAS ONLY RUN A FEW PARTS, ONLY 2 HRS 19 MIN CUTTING TIME ON MACHINE
