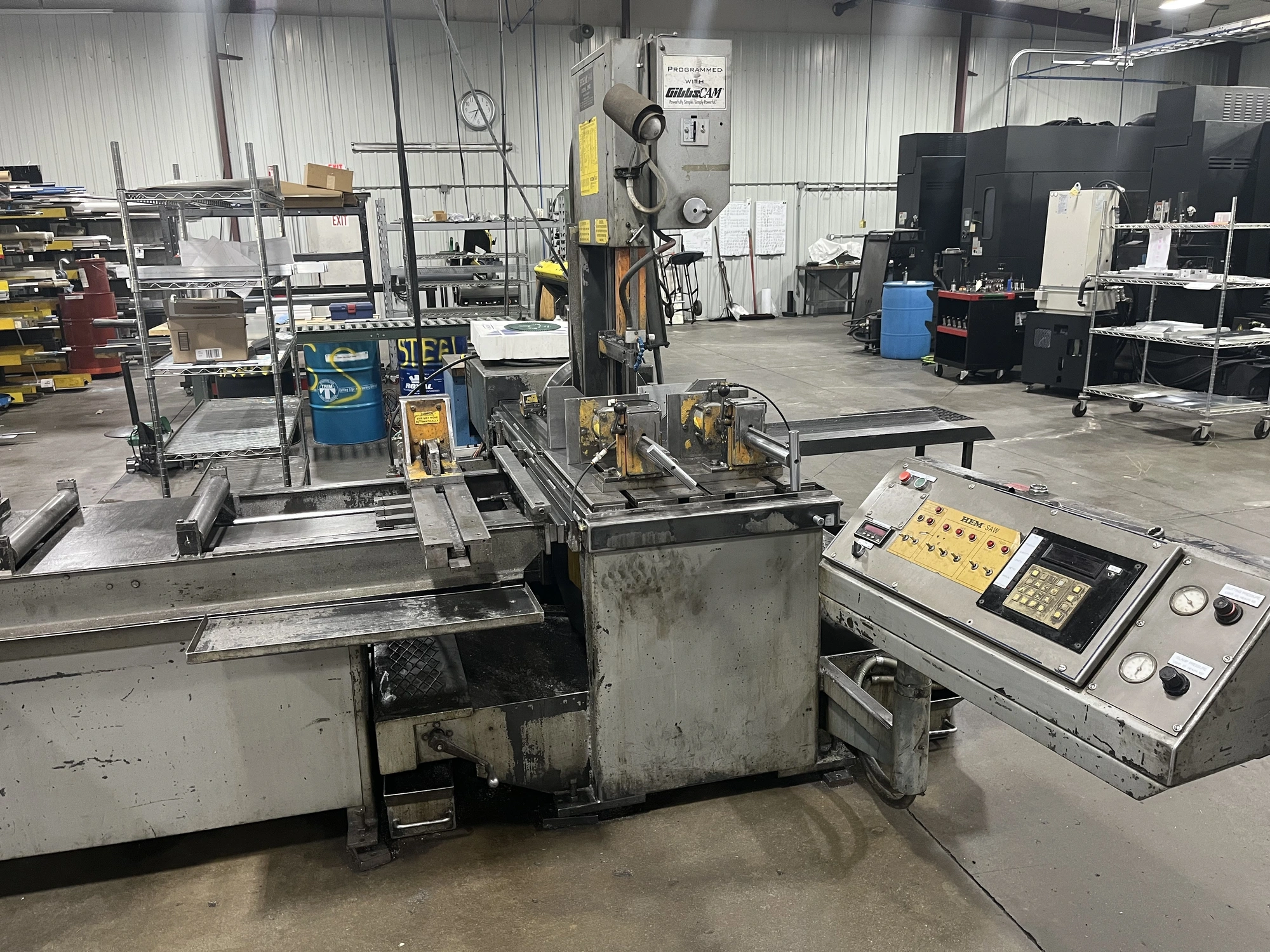

1995 HEM V100LA-2 A/F Fully Automatic Vertical Band Saw
| Throat | 18" | 457.2 mm |
| Work Height | 22" | 558.8 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 0" | 0 mm |
| Blade Length | 14.3' | 4,358.6 mm |
| FPM | 300 | 300 |
| Dimensions | 132" x 104" x 86" | 132" x 104" x 86" |
| Weight | 5,500 LBS | 5,500 LBS |
Throat Depth........................18"
Capacity, 90 Degree.................18" x 20"
Capacity, 45 Degree, Left...........18″ x 14″
Work Height Capacity, Maximum.......22"
Maximum Tilt, Left & Right..........45 Degrees
Blade Drive Motor...................5 HP
Blade Speed, Variable...............60-300 SFPM
Blade Size..........................1-1/4″ x 14’-3" x 0.42"
Feed, One Stroke....................0" – 24"
Number of Strokes...................2 x 24" = 48"
Air Requirements....................80 PSI
Electrics...........................220V / 60HZ / 3PH
Floor Space.........................132" x 104" x 86"
Weight..............................5,500 LBS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
