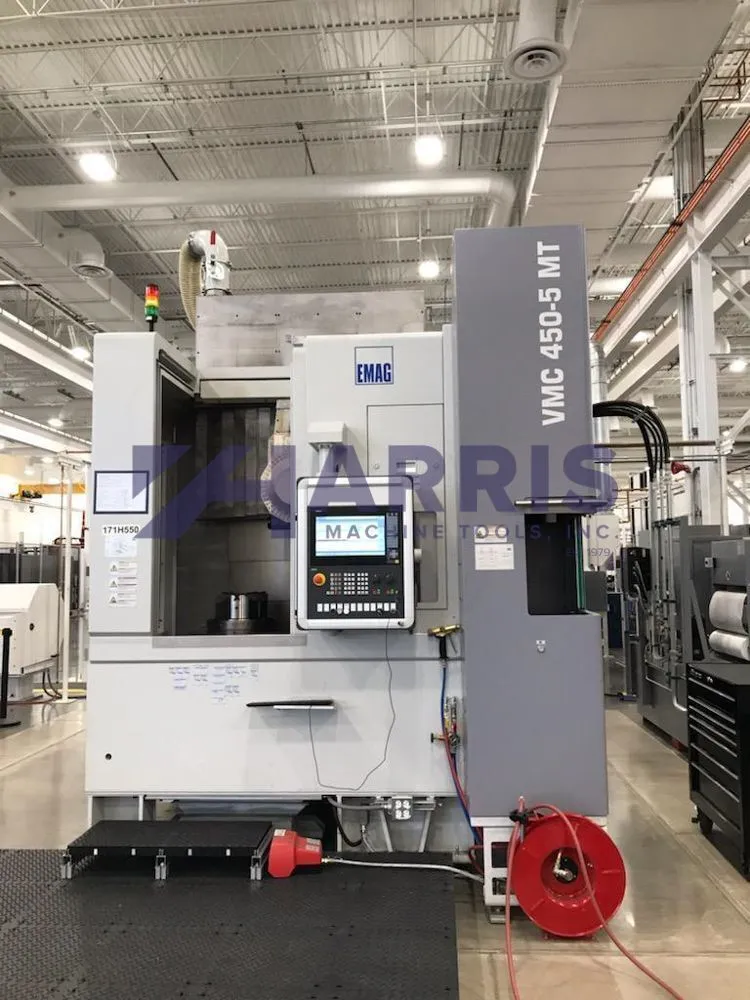

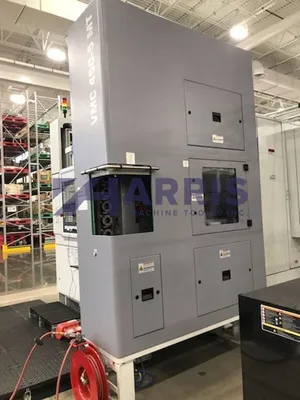

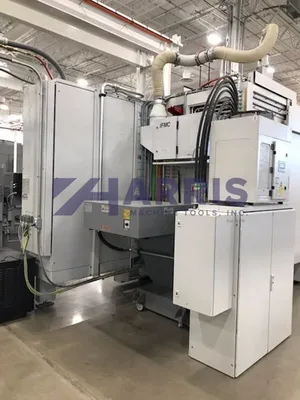

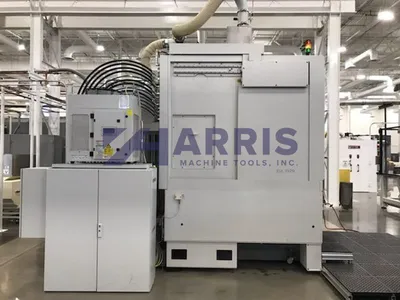

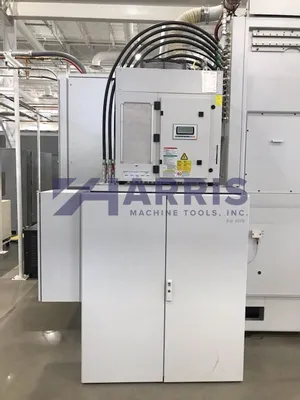

USED 2021 EMAG VMC 450-5MT
Overview
24" EMAG, 5 AXIS VERTICAL TURNING AND MILLING CENTER, VMC 450-5MT; UNUSED

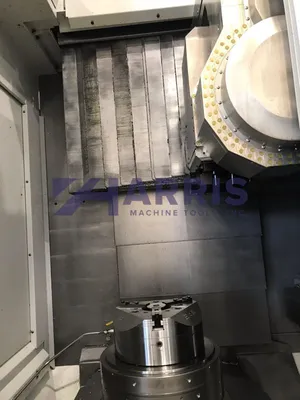

Chuck Dia.: 24"
Capacity: 1100","pounds
Max Swing Diameter: 31"
Turning Diameter: 23.5"
X-Axis Travel (Upper/Lower): 30"
Z-Axis Travel (Upper/Lower): 19"
Drive Power: 100 HP (full power at 800 RPM)
Max Spindle Speed (RPM): 2000 RPM
Z-Axis Rapid Traverse Rate: 60/30 M/Min.
Feed Force X / Z: 4 / 15 kN
Ball Screw Diameter X / Z: 40 / 50 MM
Milling Spindle Motor: 100 HP
Max Milling Spindle Speed (RPM): 7000 RPM
Milling Spindle Taper: CAPTO C8
Tool Changer Capacity: 60
Specs
CHUCK DIAMETER: 24"
MAX WEIGHT: 1100 LBS.
MAX SWING DIAMETER: 31"
MAX TURNING DIAMETER: 23.5"
X STROKE: 30"
Z STROKE: 19"
MAIN DRIVE:
POWER: 100 HP
FULL POWER AT 800 RPM
MAX SPINDLE RPM: 2,000
C AXIS POSITIONIONG TO .01MM ANGULAR DEGREES
FEED DRIVE:
RAPIDS Z / Z: 60 / 30 M / MIN.
FEED FORCE X / Z 4 / 15 kN
BALL SCREW DIAMETER X / Z: 40 / 50 MM

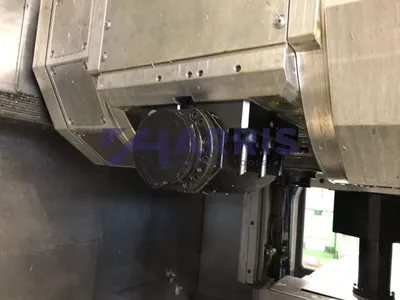

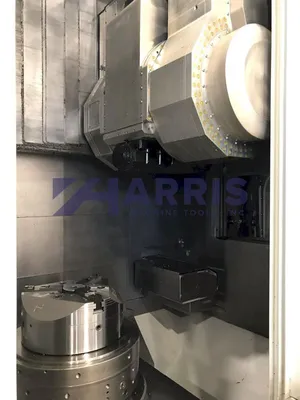

MILLING SPINDLE:
POWER: 100 HP
MAX SPINDLE SPEED: 7000 RPM
SPINDLE TAPER: CAPTO C8
TOOL MAGAZINE: 60
Equipped With
MINERALIT MACHINE BED

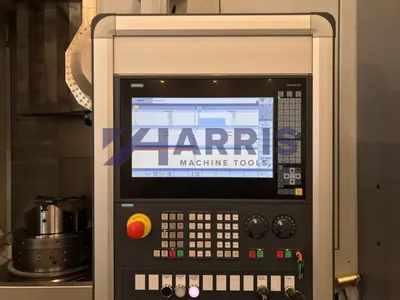

SIEMENS 840 Dsl
FULL ENCLOSURE
LEVEL PADS
TURN MILL DRIVE
EMAG WORKPIECE CORRECTION SYSTEM
EMAG OPERATING AND SETTINGS MASKS
EMAG REMOTE DIAGNOSIS
Y AXIS
B AXIS +/- 95 DEGREE
1000 PSI COOLANT THROUGH TOOL
X-AXI CLAMPING FOR GEAR TOOTH FORMING

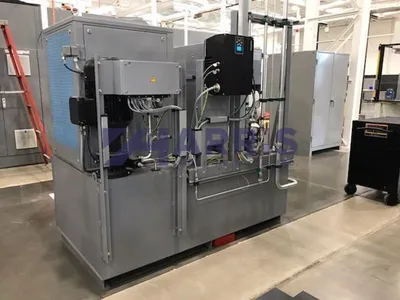

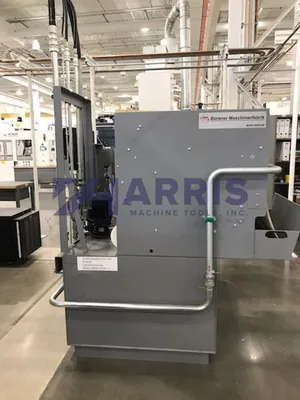

SWARF CONVEYOR, CHAIN TYPE - REAR DISCHARGE
LIFTING PUMP
PAPER FILTER
LOW PRESSURE COOLANT
HIGHT PRESSURE COOLANT 1000 PSI
PROGRAMMABLE COOLANT PRESSURE
COOLANT MIST EXTRACTOR
AIR BLAST
CHIP FLUSH
QUALITY CONTROL:
WIRELESS GAUGING
CALIBRATION BLK FOR PROBE
TOOL GAUGING - BLUM LASER
