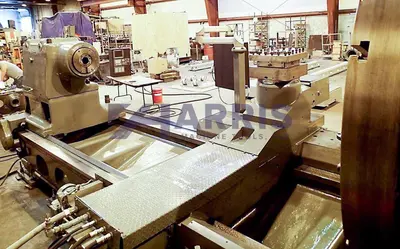

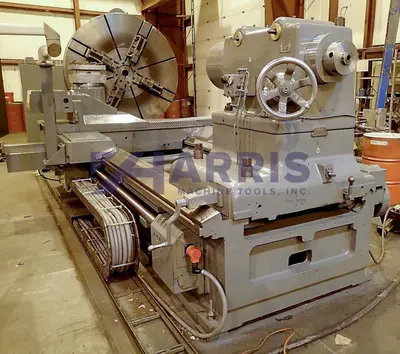

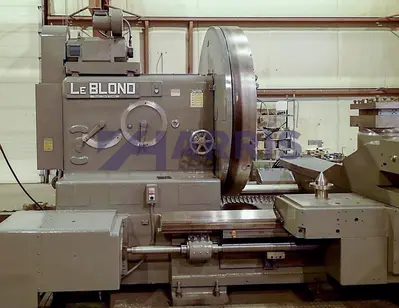

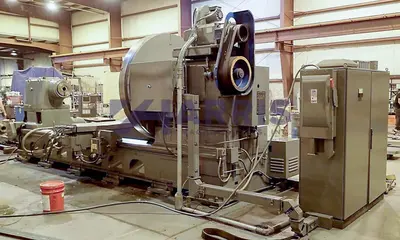

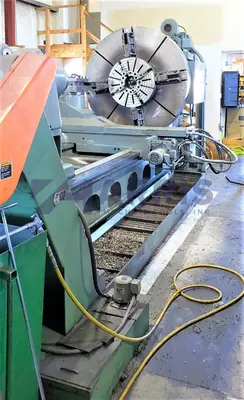

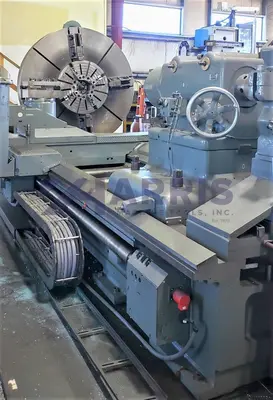

USED 2017 LEBLOND 7550 TAPE TURN

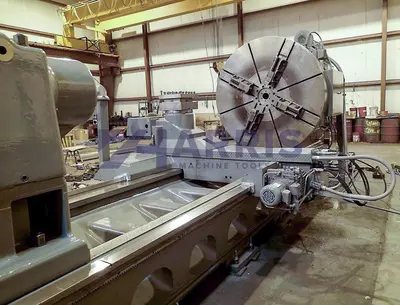

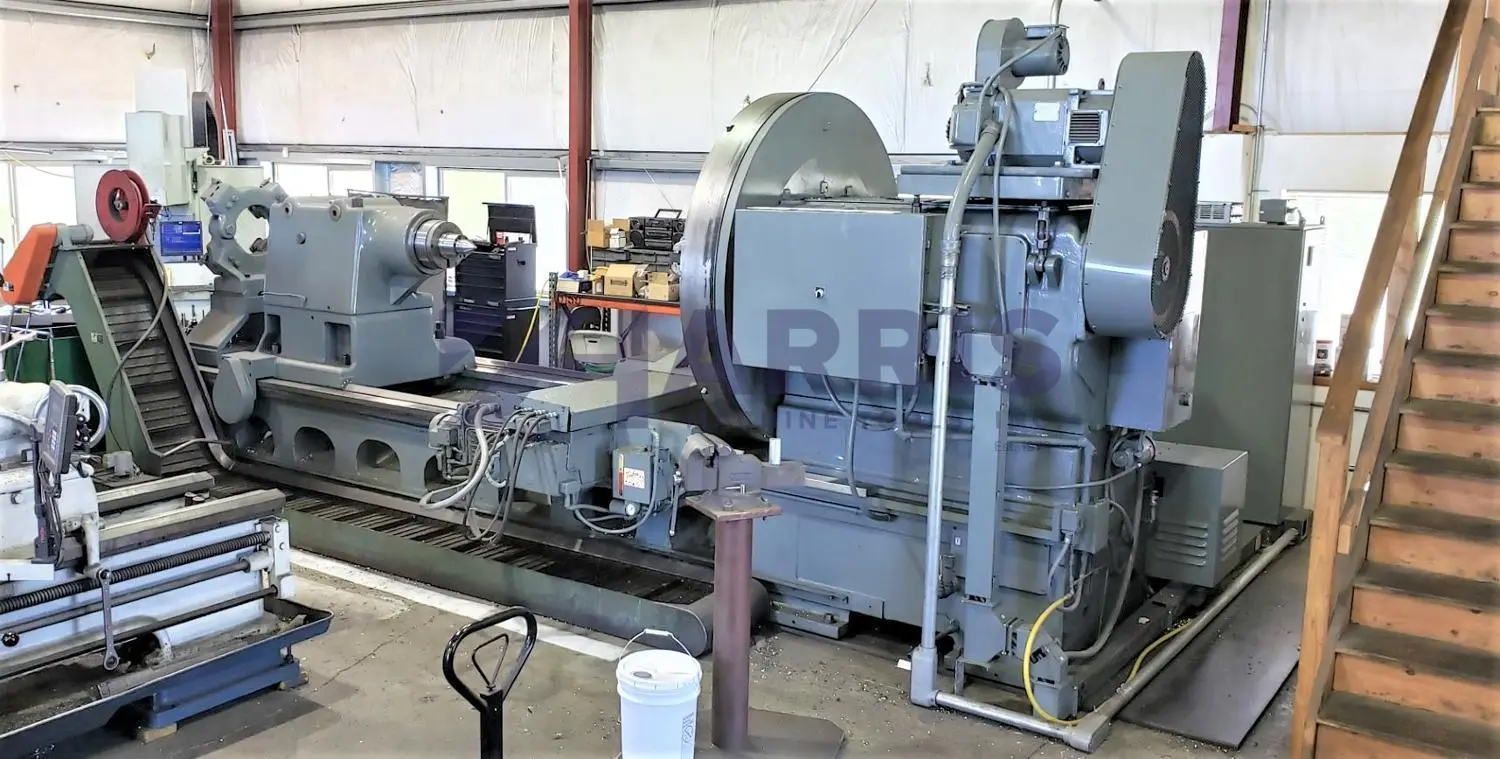

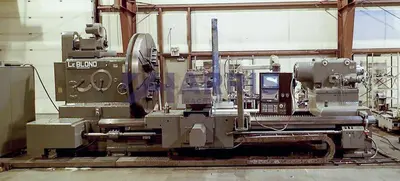

75" x 120" LeBlond Wide Bed Heavy Duty CNC Lathe

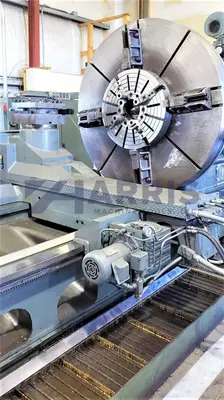

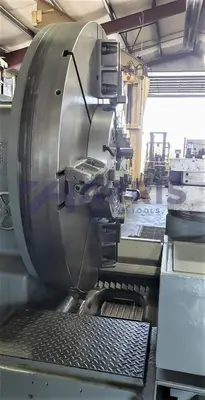

"CNC Control","yes",""; "Type of CNC Control","Fanuc 0iTD",""; "Face Plate Diameter","72","inches"; "Swing","75","inches"; "Center Distance","120","inches"; "Dimensions","343 x 112 x 116",""; "Weight","75000","pounds"; "Swing Over Cross Slide","52","inches"; "Travel-Cross","42.5","inches"; "Tailstock","Quill Diameter 12"",""; "Max Work Piece Weight","100,000lbs at 13RPM / 77,600lbs at 175 RPM / 61,500lbs at 300 RPM",""; "Bed Width","60","inches"; "Spindle Motor","80HP",""; "Spindle Speed (RPM)","300",""; "Feed Ranges","infinite up to 200 IPM",""

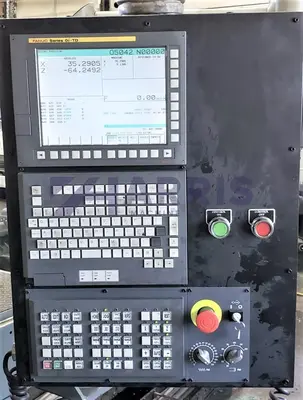

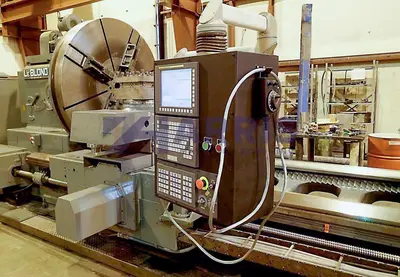

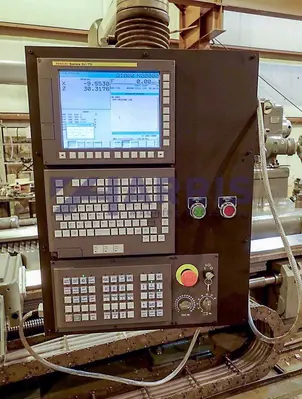

Swivel pendant control on carriage
Description of retrofit / reconditioning work performed:

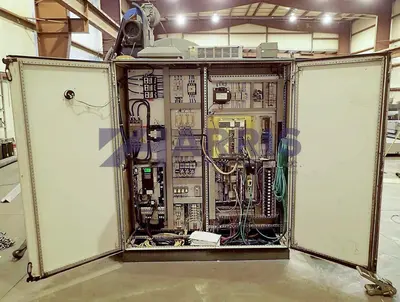

Complete new Fanuc control/servos/drives.
New Spindle Drive package.
All mechanical remanufacturing done:

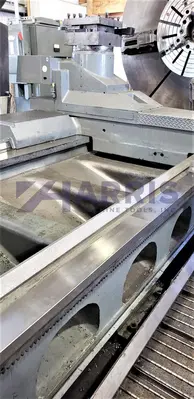

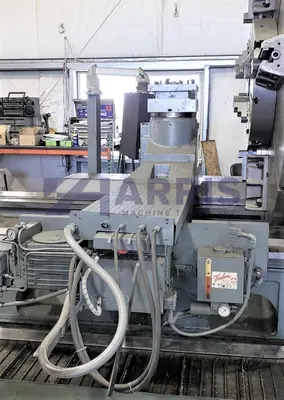

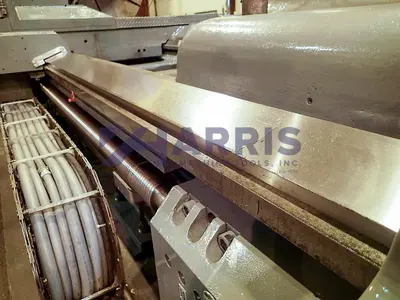

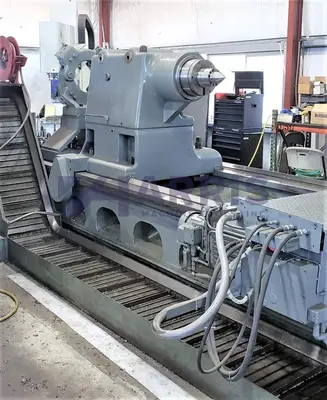

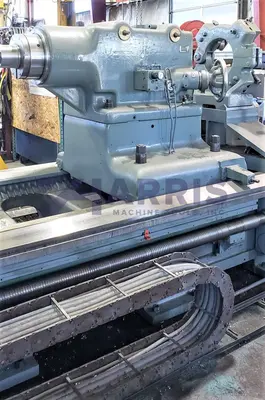

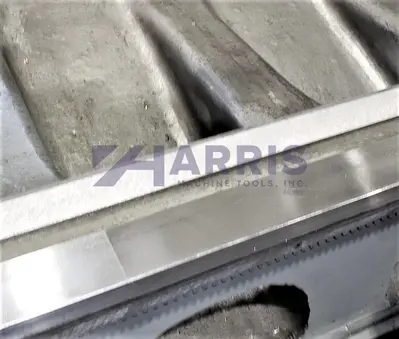

new ballscrews, ground and scraped ways, tailstock rebuilt complete, spindle head rebuilt, new bearings, etc., turret completely rebuilt, new axis and spindle feedback (absolute encoders) all new electrics and wiring warranty complete.
This is a great candidate for a roll turning application

*All specifications are subject to buyer verification.
