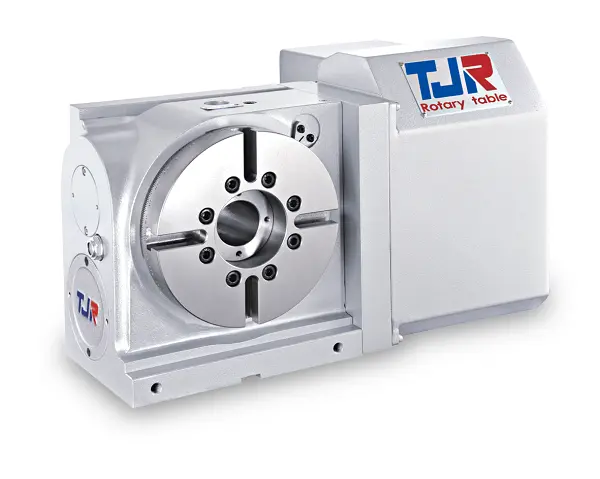

NEW TJR TJR AR Series - Right Side

TJR AR Series Right Side

The AR-Series is TJR’s standard 4th axis rotary table that is offered in multiple sizes. The models featured here are for Right hand motor mounting and range from 125mm (4.92”) to 255mm (10.03”) face plate diameter.

These rotary tables are capable of being used as a full 4th axis that is integrated into the CNC machine control or as an indexer with the use of TJR’s SAC (Single Axis Controller). These units are capable of being mounted in both the vertical and horizontal position. In addition, they are also offered Left Handed and Rear (Back) motor configuration with a powerful pneumatic braking system.

The AR series is manufactured with a radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting. The AR-Series uses a dual lead worm shaft and worm gear to ensure long term indexing accuracy in both directions.

AR-125R
AR-170R
AR-210R
AR-250R
AR-255R
