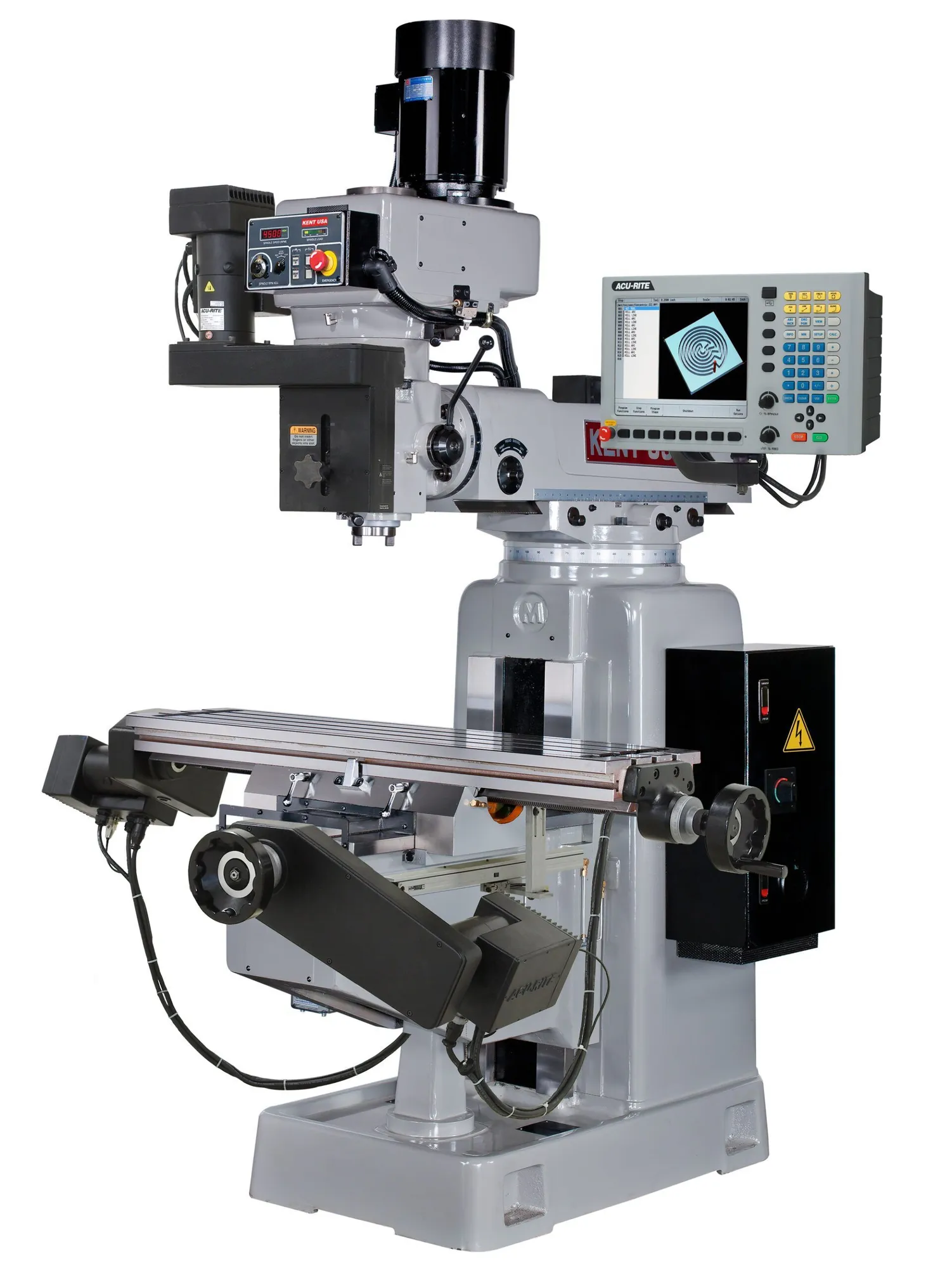

Our industry-leading CNC knee mill with the Acu-Rite MillPWRG2control brings powerful CNC capabilities to the tool room with easy-to-learn conversational programming and advanced canned cycles to empower everyone on the shop floor for greater productivity.
This versatile system can be operated manually like a full-function DRO with intelligent power feeds, or automatically with easy to use conversational shop floor programming for full CNC operations. Additionally, you can import and run G-code files from CAD/CAM programs to machine full 3D contoured parts.
These CNC knee mills are the new industry standard for ease of use, machining flexibility, and reliable performance. They are well-suited for tool rooms and job shops, from prototyping or one-offs to small and medium production runs.
Our CNC knee mills can accommodate up to 17.75″ of Z-axis travel and a maximum workpiece weight of 850 lbs. We also offer a full line of CNC Bed Mills for even higher capacities.
- 5 HP AC-Freq drive head with digital spindle RPM display and load meter
60-550-4500 spindle RPM (Hi/Low gear). Automatic spindle direction reversal when switching between high and low speed gear ranges
- 12” x 50” hardened and ground table top
- NMTB-40 spindle taper
- Automatic centralized lubrication system with metered check-valves
- Single-phase or 3-phase power without the need for a phase converter
- Hardened and Ground (Hrc-52) table surface and all slide ways
- Solid box ways on saddle and column
- Easy conversational programming, DRO-mode allows for full manual operations with built-in 3 axis absolute encoder glass scales
- Engraving feature and DXF file import capability, USB drive and 12.1” high resolution flat panel color LCD display
