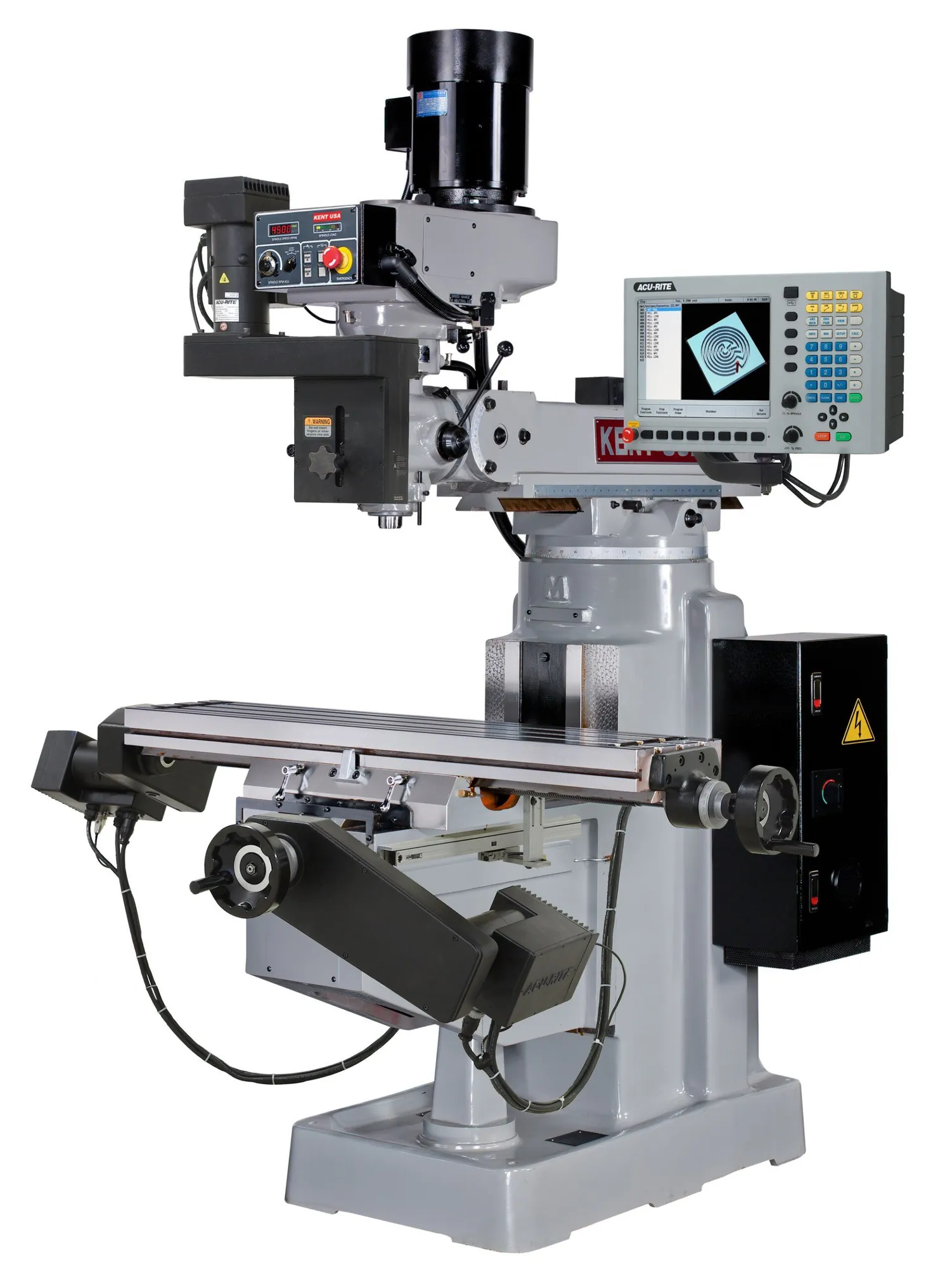

Our industry-leading CNC knee mill with the Acu-Rite MillPWRG2control brings powerful CNC capabilities to the tool room with easy-to-learn conversational programming and advanced canned cycles to empower everyone on the shop floor for greater productivity.
This versatile system can be operated manually like a full-function DRO with intelligent power feeds, or automatically with easy to use conversational shop floor programming for full CNC operations. Additionally, you can import and run G-code files from CAD/CAM programs to machine full 3D contoured parts.
These CNC knee mills are the new industry standard for ease of use, machining flexibility, and reliable performance. They are well-suited for tool rooms and job shops, from prototyping or one-offs to small and medium production runs.
Our CNC knee mills can accommodate up to 17.75″ of Z-axis travel and a maximum workpiece weight of 850 lbs. We also offer a full line of CNC Bed Mills for even higher capacities.
- 3 HP spindle motor with AC-Frequency drive, digital RPM display, load meter, and automatic spindle direction reversal when switching between high and low speed gear ranges. Can run on either single phase or 3 phase power
- 10” x 50” (Opt. 10″ x 54″) hardened and ground table top
- Table, saddle, and knee with hardened and ground dovetail ways
- Precision ground leadscrews with backlash compensating double nut
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite castings, with built in coolant reservoir in machine base
- Centralized one-shot lubrication, with metered check-valves
- Easy conversational programming, DRO-mode allows for full manual operations with built-in 3 axis absolute encoder glass scales
- Engraving feature and DXF file import capability, USB drive and 12.1” high resolution flat panel color LCD display
