USED 2001 SCHULER HZPUI-T 2500/1600
Overview
Equipped With
Preliminary Specifications

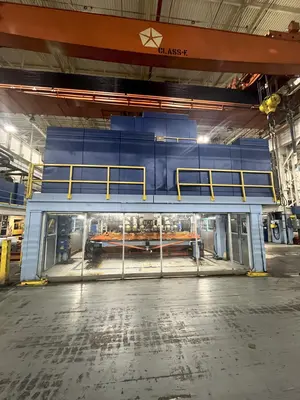

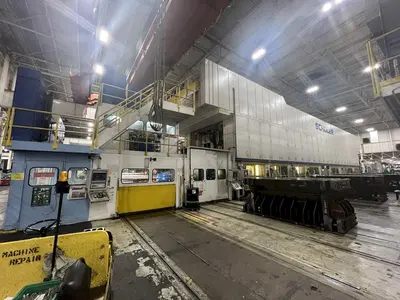

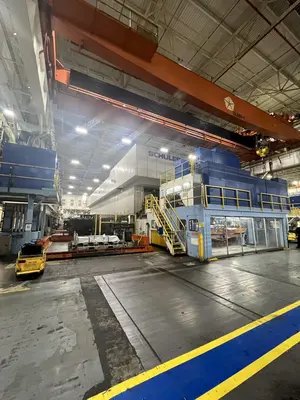

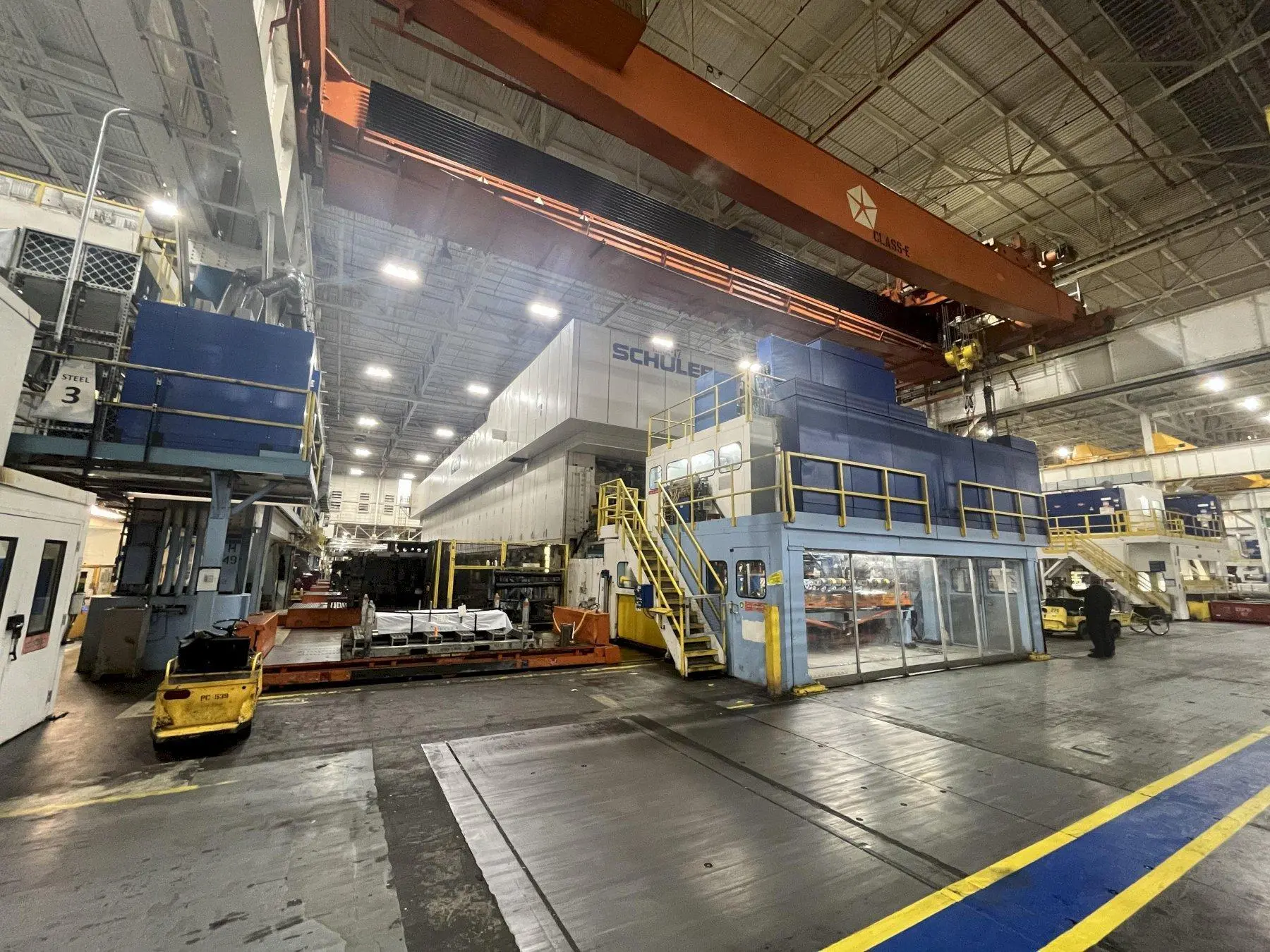

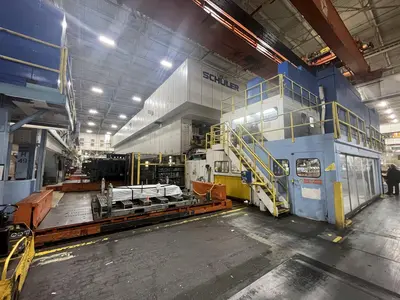

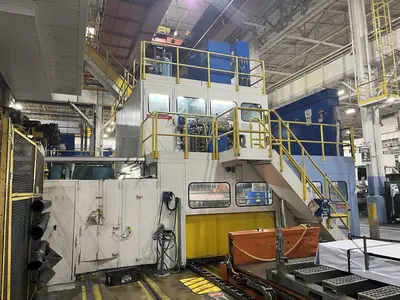

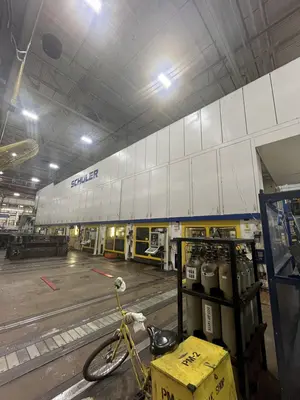

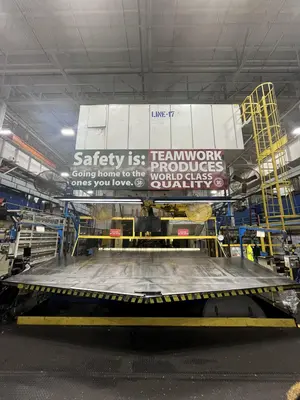

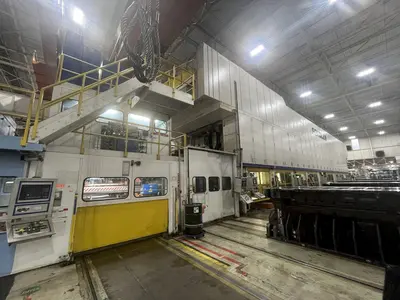

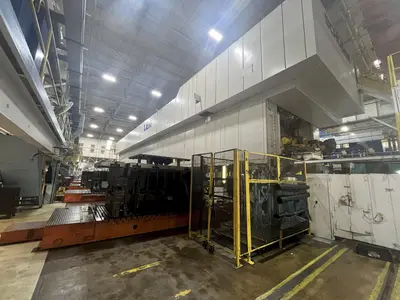

2500 Ton Schuler Model HZPUI Hydraulic Tandem Press Line - (4) 1250 Ton Schuler follow up Presses
Line consists of the following:
2500 Ton Schuler Double Action Hyd. Press w/ cushion
1600 U.S. Tons Slide Force
900 U.S. Tons Blank Holder Force
129.5 U.S. Tons Retraction Force (Slide)
46" Min Shut Height (Blank Holder to Bed)
104" Max Shut Height (Blank Holder to Bed)
65" Max Stroke (Blank Holder)
180"x 96" Bolster Area (L-R x F-B)
180" x 96" Blank Holder (L-R x F-B)
6" T-Slot Spacing
44-440 Displacement Force Bed Cushion
12" Stroke Bed Cushion
2- Rolling Bolsters

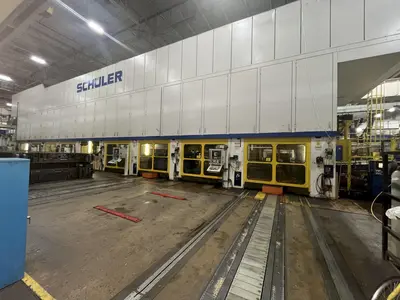

(4) 1250 Ton Single Action Straight Side Hyd. Presses
1250 U.S. Tons
146.3 U.S. Retraction Force
46" Stroke
104" Max Shut Height (Slide to bed)
65" Max Stroke
180"x 96" Bolster Area (Sliding) (L-R x F-B)
180"x 96" Slide Area (L-R x F-B)
T-Slot Spacing
Equipment & Features
Complete Running Tandem Line for Immediate Sale

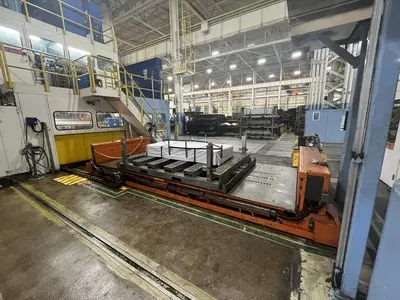

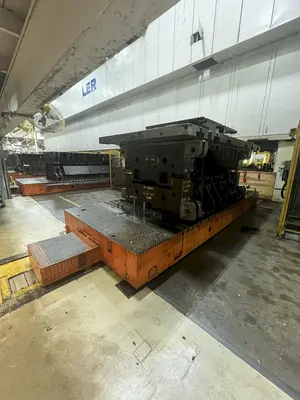

Each Press equipped with 2 rolling Bolsters

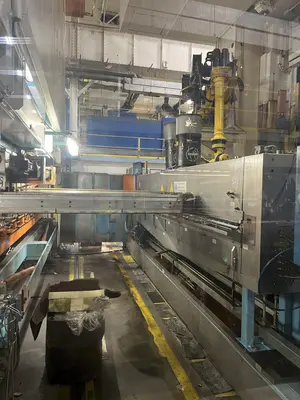

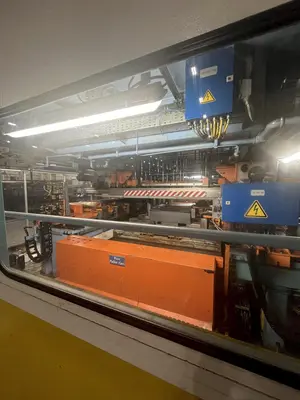

(4) Fanuc Loading Robots between each Press

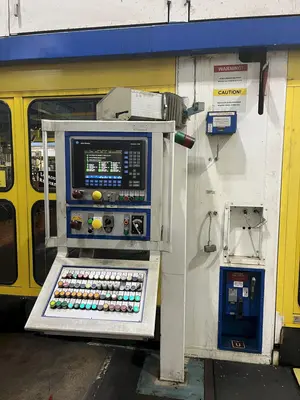

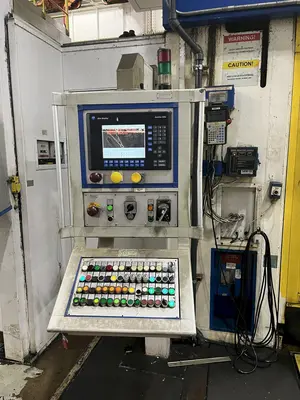

Press Control Console
IN PLANT UNDER POWER
Available for Inspection by Appointment, Available immediately
Specifications Subject To Verification; Subject To Prior Sale & Price Change
