275 Ton Seyi Model SN2-275 Double Crank Gap Frame press. New 2024 never put in service.

Specifications and Features as ordered new in 2024 never used
------------------------------------------------------------------
Seyi 275 ton Double Crank Gap Frame Press ( NEW NEVER PUT IN PRODUCTION)
-275 Tons US (250 metric) capacity
-9.84" (250mm) Stroke length
-0.28" (7mm)      Tonnage capacity rating point
-21.65"(550mm)  Die height to top of bolster (SDAU)
-4.72". (120mm)   Motorized Die Height Adjustment
-22-42  Vari speed strokes per minute
-106.30"LR X 36.22 FB(2,700 x 920mm) Bolster area T-slotted
-7.09"(180"mm) Bolster thickness
-82.68"LR X 27.56"FB (2,100 x 700mm) Slide area T-slotted
Features:
---------
-Seyi Combination Wet Clutch & Brake
-Wintriss WPC2000-S6-Press control Updated to a SEYI AB Guardlogix control system(factory)with the following features,
-Compact GuardLogix 5370 controller
-Safety CPU 1769L30ERMS
-PanelView Plus 7 series 6.5"HMI
-Encoder based press position
-Crank Angle clock display on HMI
-Press SPM display
-Point Guard Safety I/O modules
-Brake Monitor w/90 Degree Stop Test
-Eight(8) spare I/O( additional available from factory )
-Eight(8) programmable PLS
-Four(4) Misfeed Sensors(dry contact)
-Main motor,flywheelbrake,slide adjust motor,& HOLP control & monitoring
-100 JOB memory storage
-Error & Fault Messaging
-Alarm History
-Preset/total counters
QDC Control ( if necessary)
-Safety rated to SIL 3 PLe,CAT 4
-All installed and tested at factory prior to press shipment when purchased new
WIntriss Controls Shadow 9 Light Curtains for guarding front of the die area only with 32" transmitter/Receiver set,Mounting brackets and cables.
-Isolation Mounts Four(4) one set. for vibration,leveling adjustment of press.
-Toledo Tonnage Monitor 2 CH ( integrated with AB PLC) Two channel tonnage display,revers tonnage monitor,high low cap alarms, Deviation auto set %, Installed and calibrated.
-Sandsun Die Change System . Quick die change with clamps rails, control unit, complete system brand new. to be installed with press. A 12k new option.

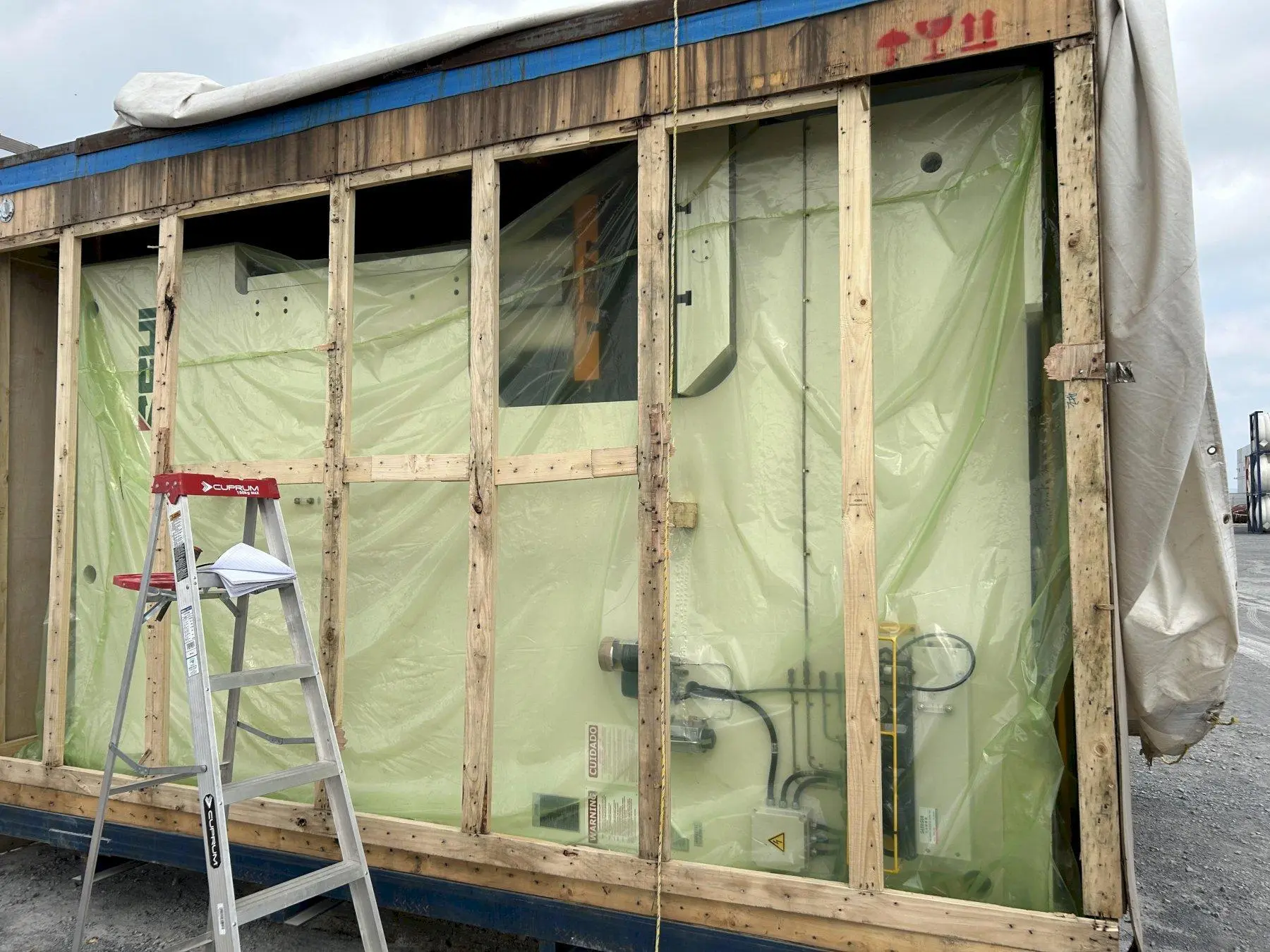

This press is a rare opportunity to own a new press still in original shipping crate. This press comes with a full start up warranty as a new press from SEYI. ALL set up must be done by SEYI to maintain the warranty. This press has a new CHUH SHIN 2in 1 feed line available at ADDITIONAL COST. This press is offered for a Lower cost of new. with all options. This press was ordered with a new Servo feed line. 27.5"w x1100# lbs x 0.5-4.0mm thick, ask your salesperson for a separate quote.  Call to set up your inspection Today.
