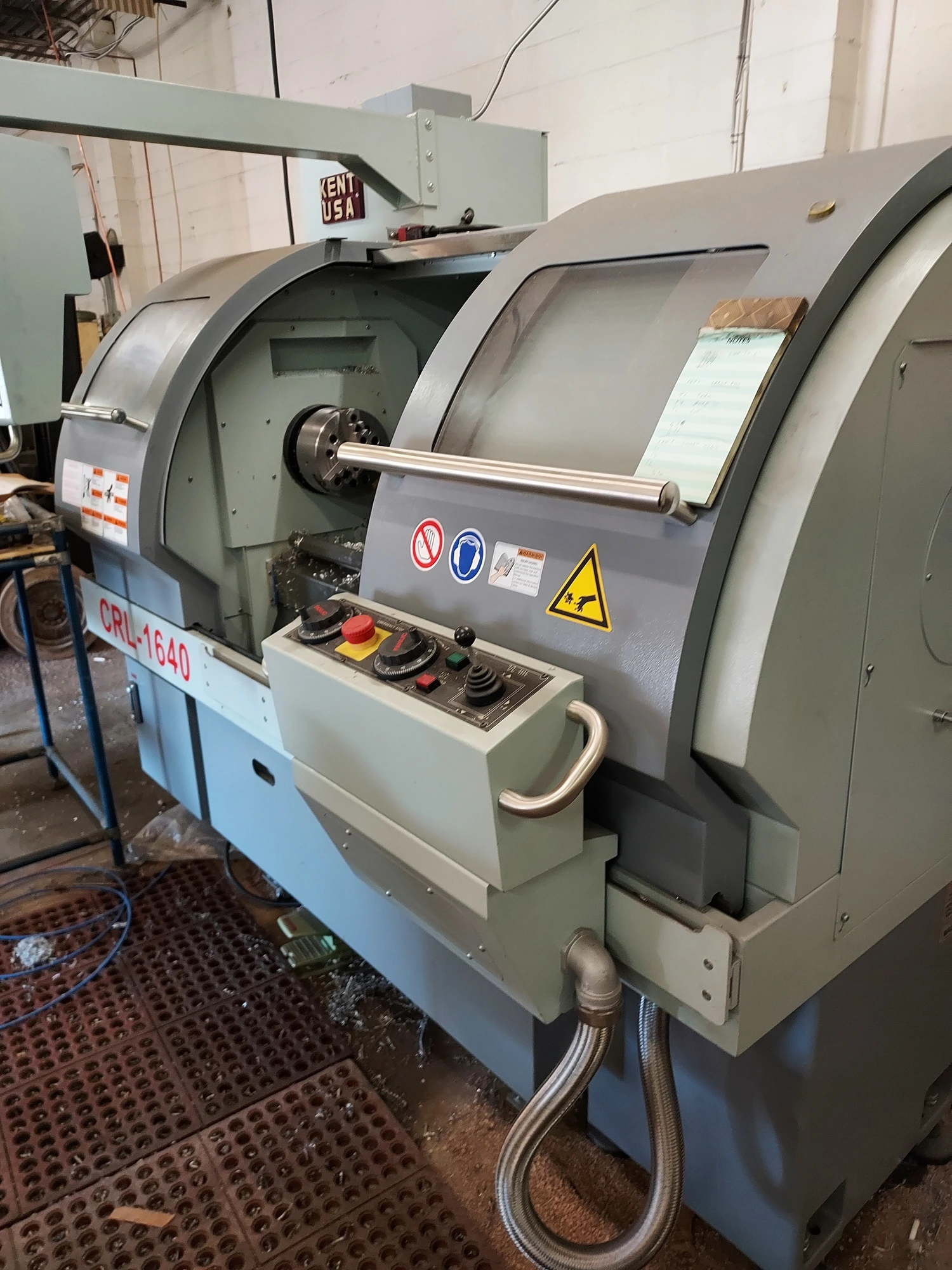

USED 2022 KENT USA CRL-1640

2022 Kent USA CRL-1640 CNC Precision Lathe with Fanuc Oi-TF CNC Control, 8" 3-Jaw Chuck, , 8-Station Turret, Tailstock.

10 HP Fanuc Servo Spindle motor
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
Encased headstock houses the spindle cartridge assembly with precision angular contact ball bearings grease sealed for life of the spindle
Extra large precision ground ballscrews
25-3000 RPM range; electronic handwheels
Auto Lube system with metered Check valves
Automatic 8 position hydraulic turret
8" Hydraulic 3 jaw chuck

SPECIFICATIONS:
Swing Over Bed.................16"
Swing Over Cross slide.........8.6"
Distance Between Centers.......35"
Width of Bed...................10.23"
Spindle Nose...................ASA A2-5
Spindle Bore...................2"
Spindle Taper..................1/19.18
Spindle Speeds.................25-3000 RPM
Cross Slide Travel (X-Axis)....7" (w/ 8 position turret option)
Longitudinal Travel (Z-Axis)...28" (w/ 8 position turret option)
Z-Axis Ballscrew Diameter......1.259", 10 mm pitch
X-Axis Ballscrew Diameter......0.787", 5 mm pitch
Z-Axis Rapid Traverse Speed....393"/min
X-Axis Rapid Traverse Speed....295"/min
Tailstock Quill Diameter.......2.283"
Tailstock Quill Travel.........5.5"
Tailstock Taper................MT-4
Number of Tools................8 Station Turret
Spindle Motor..................10 HP
AC Servo Motor (Z-Axis)........1.6 HP
AC Servo Motor (X-Axis)........1 HP
Net Weight.....................4730 LBS

Fanuc 0i-TF CNC Control
8" 3-Jaw Chuck
8-Position Horizontal Hydraulic Turret
Tailstock

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
