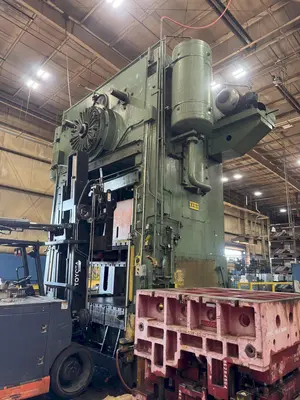

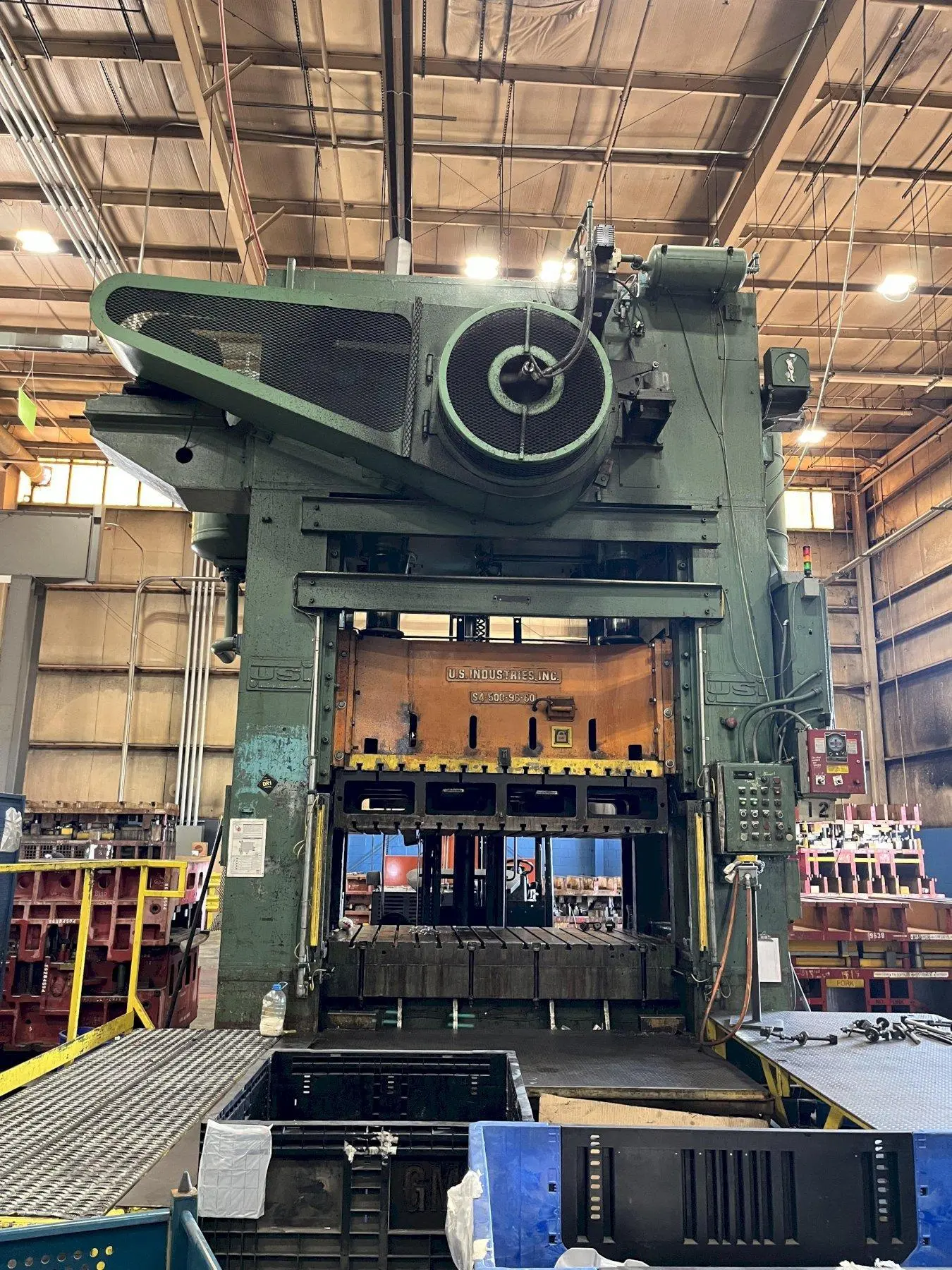

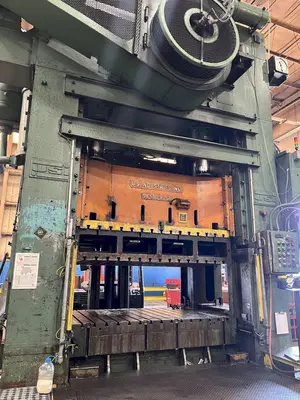

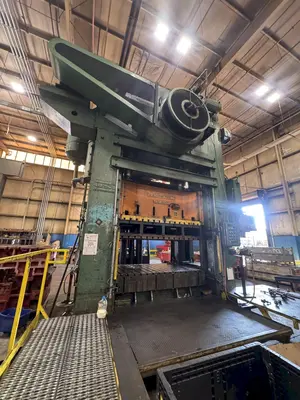

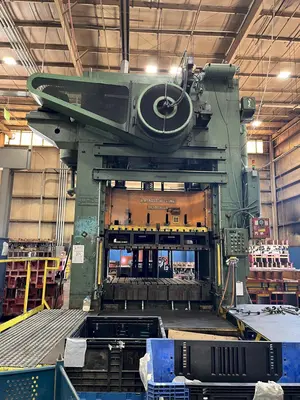

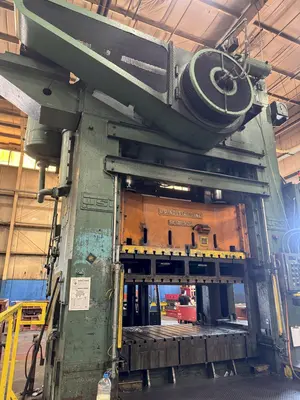

500 Ton S4-500-96-60 USI Clearing Straight Side Press, 96"x60" Bed, 60"SH, 24"Stroke, 12" Slide Adj.
Overview
Equipped With
500T USI CLEARING STRAIGHT SIDE PRESS
500T Capacity
96"x 60" Bed Area
60"Shut Height
30 Strokes/Min
43" Min. Shut Height
53" Max. Shut Height
43" Windows
24"Stroke
12" Slide Adj.
Recently repaired both counterbalances and installed new seals
All four slide adjust barrels and screws were machined and replaced
Wrist pins and wrist pin bushings were made and replace at this time and the slide and gibs were machined and squared
The slide adjust worm gear shafts as well as all four of the slide adjust nuts were machined and replaced in May of 2023
The crown of the press was inspected and we repaired the clutch, brake, and bushings.
Available Immediately, Available for Inspection
Specifications Subject to Verification; Subject To Prior Sale & Price Change
