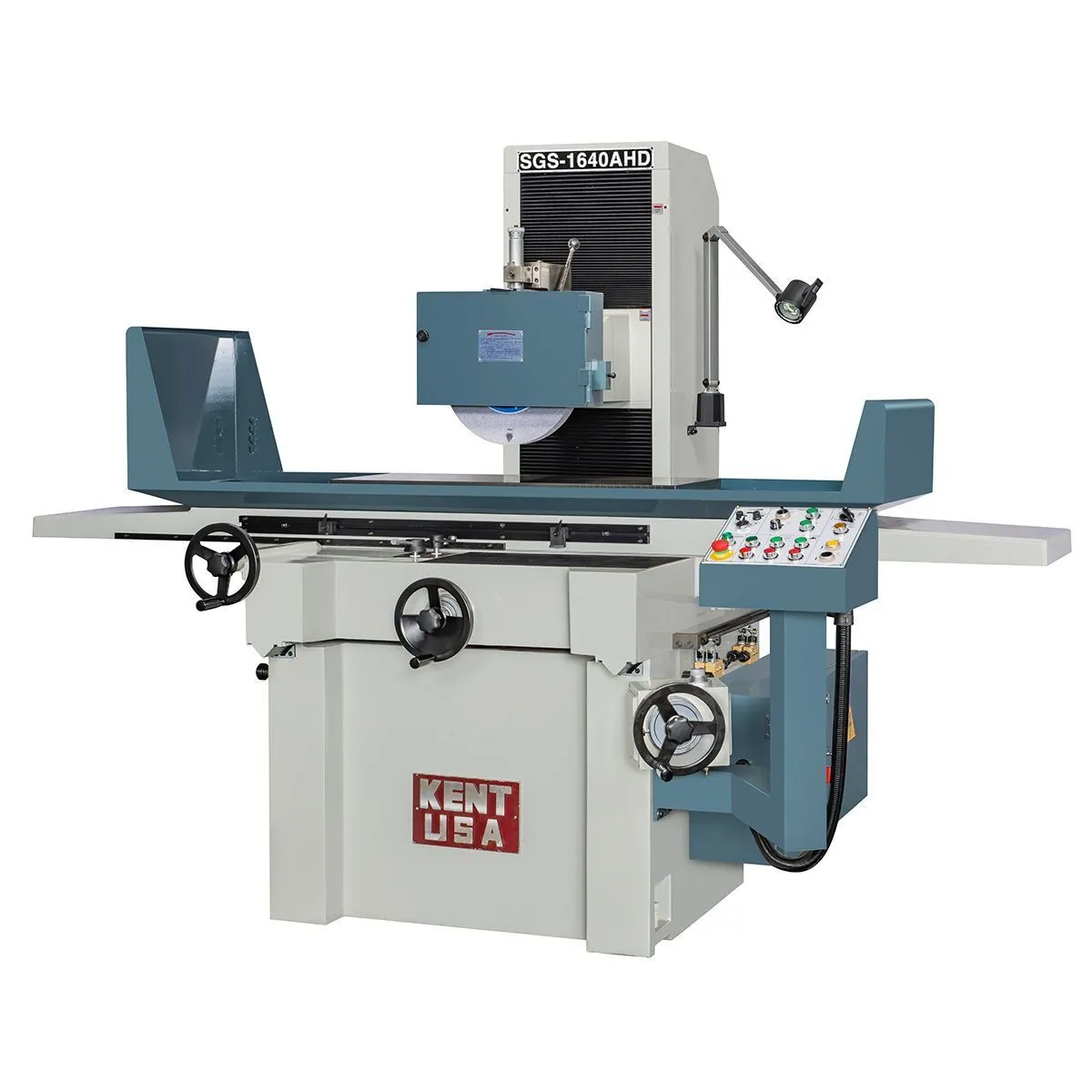

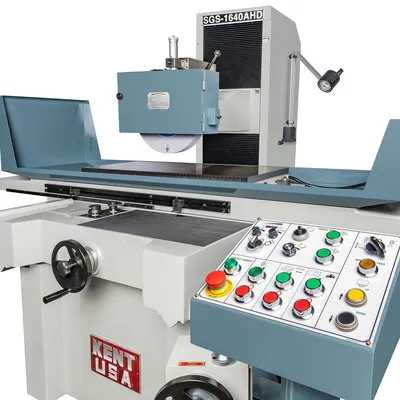

NEW KENT SGS-1640AHD

Automatic Feed Surface Grinder

Kent USA Automatic Surface Grinders provide enhanced productivity with intuitive, easy-to-use operator controls. Available with working table capacities from 8″ x 12″, 2-axes automatics to large 34″ x 128″ with 3-axis column traveling models and NC controls, we offer a full range of surface grinders to meet your needs:

Saddle-type models include: 8” x 18”, 10” x 20”, 12” x 30” and 16” x 40”
Column traveling models include: 20” x 40”, 24” x 48”, 24” x 60”, 24” x 80”, 24” x 120”, 34” x 68”, 34” x 88” and 34” x 128”
Double-column models starting at: 47” x 60”, 47” x 80”, 47” x 120” and more.

Available as an option, the ACU-RITE’s DRO100 digital readout with easy-to-read 7-inch color display is the first choice of machine tool builders and users alike, and ranges from entry-level to full part program capability.

- 16” x 40” working capacity
- 3-axis automatic movement with incremental downfeed, electronic auto-crossfeed, and hydraulic powered table movement
- Precision hand scrapped turcite table and saddle ways for smooth and long lasting precision
- High column design with 24.4” spindle center to table for extra clearance under the wheel and rapid elevation motor for quick/easy positioning
- Centralized automatic one-shot lubrication system provides lubrication to all points
- Safety 24V control circuit power
