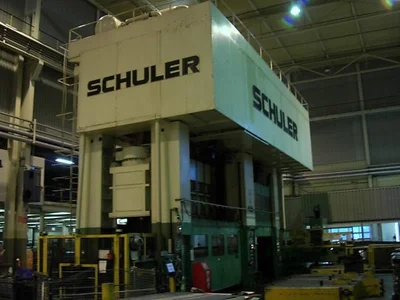

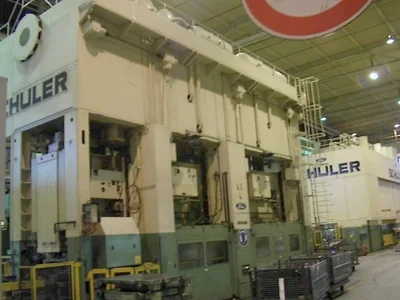

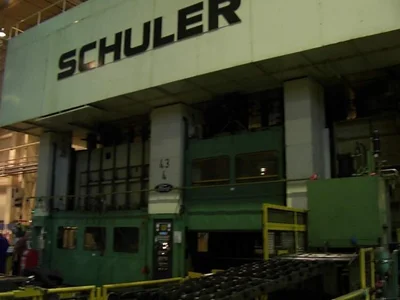

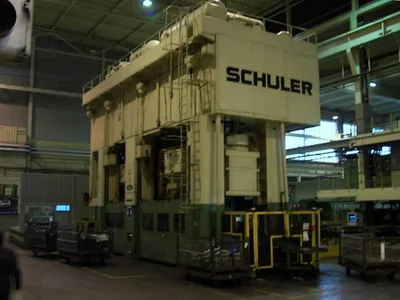

3500 Ton, SCHULER T3-3500-10-650, 3 RAMS, 10 STATION, 180"BA, CUSHION

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
3500 Ton, SCHULER T3-3500-10-650, 3 RAMS, 10 STATION, 180"BA, CUSHION

3500 Ton, SCHULER T3-3500-10-650, 3 RAMS, 10 STATION, 180"BA, CUSHION

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Eyelet & Transfer Presses
Manufacturer:
SCHULER
Stock #:
4773
Equipped With

PRELIMINARY SPECIFICATIONS

MODEL T3-3500-10-650
TRANSFER PRESS
3 RAMS
10 TOOL STATIONS
3500 TON TOTAL CAPACITY
1050mm MAX DAYLIGHT
1500mm F-B BED & RAM AREA
6500MM L-R BED AREA
500mm FLOOR TO BED
6-18 SPM SPEED

BLANK DIMENSIONS:
320 X 350mm MINIMUM
350 X 1500mm MAXIMUM
.5 - 4mm THICK

RAM 1:
300 TON CUTTING CAPACITY
120mm STROKE
20mm ADJUSTMENT

RAM 2:
1600 TON CAPACITY
800mm STROKE
50mm RAM ADJUSTMENT
EJECTOR
- 250mm STROKE
- 10 TON CAPACITY

RAM 3:
1600 TON CAPACITY
700mm STROKE
50mm ADJUSTMENT
EJECTOR
- 250mm STROKE
- 10 TON CAPACITY

TRANSFER SYSTEM:
10 STATION
650mm DISTANCE BETWEEN TOOLS
600-1200mm INNER WIDTH CLAMPING RAILS CLOSED

ELECTRICAL REQS:
185kW TOTAL POWER CONSUMPTION

EQUIPPED WITH:
MOTOR & CONTROLS
(9) PNEUMATIC DIE CUSHIONS IN BED AREA
HYDRAULIC OVERLOAD PROTECTION

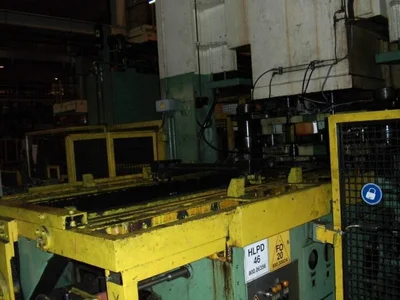

TRANSFER SYSTEM
DECOILER
LEVELLER UNIT
SCHULER STRAIGHTENER
- MODEL RS-8-70-0660
- 300-500mm
- .5 - 4mm THICK

APPROX O.A. DIMENSIONS: 14000 X 3500 X 12000mm
