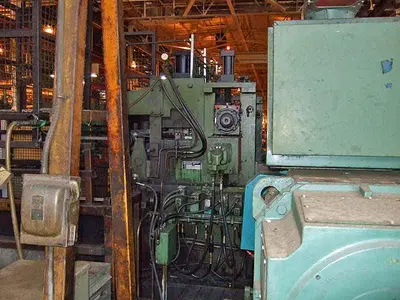

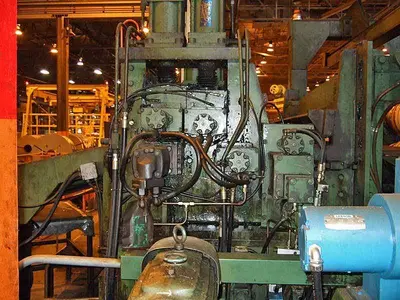

60" x 9.00" x 45,000 lbs PRO-ECO SLITTING LINE

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
60" x 9.00" x 45,000 lbs PRO-ECO SLITTING LINE

60" x 9.00" x 45,000 lbs PRO-ECO SLITTING LINE

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Slitters & Slitting Lines
Manufacturer:
PRO-ECO
Year:
1977
Stock #:
7600
Equipped With

Preliminary Specifications

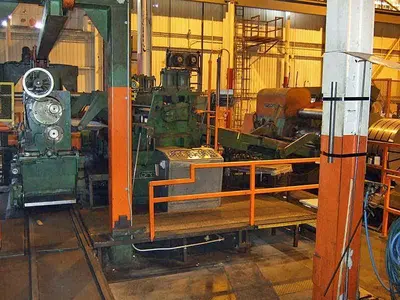

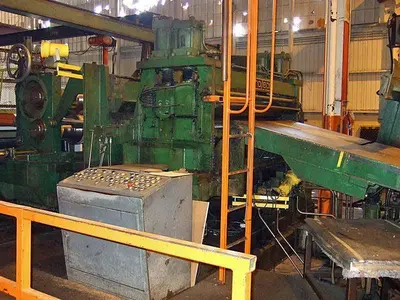

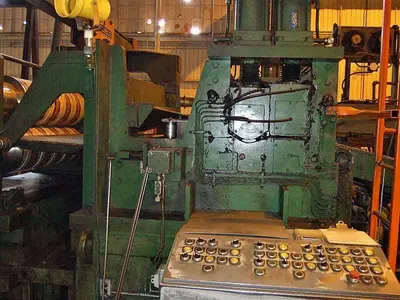

PRO-ECO Slitting Line
Year 1977
MATERIAL............................ CR - HR - HRPU - HSLA
WEIGHT CAPACITY.............. 45,000 LBS
WIDTH.................................. 60"
COIL O.D. ............................. 72"
COIL I.D. ENTRY .................. 24" - 30"
COIL I.D. EXIT ...................... 20" & 24"
LINE SPEED ......................... 215 & 630 CONSTANT
OPERATING MODES............ PULL THRU - DRIVE ASSIST - LOOP
LINE DIRECTION ................. RIGHT TO LEFT

CONSISTING OF THE FOLLOWING:


ENTRY PIT TYPE COIL CAR:

SELF CONTAINED HYD. POWER UNIT

HYDRAULIC LIFT & TRAVEL

COIL SADDLES

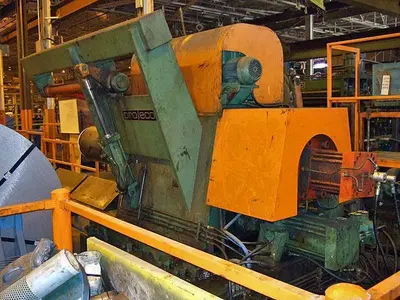

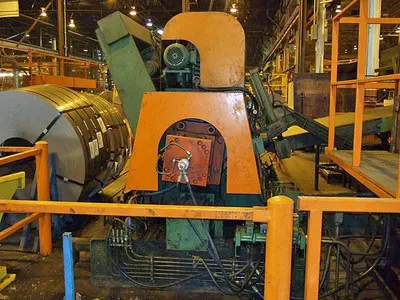

MANDREL UNCOILER:

OVERARM HOLDDOWN ROLL - POWERED

HYDRAULIC EXPANSION

SLIDE BASE

WATER COOLED BRAKE

HYDRAULIC MOTOR FEEDUP

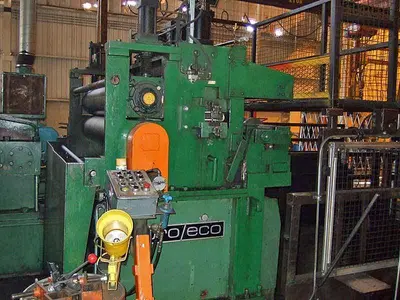

ENTRY UNIT:

PEELER TABLE WITH HYDRAULIC LIFT AND EXTEND

PHOTO EYE EDGE DETECTOR

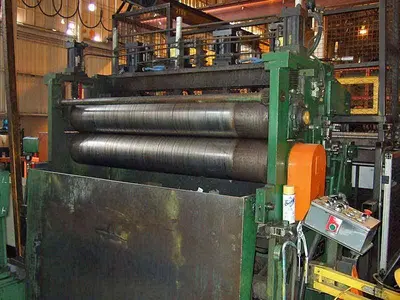

5 ROLL FLATTENER WITH PINCH ROLLS

ROLLER TYPE SIDE GUIDES

CROP SHEAR

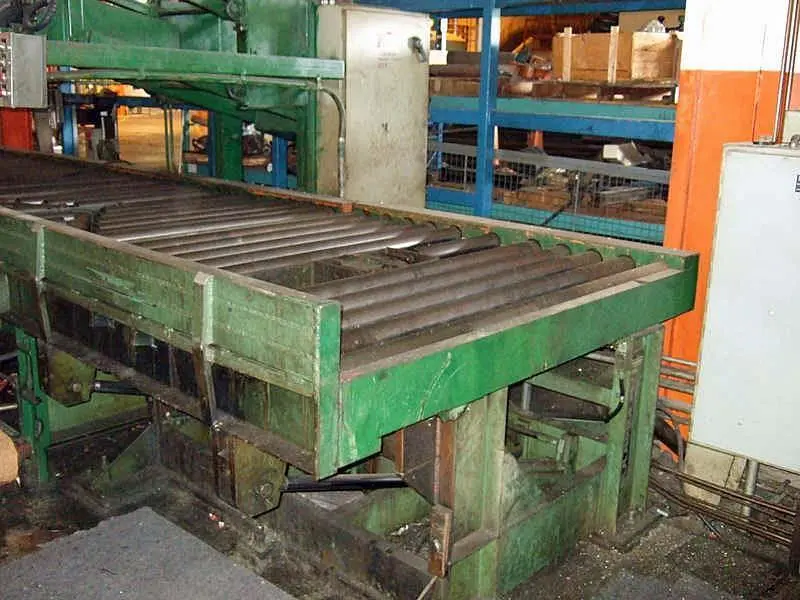

FEEDUP TABLE:

DROP AWAY TYPE FOR CROP REMOVAL

CROPPED END SCRAP BIN

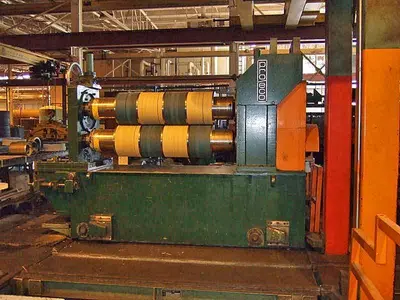

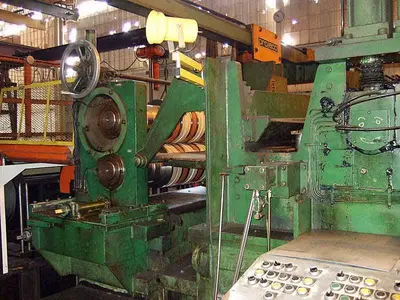

INJECTOR TYPE SLITTER HEADS:

(2) HEADS

9" DIA. x 66" FACE ARBORS

SINGLE ECCENTRIC ARBOR ADJUSTMENT

OVERHEAD CYLINDER SET UP TO MOVE HEADS IN & OUT

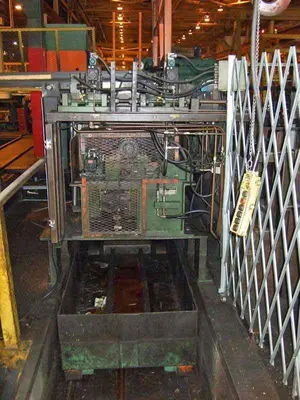

DUAL SCRAP WINDER:

INSPECTION TABLE OVER THE TOP

BOTTOM DROP OUT OF THE SCRAP BALL

HYDRAULIC MOTOR WIND

HYDRAULIC CYLINDER LEVEL WIND


PIT CROSS OVER TABLE


TENSION STAND:

ENTRY SEPARATOR TOOLING BAR

PAD TYPE TENSION UNIT

AIR BRAG TYPE TENSION CONTROL

EXIT PINCH ROLLS WITH TACH

THREADING TABLE

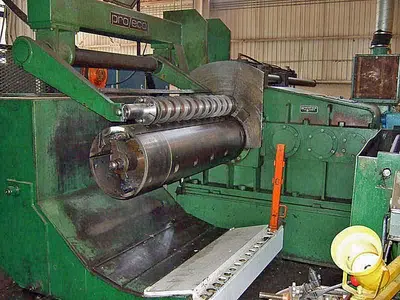

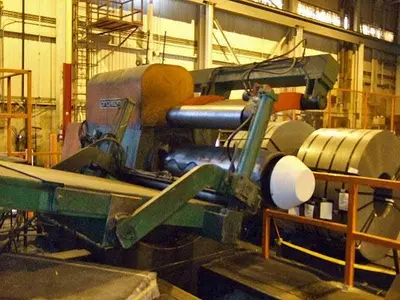

RECOILER:

20" HYDRAULIC GRIP & EXPAND THRU OVERARM SEPARATOR

HYDRAULIC PUSHOFF

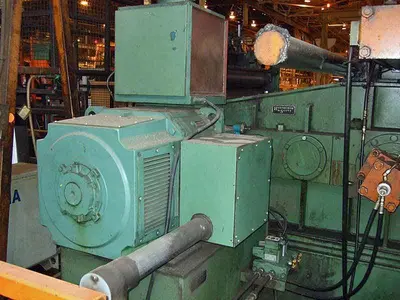

200 HP DC MAIN MOTOR 650 / 1950 RPM

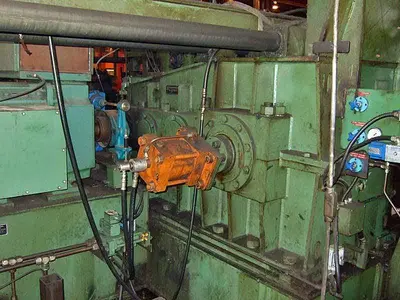

INTEGRAL 2 SPEED REDUCER /47 AND 16:1 RATIO


FLOOR MOUNT COIL CAR:

KEEPER ARMS

SELF CONTAINED HYDRAULIC POWER UNIT

SIDE MAST DESIGN

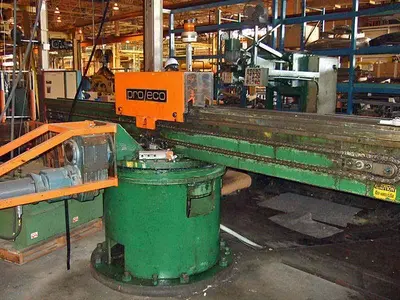

2 ARM EXIT TURNSTILE:

MECHANICAL PUSHOFF

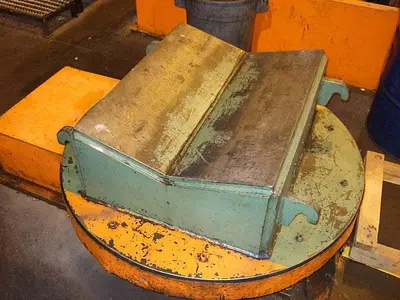

RIGHT ANGLE DOWNLAYER:

72" OD x 10,000 LB. CAPACITY

24" LONG HORN

POWERED CONVEYOR TOP

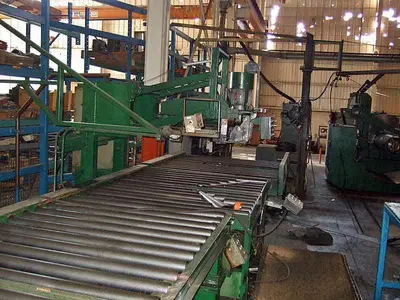

12' STORAGE CONVEYOR:

72" OD


CALDWELL 16,000 LB. MECHANICAL ID / OD GRAB
NOTE: ALL PICTURES ARE FOR REFERENCE ONLY

Specifications Subject To Verification; Subject To Prior Sale & Price Change
We encourage your personal inspection of this machine, available immediately!
