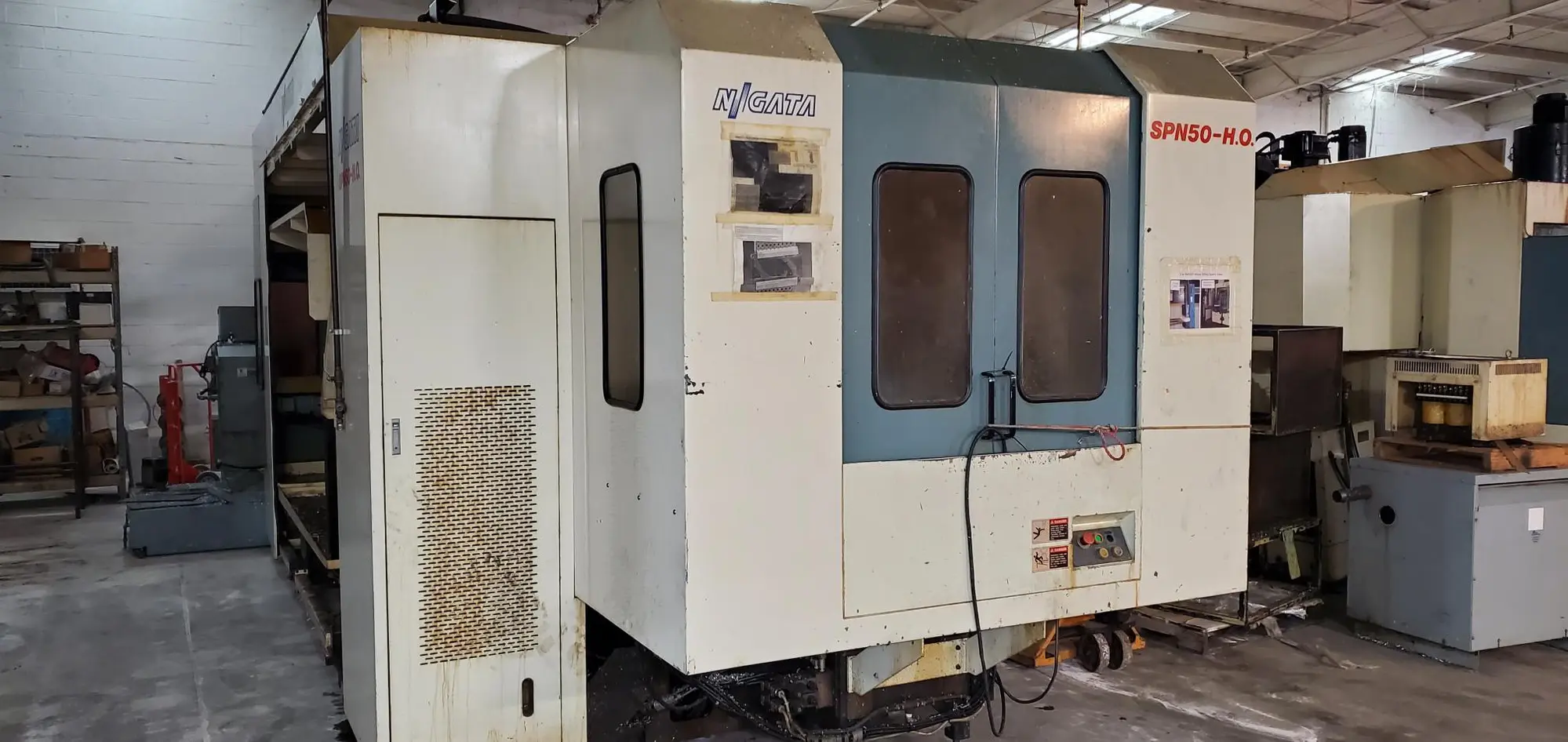

2001 Niigata SPN50-HO CNC Horizontal Machining Center with Fanuc CNC Control, 15,000 RPM, CAT-50 Spindle, Full 4th Axis, 60 ATC, Thru-Spindle Coolant, and Chip Conveyor
| X | 32" | 812.8 mm |
| Y | 30" | 762 mm |
| Z | 30" | 762 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 19.685" | 500 mm |
| Pallet-L | 19.685" | 500 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 16iM) | CNC (Fanuc 16iM) |
Pallet Size.......................19.69" x 19.69"
Number of Pallets.................2
Max. Pallet Capacity..............1,320 LBS
Pallet Indexing...................0.001 Degree (Full 4th Axis)
Spindle Nose to Pallet Center.....5.9" - 35.4"
Spindle Center to Pallet..........3.15" - 32.7"
X-Axis Travel.....................32"
Y-Axis Travel.....................30"
Z-Axis Travel.....................32"
Spindle Motor.....................60/50 HP
Spindle Taper.....................CAT-50
Spindle Speed.....................15,000 RPM
Rapid Traverse Rates..............2,362 IPM
Cutting Feedrate..................1,575 IPM
Number of Tools...................60 ATC
Fanuc 16iM CNC Control
15,000 RPM, CAT-50 Spindle
Full 4th Axis
60 Station ATC
Chip Conveyor
Thru-Spindle Coolant
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
