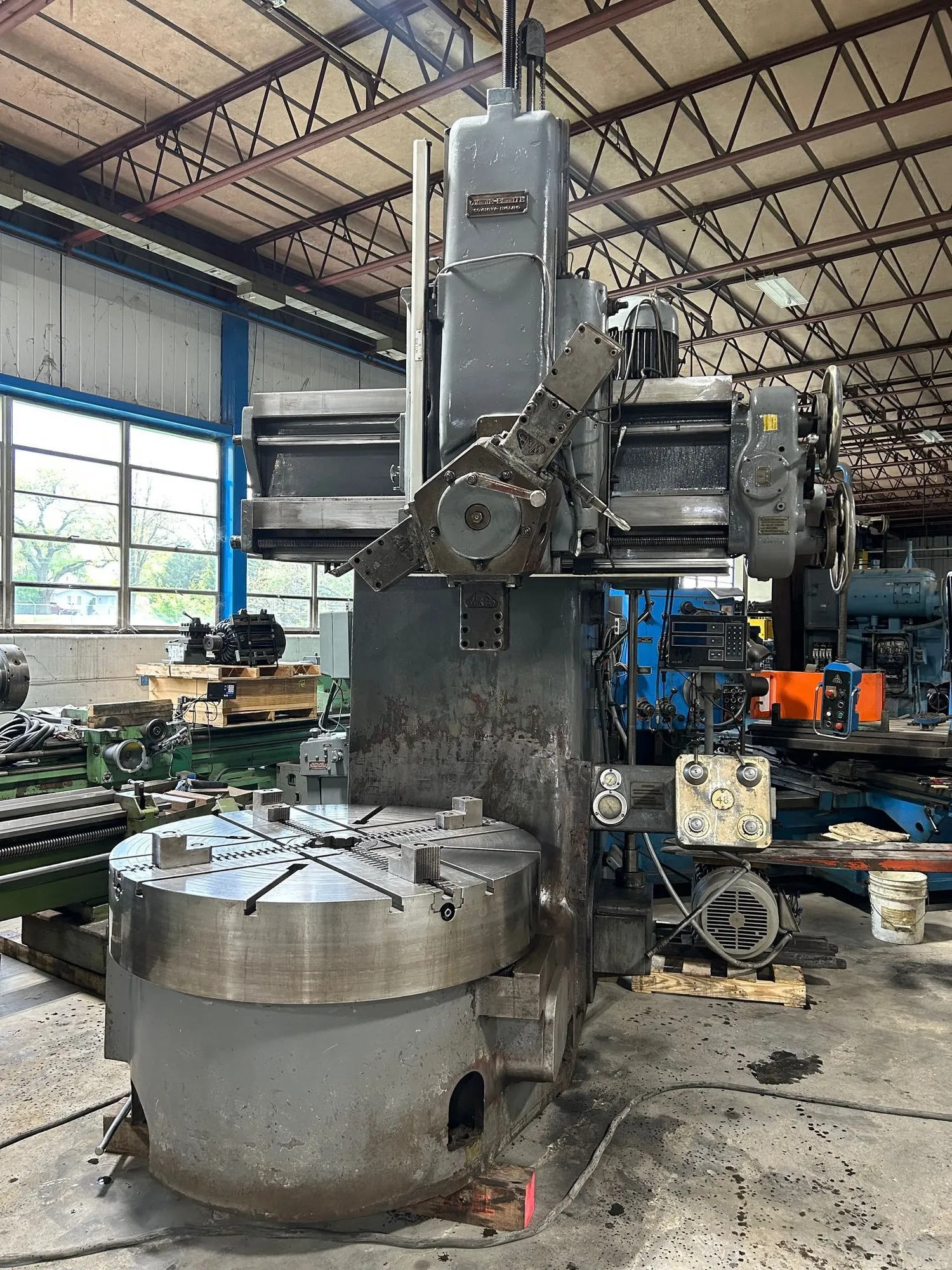

Webster & Bennett 48" Vertical Boring Mill with 54" 4-Jaw Chuck, 60" Max. Swing, 36" Under Rails, 5 Station Turret.
| Table Dia | 48" | 1,219.2 mm |
| Swing | 60" | 1,524 mm |
| Work Ht-U/R | 36" | 914.4 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 100 RPM | 100 RPM |
Table Diameter........48"
Max Swing.............60"
Spindle Motor.........25 HP
Table speeds..........100 RPM
Table feeds...........0.0025" to 0.125" per rev
Number of Tools.......5 Station Turret
Electrics.............415V/3PH/50HZ
2-Axis DRO
48" 4-Jaw Chuck
5-Station Turret
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
