Precision Tool room lathe with built in DRO and electronic threading in inch and metric
| Swing | 11" | 279.4 mm |
| Centers | 18" | 457.2 mm |
| Threading | Yes Inch and Metric | Yes Inch and Metric |
| Taper | 5.0 | 5.0 |
| Power | 3 hp | 2.2 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Dimensions | 73" x 30" x 67" | 73" x 30" x 67" |
| Weight | 2,400 Lbs. | 2,400 Lbs. |
FEATURES:
Series: ATL618E
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Spindle Speed: 150 ~ 4,000 rpm
Spindle Nose: 5C (10 degree)/4-degree Taper
Hole Thru Spindle: 1-1/4”
Main Motor: 3 HP
Voltage: 230V AC/1PH/3PH
Dimensions: 73” x 30” x 67”
Made in Taiwan
STOCK#
ATL618E
MODEL

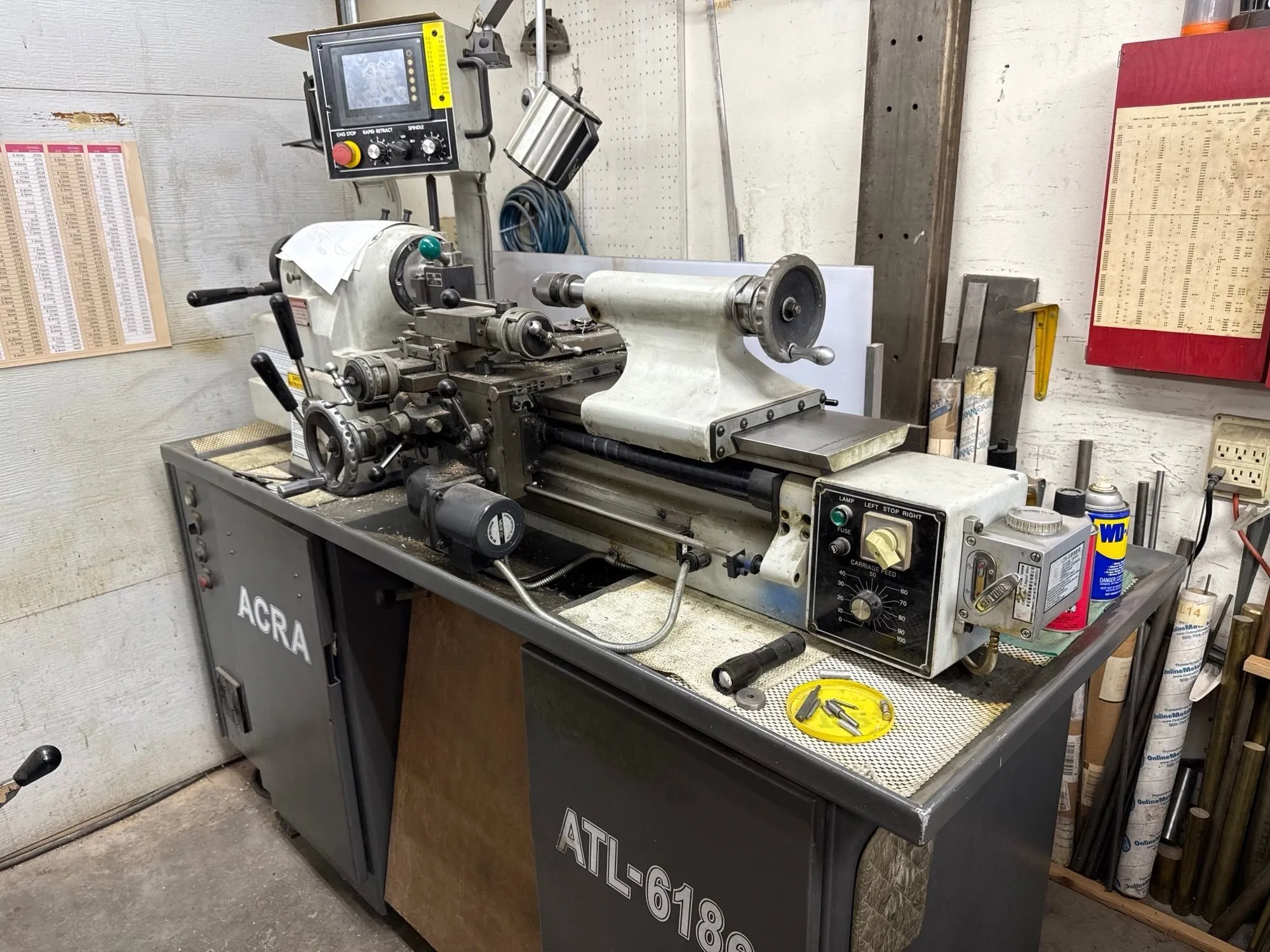

ATL618E High Speed/High Accuracy Toolroom Lathe
W/Digital Threading Control
WEIGHT
2,400 LBS
STANDARD EQUIPMENT:
5C Lever Collet Closer Coolant System Tool Holder Special Tools
Direct Reading Spindle Speeds Electronic Threading Digital Read-Out. LED Light
6 jaw and 4-jaw Chuck, Set of 5C collets, Quick Change tool post and 28 holders, Digital Read outs and electronic threading
