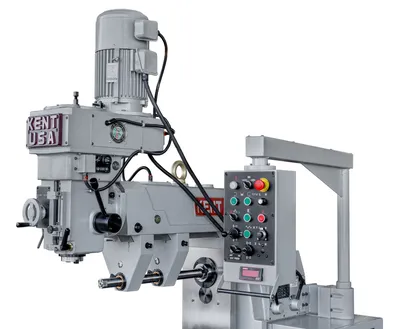

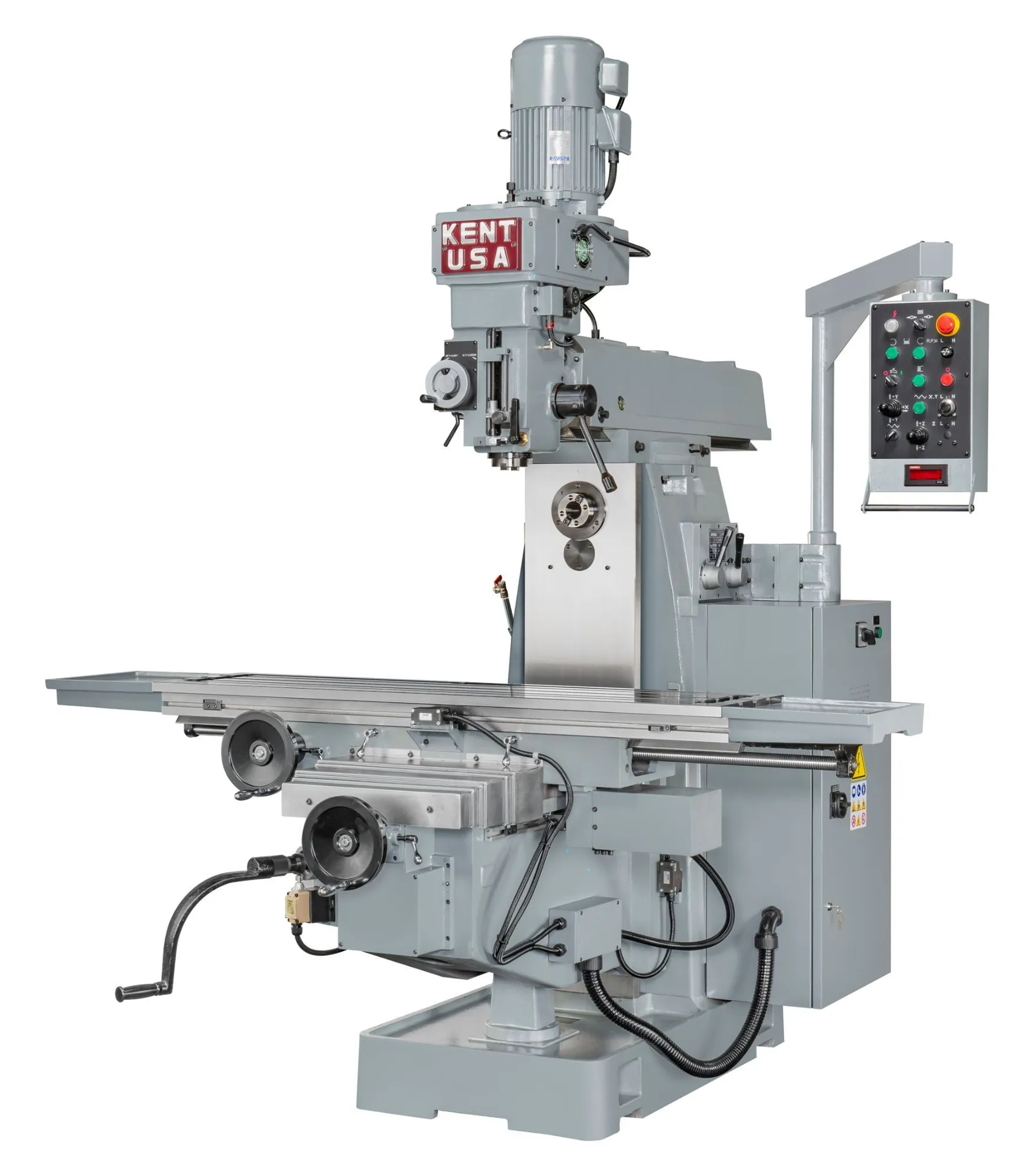

NEW KENT KTM-VH500EVS

Combination Horizontal and Vertical Mills
Kent USA Combo Horizontal/Vertical Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance and separate motors drive the vertical spindle and horizontal spindle. Kent USA Combo H/V Mills offer both knee and bed type variants. Table sizes range from 12″ x 51″ to 27.6″ x 102.4″ while table travels range from 39.4″ x 14″ x 17.7″ to 78.7″ x 41.3″ x 39.4″.

- Turret Type Inverter / Variable Speed Head
- 5 HP Horizontal Spindle Motor, 9-Speed Ranges. 5 H.P. Vertical Spindle Motor, 57.9″ x 14.6” Hardened & - - Ground Table Top
- Saddle and Knee with Hardened & Ground Square (box) Ways
- Precision Ballscrews in X & Y-Axes
- X & Y-Axes driven by AC Servo Motor
- Precision Bored & Ground Milling Head with super precision ABEC-7 Bearings
- Meehanite® casting, with a built-in Coolant Reservoir in the Machine Base
- Coolant System and Chip Tray
- Centralized Automatic Lubrication, with Metered Check-Valves
