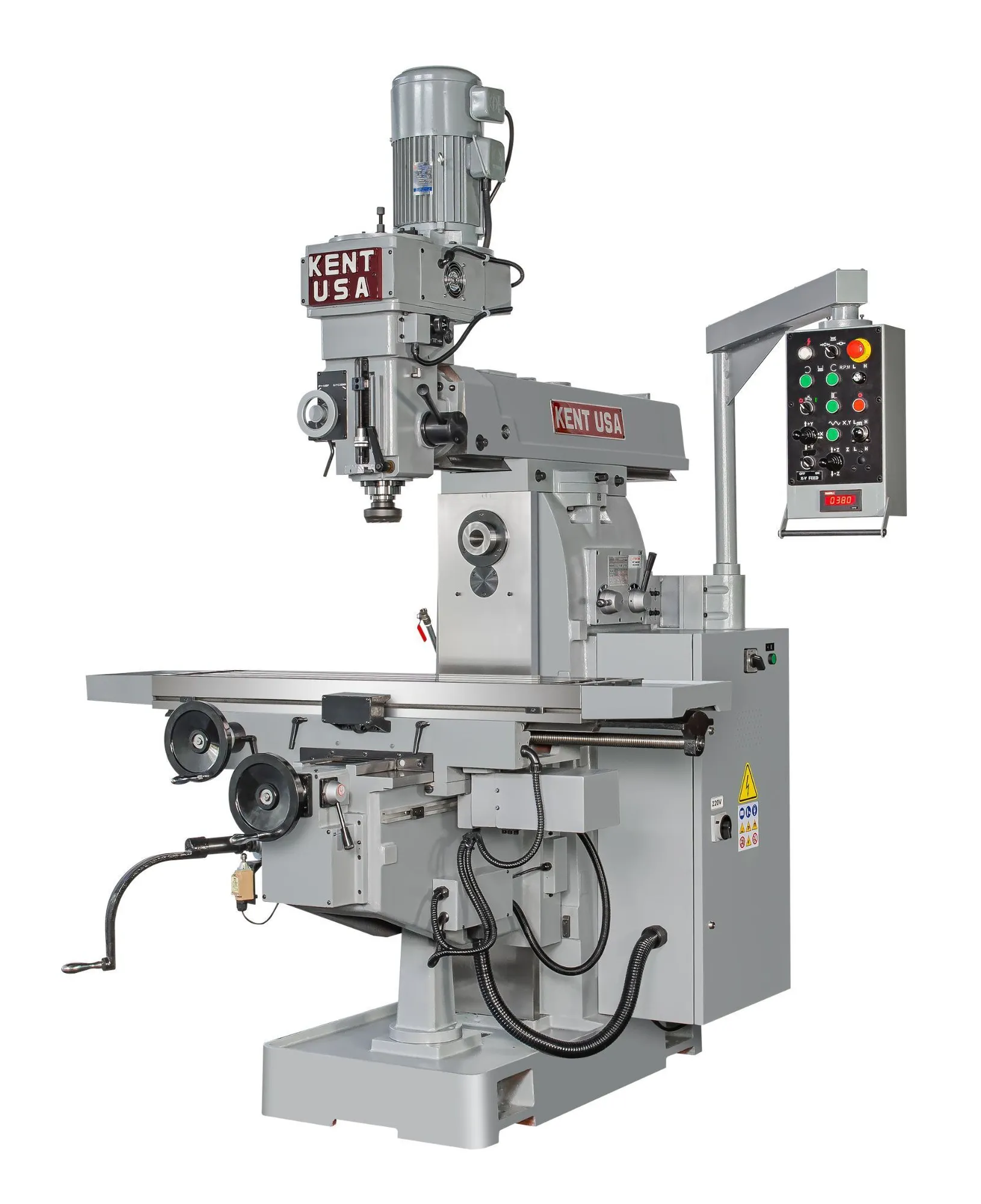

NEW KENT KTM-VH300EVS

Combination Horizontal and Vertical Mills
Kent USA Combo Horizontal/Vertical Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance and separate motors drive the vertical spindle and horizontal spindle. Kent USA Combo H/V Mills offer both knee and bed type variants. Table sizes range from 12″ x 51″ to 27.6″ x 102.4″ while table travels range from 39.4″ x 14″ x 17.7″ to 78.7″ x 41.3″ x 39.4″.

- Turret type inverter / variable speed head
- 5 HP horizontal spindle motor, 6 speed ranges. 5 H.P. vertical spindle motor, 50″ x 14.6” hardened and ground table top
- Saddle and knee with hardened and ground square (box) ways
- Precision ballscrews in X & Y axes
- X & Y axes driven by AC servo motor
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite® casting, with built in coolant reservoir in machine base
- Coolant system and chip tray
- Centralized automatic lubrication, with metered check-valves
