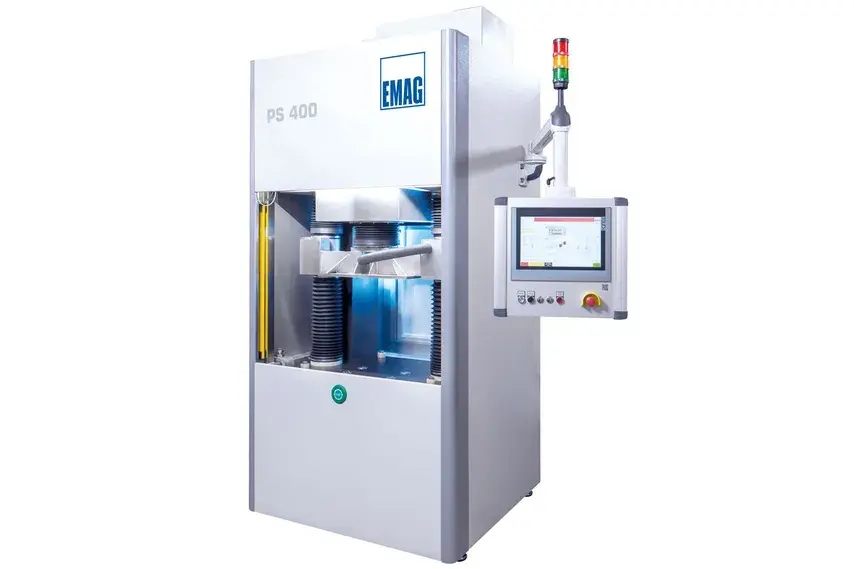

NEW EMAG PS

PS – PREMIUM STANDARD: Flexible Machine Platform for Electro-Chemical Machining
The PS machine with a deburring, sinking , or oscillation module is the flexible machine platform for the (P)ECM process:

- Modular machine concept
- Manual or semi-automatic starter systems
- Suitable for automation using robots or gantry loaders
- Smart software and hardware interfaces

PS - (P)ECM Precision Machining in Modular System.
The PS single machine provides the basis for a modular system. This reduces investment costs because customers only have to invest in linking several processes (e.g., pre-washing, (P)ECM station, (P)ECM station 2, final treatment, and automation) once production increases.

The PS is ideal for ...

- ECM deburring
- (P)ECM internal profiling
- (P)ECM machining
- (P)ECM sinking

The PS modules have a base made of MINERALIT®, a polymer concrete which is 8 times more resistant to vibration than gray cast iron. The machine and the tools suffer from less vibration as a result of this outstanding feature.

Highlights of the PS - Premium Standard:

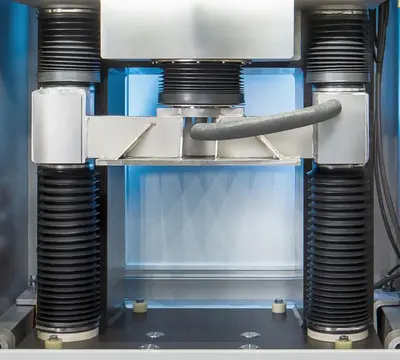

- Machining area: sinking module, oscillation module or deburring module
- Scalable generator technology up to 2,500 A
- DC, Pulse and PECM technology
- Flexibly configurable pulse technology
- Individual cathodes can be selected/deselected
- Single cathode monitoring
- Process control using time, distance, and ldt
- In the form of a sinking module: 400 mm Z stroke
- In the form of an oscillation module: 200 mm Z stroke
- Touch panel and S7-1500 controller from Siemens
- Conductivity monitoring
- Temperature control
- pH value control with metering

Options:
- Fast short-circuit shutdown
- Automatic cathode cleaning
- Oscillation at up to 100 Hz and stroke from 0 to 0.6 mm
- C-axis for interpolated multiple sinking movement
- IoT Ready
- Automation interface
- Can be combined with all electrolyte management systems from 20 – 600 l/min
- Automatic machining area door
