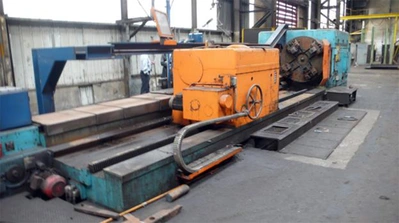

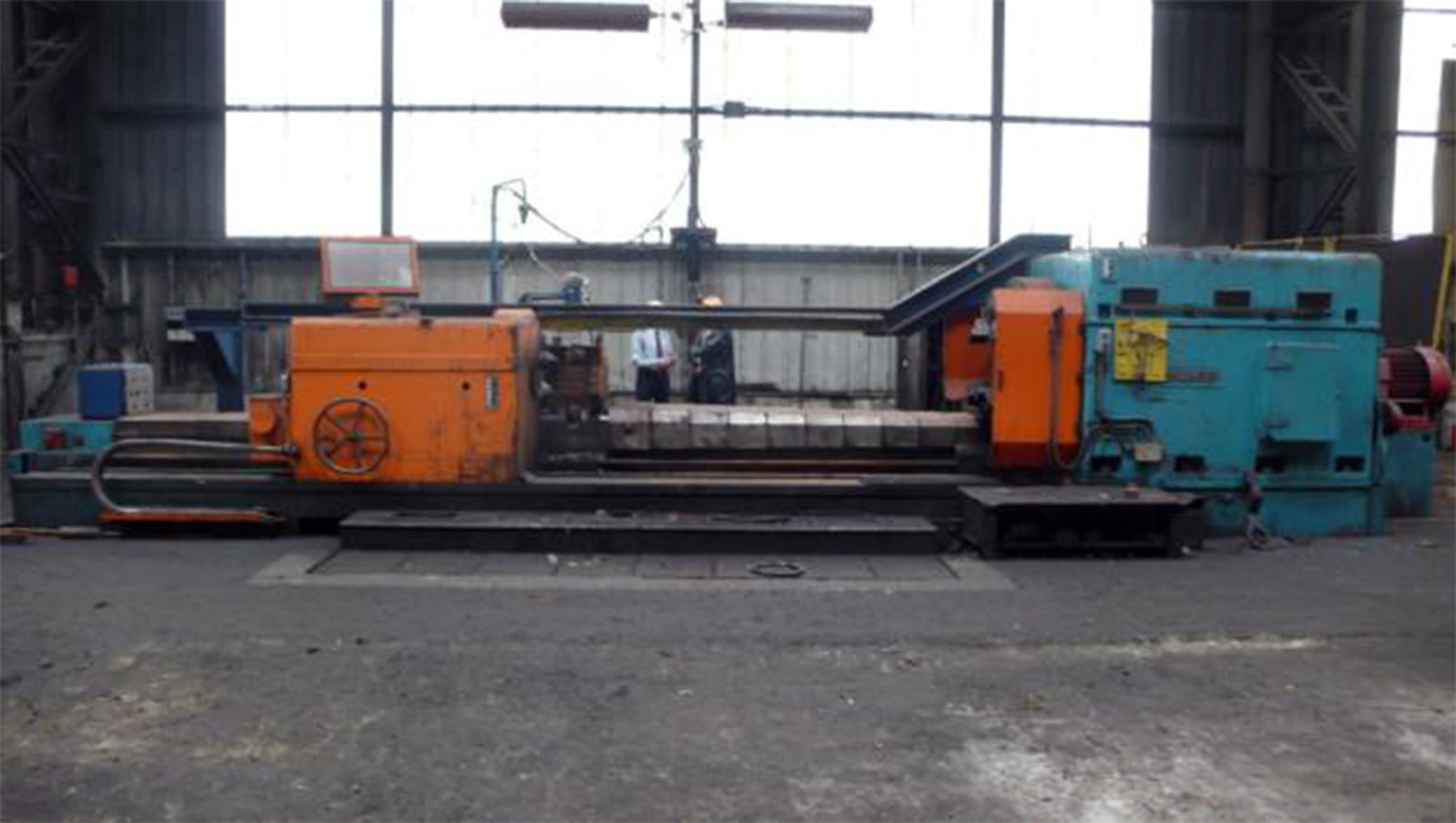

1961 HERKULES Manual Lathe

USED, 61" X 236" HERKULES HEAVY DUTY ROLL LATHE

MAXIMUM TURNING DIAMETER: 1600 MM (63.3")
MAXIMUM TURNING LENGTH: 6000 MM (236")
MAIN MOTOR POWER: 150 kW (200 HP)
MAXIMUM WEIGHT BETWEEN CENTERS: 28 TON (62,000 LBS.)
SPINDLE SPEEDS: 05 - 60 RPM
LONGITUDINAL TRAVEL: (3 RANGES) 0.4 - 80 MM/MIN (STEPLESS)
CROSS TRAVEL: (3 RANGES) 0.26 - 53 MM/MIN (STEPLESS)
LONGITUDINAL RAPID TRAVERSE: 3000 MM / MIN. (120" / MIN)
CROSS RAPID TRAVERSE: 700 MM / MIN (27" / MIN)
FLOOR SPACE: 15 M X 5 M

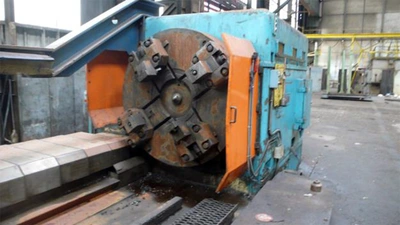

HEAVY DUTY 4-JAW CHUCK
VARIABLE SPEED HEADSTOCK
INFINITELY VARIABLE FEEDS

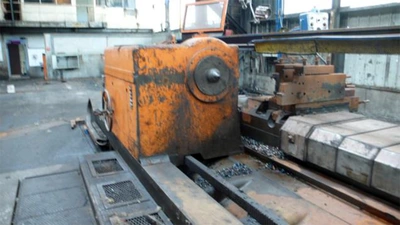

POWER POSITIONING TAILSTOCK
HEAVY DUTY BED DESIGN FOR HIGH STOCK REMOVAL
