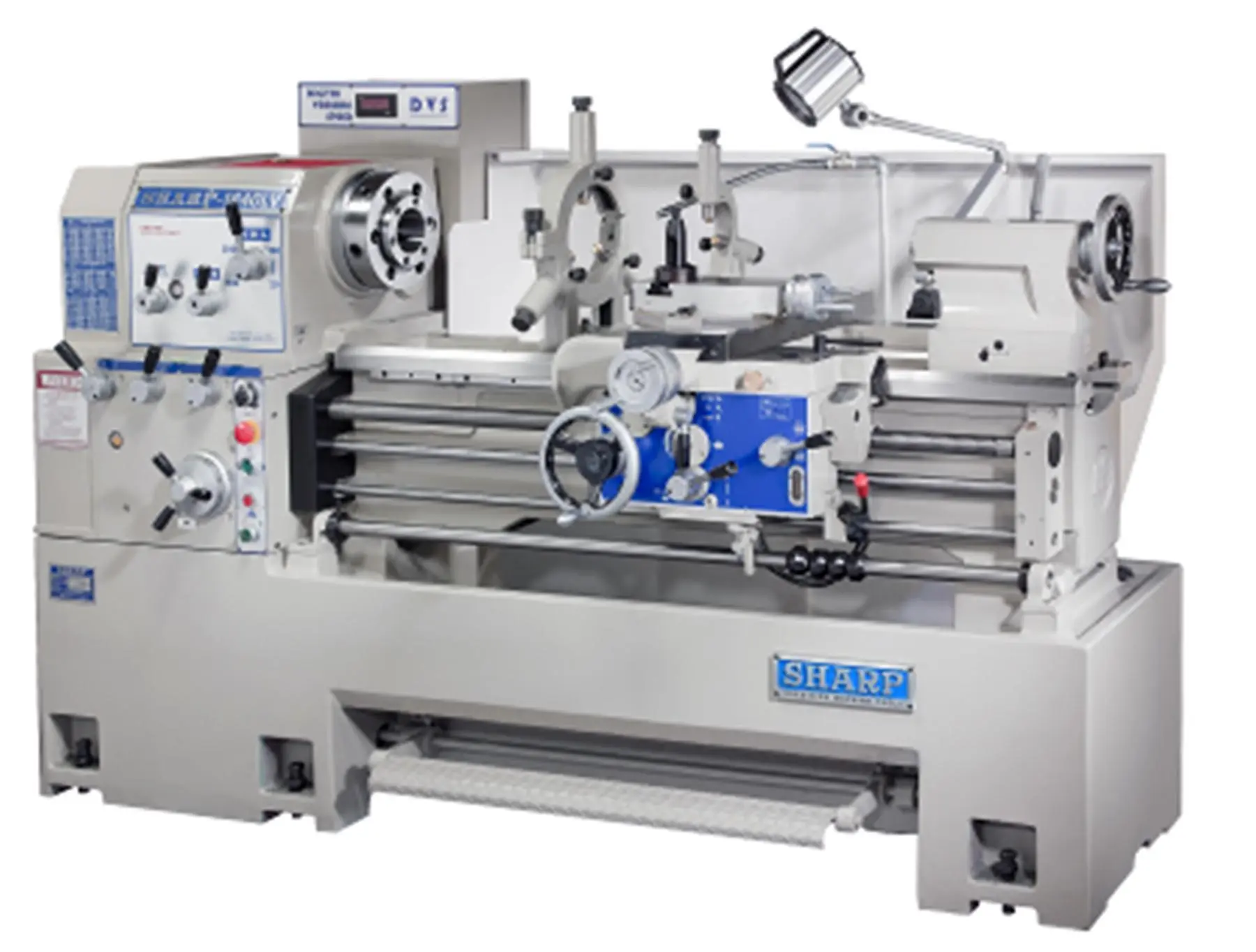

NEW, SHARP MODEL 1640LV PRECISION LATHE
| Swing | 16" | 406.4 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 3.0625" | 77.788 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Swing Over Cross Slide | 8.75" | 222.25 mm |
SWING OVER BED: 16"
SWING OVER CROSS SLIDE: 8-3/4"
SWING IN GAP: 24-3/8"
GAP LENGTH: 9-3/4"
DISTANCE BETWEEN CENTERS: 40"
SPINDLE SPEEDS: (12) 20 - 2000 RPM
SPINDLE MOTOR: 7.5 HP
SPINDLE NOSE: D1-8 CAMLOCK
SPINDLE BORE: 3-1/16"
SPINDLE BORE TAPER: MT 6
CENTER TAPER: MT 4
LONGITUDINAL FEEDS: (18) 0.002 - 0.032 IPR
CROSS FEEDS: (12) 0.0001 - 0.0094 IPR
INCH THREADS: (36) 4 - 56 TPI
METRIC AND MODULE THREADS: (17) 0.5 - 7 MM
D.P. THREADS: (36) 4 - 56 MM
LEADSCREW PITCH X DIAMETER: 4 TPI X 1-3/8"
CROSS SLIDE WIDTH: 8.7"
COMPOUND REST TRAVEL: 4.9"
COMPOUND WIDTH: 4.5"
BED LENGTH: 59"
BED WIDTH: 11-3/4"
TAILSTOCK QUILL DIAMETER: 2-1/4"
TAILSTOCK QUILL TAPER: MT 4
TAILSTOCK QUILL TRAVEL: 5"
WEIGHT (APPROXIMATE): 3,600 LBS.
10" 3-JAW CHUCK
16" FACE PLATE
STEADY REST
FOLLOW REST
TAILSTOCK
COOLANT SYSTEM
FULL LENGTH SPLASH GUARD
AMERICAN TOOL POST
HALOGEN WORK LIGHT
LONGITUDINAL CARRIAGE STOP
16" SWING HORIZONTAL MOVABLE CHUCK GUARD
TOOL GUARD
LEADSCREW GUARD
GUARD BEHIND SPINDLE
UL/CSA SWITCH BOARD / UL MOTOR / CSA PUMP
