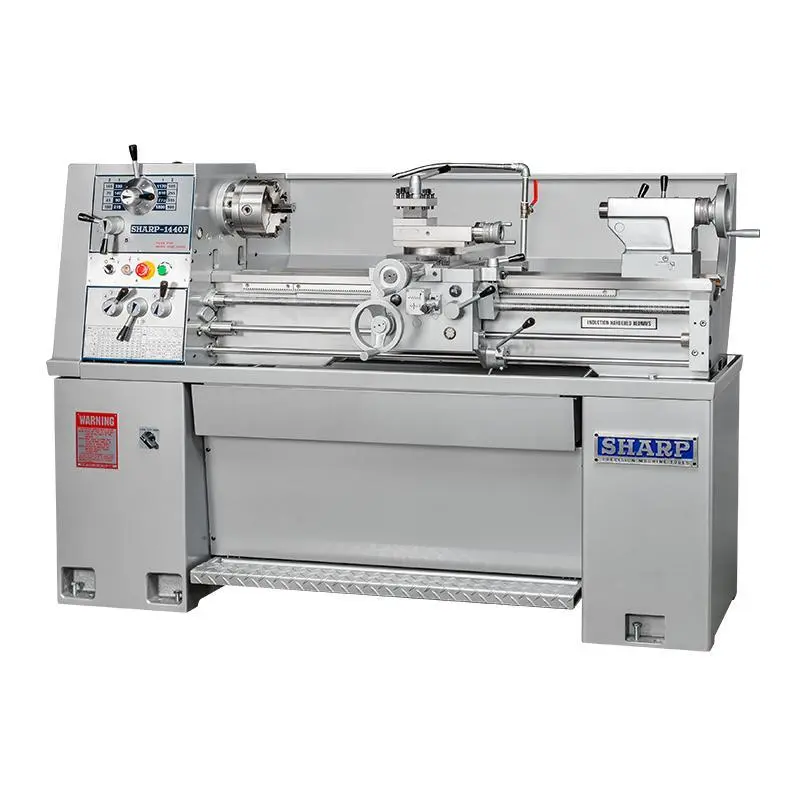

14" X 40" SHARP Precision Lathe, NEW
SWING OVER BED: 14"SWING OVER CROSS SLIDE: 8-5/8"SWING IN GAP: 20"GAP LENGTH: 8-1/2"DISTANCE BETWEEN CENTERS: 40"SPINDLE SPEEDS: (INF. VAR.) 30 - 2200 RPMSPINDLE MOTOR: 3 HPSPINDLE NOSE: D1-4 CAMLOCKSPINDLE BORE: 1-1/2"LONGITUDINAL FEEDS: (40) 0.0012 - 0.0294 IPRCROSS FEEDS: (40) 0.0003 - 0.01 IPRINCH THREADS: (40) 4 - 112 TPIMETRIC THREADS: (22) 0.45 - 7.5 MMLEADSCREW PITCH X DIAMETER: 8 TPI X 7/8"SADDLE WIDTH: 13-1/4"APRON WIDTH: 11"CROSS SLIDE WIDTH: 6-3/4"CROSS SLIDE TRAVEL: 7"COMPOUND REST TRAVEL: 4"COMPOUND WIDTH X LENGTH: 3-1/2" X 8-1/2"BED LENGTH: 66"BED WIDTH: 8-1/8"TAILSTOCK QUILL DIAMETER: 1-3/4"TAILSTOCK QUILL TAPER: MT 3TAILSTOCK QUILL TRAVEL: 4-1/2"WEIGHT (APPROXIMATE): 1,650 LBS.
HOUSTON STOCK MACHINE
8" 3 JAW CHUCK
QUICK CHANGE TOOL POST WITH 7 HOLDER
WORK LIGHT
2 AXIS NEWALL DRO
