USED 2006 MORI SEIKI NT4250/1500SZ
Overview
Description

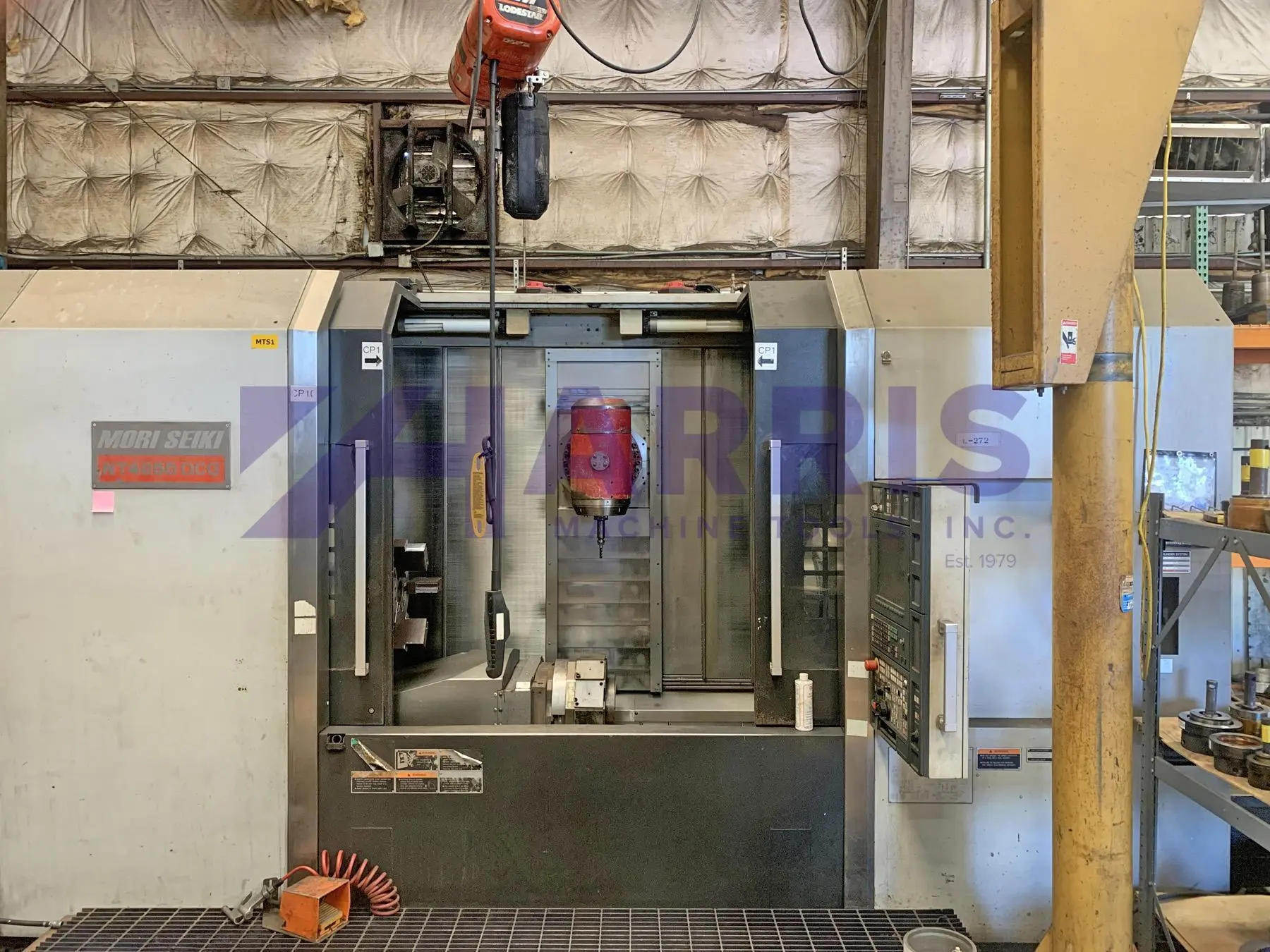

Used, 2006 Mori Seiki NT4250/1500SZ CNC Multi-Tasking Turning Center
Specifications
| Swing | 28.7" | 728.98 mm |
|---|---|---|
| Machining Length | 60.7" | 1,541.8 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 3.1" | 78.74 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 25.9" | 657.86 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
| Weight | 56320 | 56320 |
Maximum Swing (Head 1): 28.7"
Maximum Swing (Head 2): 28.7"
Swing Over Cross Slide: 28.7” / 15.7” (Turret 2)
Maximum Distance Between Centers (S & SZ): 73.3”
Maximum Turning Length (SZ): 60.7”
Maximum Turning Diameter: 25.9” / 13.7” (Turret 2)
X1 Axis Travel: 24.6″ + 4.9″‘
X2 Axis Travel Turret: 7.7”
Z1 Axis Travel: 61.0″ + 3.9″
Z2 Axis Travel Turret: 60.0”
Y Axis Travel: +/– 8.3”
B Axis Minimum Index Angle / Index Range: +/– 120 Deg.
C Axis Travel Main / Sub: 0.0001 Deg.
Spindle Bore Main: 3.6”
Bar Capacity (1 & 2 ): 3.1”
Spindle Nose (1 & 2): A2–8
Spindle Speeds (1 & 2): 4000 RPM
Spindle Drive Motor (1 & 2): 30 HP
Rapid Traverse (X / Y / Z): 1968 / 1968 / 1181 IPM
Rapid Traverse Turret (X2 / Z2): 1181 / 1181 IPM

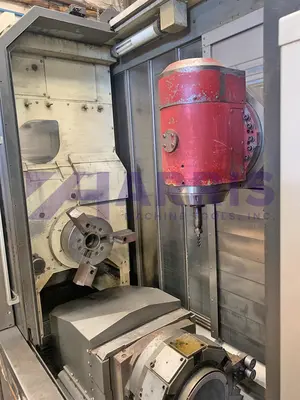

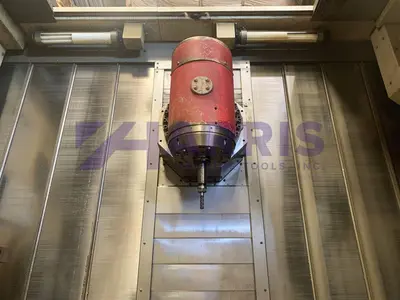

Tool Spindle Speed: 12,000 RPM
Tool Spindle Drive Motor: 24.7 HP
Number of Tool Changer / Type: 40 ATC / C6
Turret Indexing Time: 1.6 secs.

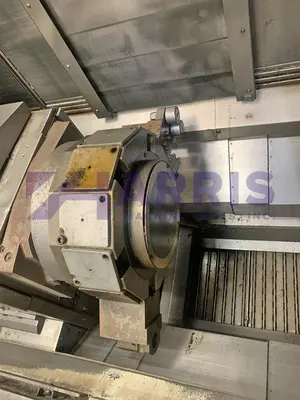

Turret Configuration: 12 Station
Machine Weight 56,320 Lbs.

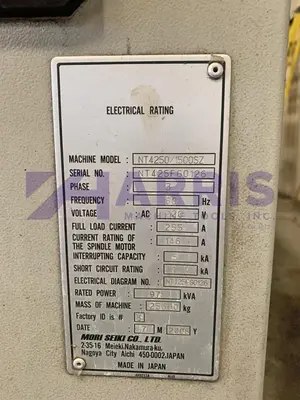

Electrical: 220V / 3Ph / 60Hz

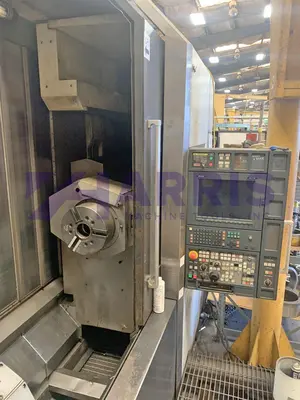

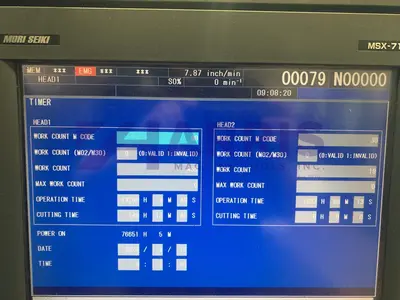

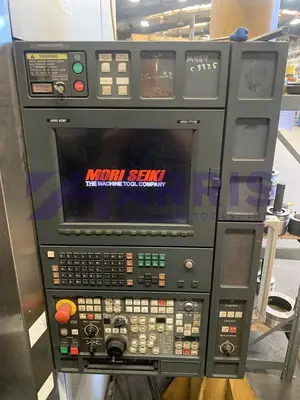

CNC Control: Mori Seiki MSX-711 III
Note: All Specifications Subject to Verification
Equipped With
Maximum Swing (Head 1): 28.7"
Maximum Swing (Head 2): 28.7"
Swing Over Cross Slide: 28.7” / 15.7” (Turret 2)
Maximum Distance Between Centers (S & SZ): 73.3”
Maximum Turning Length (SZ): 60.7”
Maximum Turning Diameter: 25.9” / 13.7” (Turret 2)
X1 Axis Travel: 24.6″ + 4.9″‘
X2 Axis Travel Turret: 7.7”
Z1 Axis Travel: 61.0″ + 3.9″
Z2 Axis Travel Turret: 60.0”
Y Axis Travel: +/– 8.3”
B Axis Minimum Index Angle / Index Range: +/– 120 Deg.
C Axis Travel Main / Sub: 0.0001 Deg.
Spindle Bore Main: 3.6”
Bar Capacity (1 & 2 ): 3.1”
Spindle Nose (1 & 2): A2–8
Spindle Speeds (1 & 2): 4000 RPM
Spindle Drive Motor (1 & 2): 30 HP
Rapid Traverse (X / Y / Z): 1968 / 1968 / 1181 IPM
Rapid Traverse Turret (X2 / Z2): 1181 / 1181 IPM
Tool Spindle Speed: 12,000 RPM
Tool Spindle Drive Motor: 24.7 HP
Number of Tool Changer / Type: 40 ATC / C6
Turret Indexing Time: 1.6 secs.
Turret Configuration: 12 Station
Machine Weight 56,320 Lbs.
Electrical: 220V / 3Ph / 60Hz
CNC Control: Mori Seiki MSX-711 III
Note: All Specifications Subject to Verification
