USED 2010 MORI SEIKI NT6600 DCG/3000CS
Overview
Description

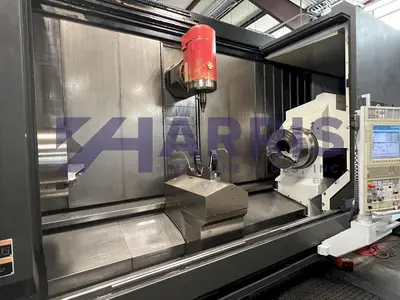

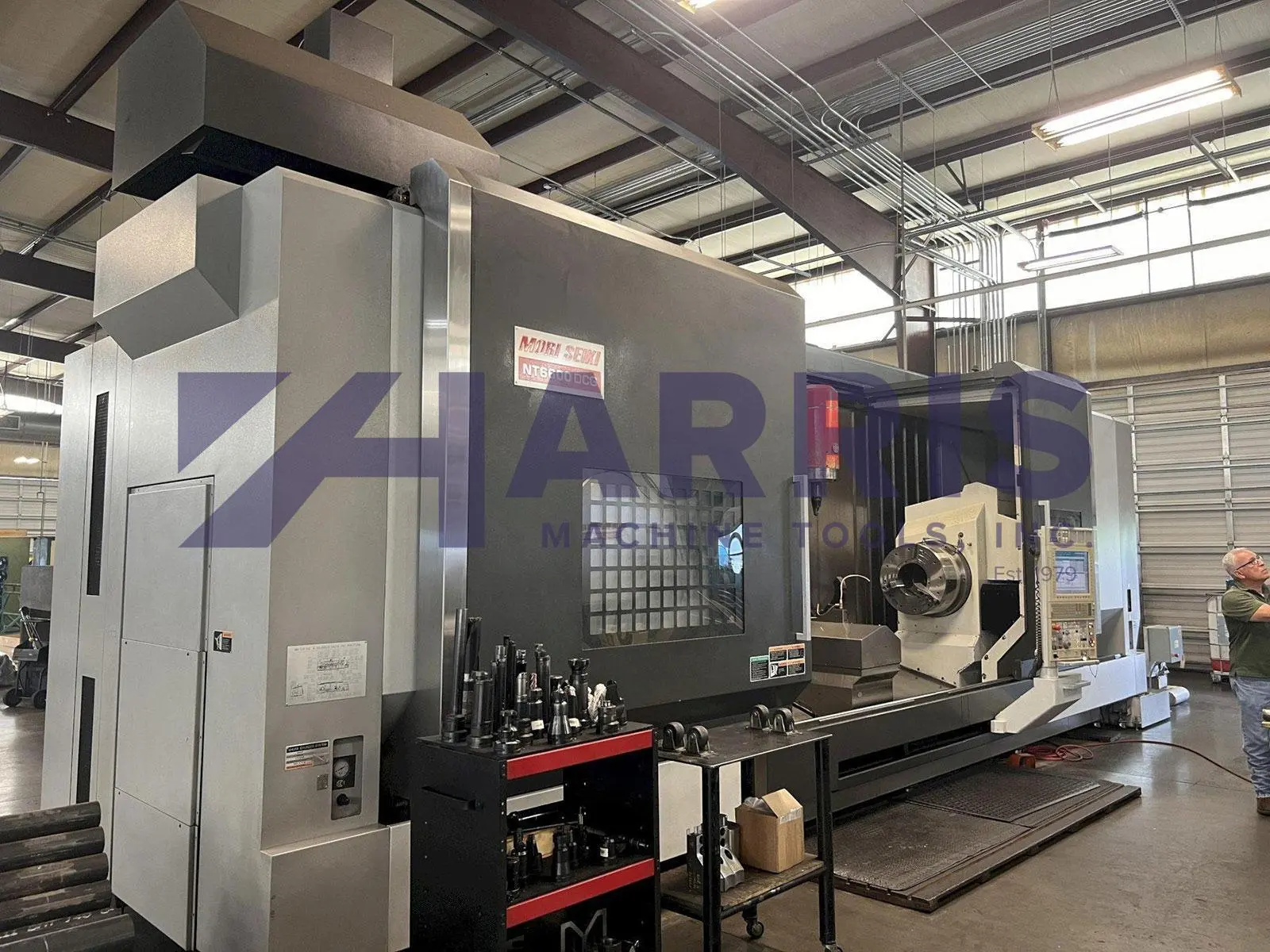

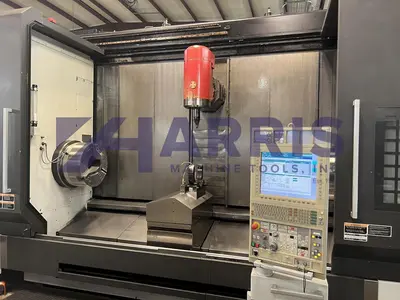

MORI SEIKI NT6600 DCG/3000CS 5 AXIS TURN MILL CENTER WITH SUB SPINDLE
Specifications
| Swing | 42" | 1,066.8 mm |
|---|---|---|
| Machining Length | 120" | 3,048 mm |
| # Axis | 5 | 5 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 10.8" | 274.32 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 42" | 1,066.8 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 360 X 182 X 169 | 360 X 182 X 169 |
| Weight | 130,000 | 130,000 |
Type of CNC Control: MSX-7111IV
# Axis: 5
Chuck Size: 24” inches
Swing: 42” inches
Turning Diameter: 42” inches
Center Distance: 120” inches
Bar Capacity: 10.8” inches
Main Motor: 40 HP
Spindle Bore: 10.8” inches
Spindle Speed (RPM): 1500
Sub Spindle Motor: 40 HP
Sub Spindle Bore: 10.8” inches
Sub Spindle Chuck Size: 24” inches
Sub Spindle Speed (RPM): 1500
X Axis Travel: 41” inches
Z Axis Travel: 122” inches
Y Axis (Yes / No): yes
Live Milling (Yes / No): yes
Live Milling Speed (RPM): 8000
Live Milling Motor: 40 HP
Weight: 130000 pounds
24" FRONT MOUNT AIR CHUCKS ON MAIN AND SUB SPINDLE
10.8" HOLE THROUGH MAIN AND SUB SPINDLE
MSX-711IV / FS-31iA5 CNC CONTROL
60 POSITION AUTOMATIC TOOL CHANGER
SUB SPINDLECOOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR TO CHIP CONVEYOR SYSTEM WITH REAR DISCHARGE
TAILSTOCK
Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
(1) Programmable Automatic Steady Rest (2.36 - 11.02" CAPACITY)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
Equipped With
24" FRONT MOUNT AIR CHUCKS ON MAIN AND SUB SPINDLE
10.8" HOLE THROUGH MAIN AND SUB SPINDLE
C AXISYAXISB AXISLIVE TOOLING/MILLINGMSX-711IV / FS-31iA5 CNC CONTROL60 POSITION AUTOMATIC TOOL CHANGERSUB SPINDLECOOLANT THROUGH SPINDLE (HIGH PRESSURE)CHIP CONVEYOR TO CHIP CONVEYOR SYSTEM WITH REAR DISCHARGE TAILSTOCK ENDAdditional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
(1) Programmable Automatic Steady Rest (2.36 - 11.02" CAPACITY)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
