USED LEHMANN 2516
Overview

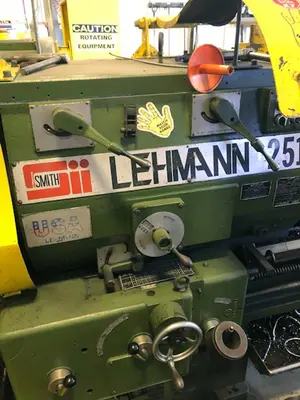

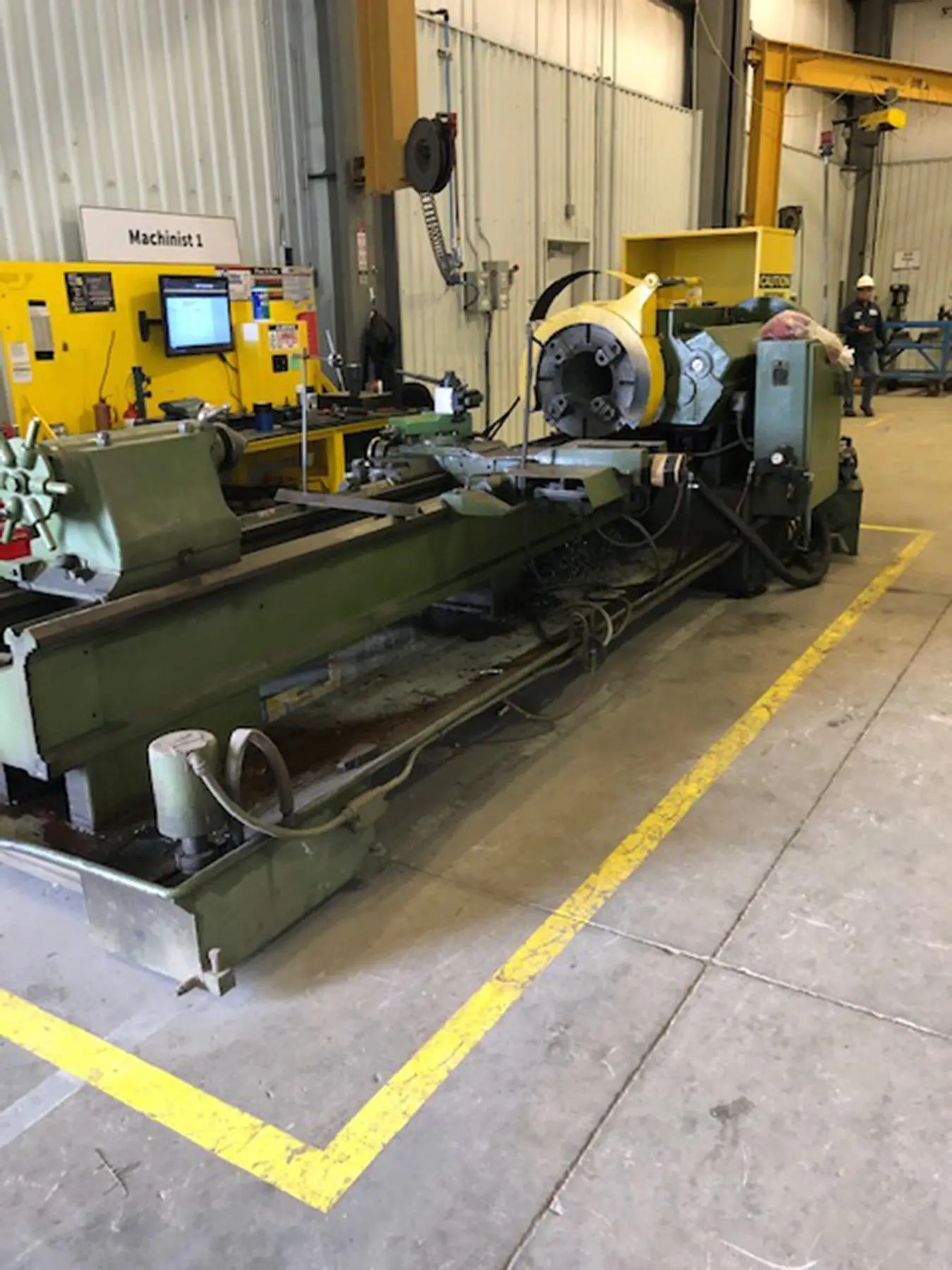

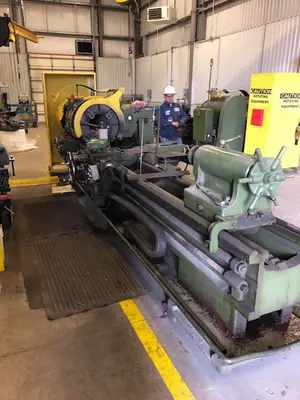

Lehmann 27" x 120" Oil Field and Hollow Spindle Lathe Model 2516
Swing Over Bed: 27.5 in.
Swing Over Carriage: 18.5 in.
Distance Between Centers: 120 in.
Spindle Bore: 12 in.
Spindle Motor: 30 HP
Spindle Speeds: 10 - 397 RPM
Number of Spindle Speed Ranges: 16
Feed Rates: 54 feeds, 0.005 - 0.326 IPR
Threading Range: 54 threads, 36 - 5/8 TPI
Tailstock Spindle Diameter: 4-7/8 in.
Tailstock Taper: MT5
Tailstock Spindle Travel: 12 in.
Coolant Pump Motor: 1/4 HP
Overall Dimensions (L × W × H): 228 × 71 × 62 in.
Approximate Weight: 14,000 lbs.
Equipped With:
Automatic Threading
Front & Rear 4-Jaw Chucks
12" Spindle Bore
Tool Post
Tailstock
Taper Attachment
Coolant System
Notes:
Bedways are in like-new condition.
Apron has been rebuilt.
Specs
Swing Over Bed: 27.5 in.
Swing Over Carriage: 18.5 in.
Distance Between Centers: 120 in.
Spindle Bore: 12 in.
Spindle Motor: 30 HP
Spindle Speeds: 10 - 397 RPM
Number of Spindle Speed Ranges: 16
Feed Rates: 54 feeds, 0.005 - 0.326 IPR
Threading Range: 54 threads, 36 - 5/8 TPI
Tailstock Spindle Diameter: 4-7/8 in.
Tailstock Taper: MT5
Tailstock Spindle Travel: 12 in.
Coolant Pump Motor: 1/4 HP
Overall Dimensions (L × W × H): 228 × 71 × 62 in.
Approximate Weight: 14,000 lbs.
Equipped With:
Automatic Threading
Front & Rear 4-Jaw Chucks
12" Spindle Bore
Tool Post
Tailstock
Taper Attachment
Coolant System
Notes:
Bedways are in like-new condition.
Apron has been rebuilt.
