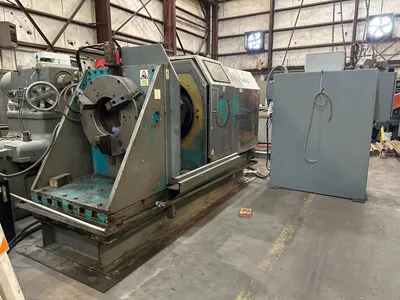

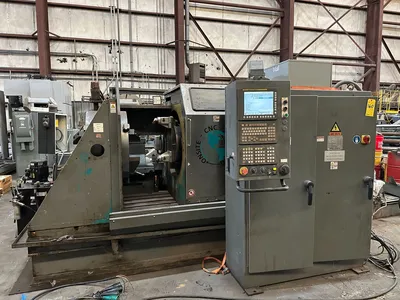

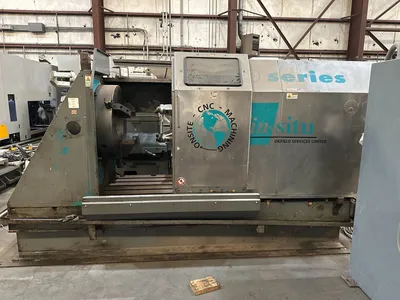

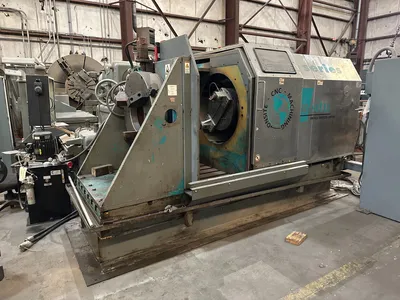

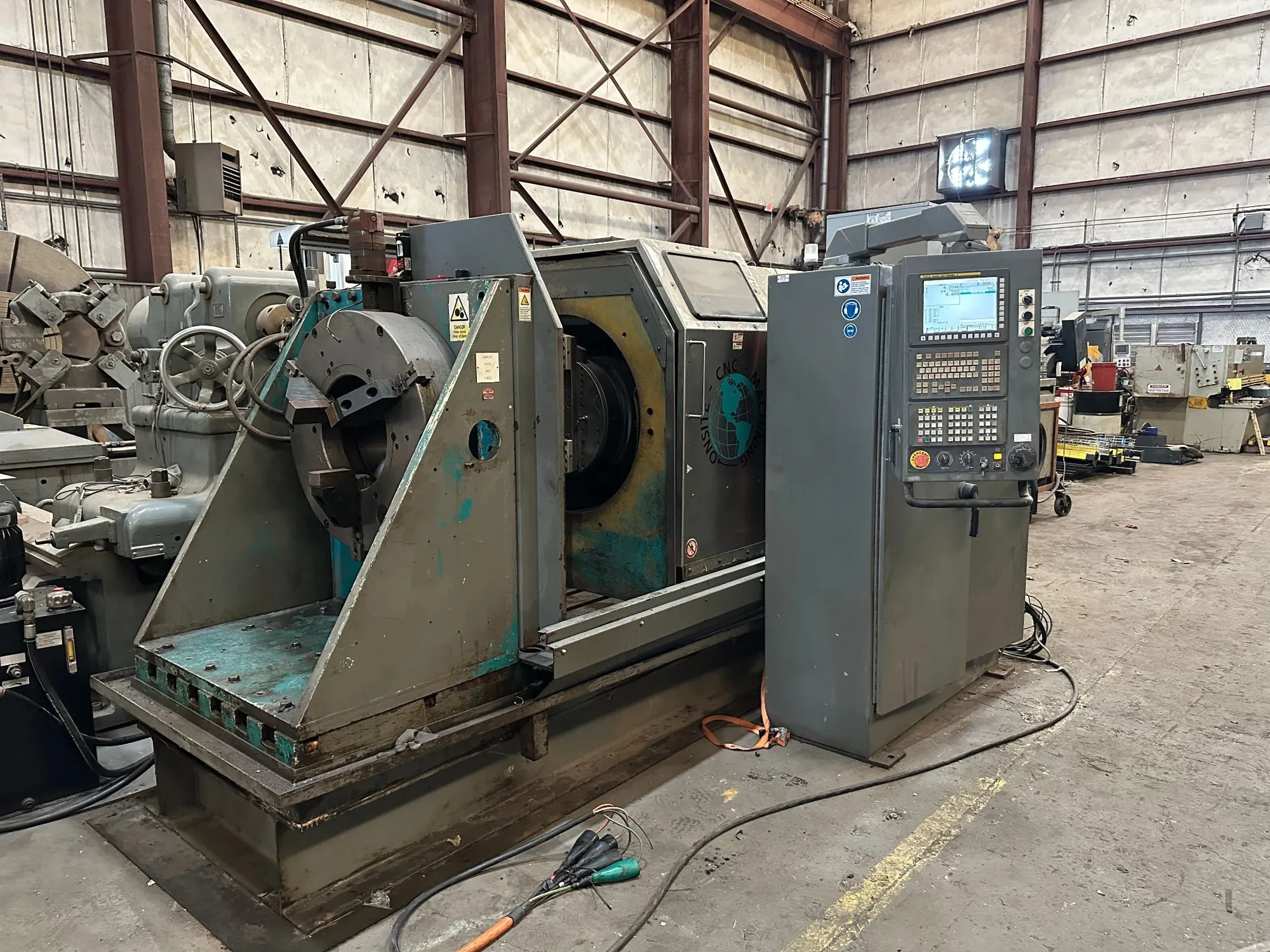

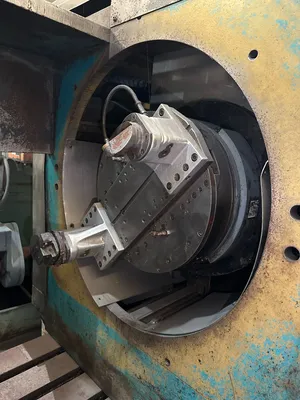

Bardons & Oliver (In-Situ) 20” capacity CNC Pipe Threading Lathe. Fixed Workpiece, Rotating Tool Design.

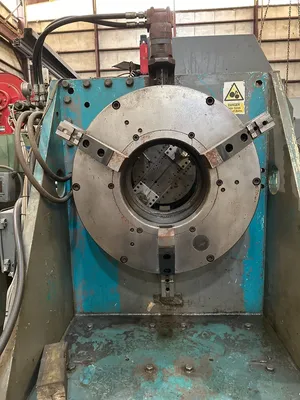

Maximum workpiece diameter through front and rear work holding chucks: 15".
ID / OD CNC Threading.
C-Axis positioning for thread repair functionality.
Pipe infeed station with powered hourglass rollers.
| Swing | 20" | 508 mm |
| Machining Length | 18" | 457.2 mm |
| # Axis | 2 | 2 |

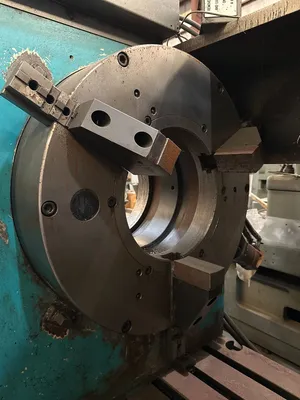

| Chuck Size | 20" | 508 mm |
| Bar Capacity | 15" | 381 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Spindle Bore | 15" | 381 mm |

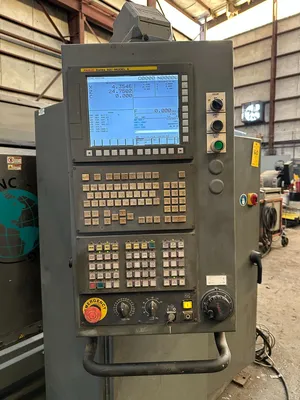

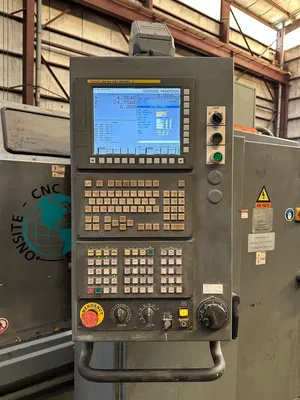

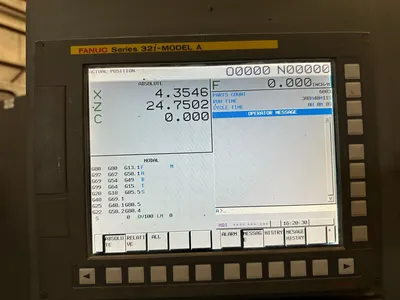

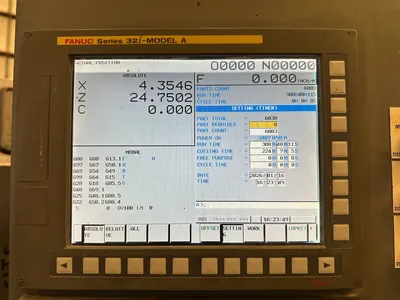

| Control | CNC | CNC |
| Dimensions | 175 in x 92 in x 90 in | 175 in x 92 in x 90 in |
| Weight | 15000 lbs | 15000 lbs |
