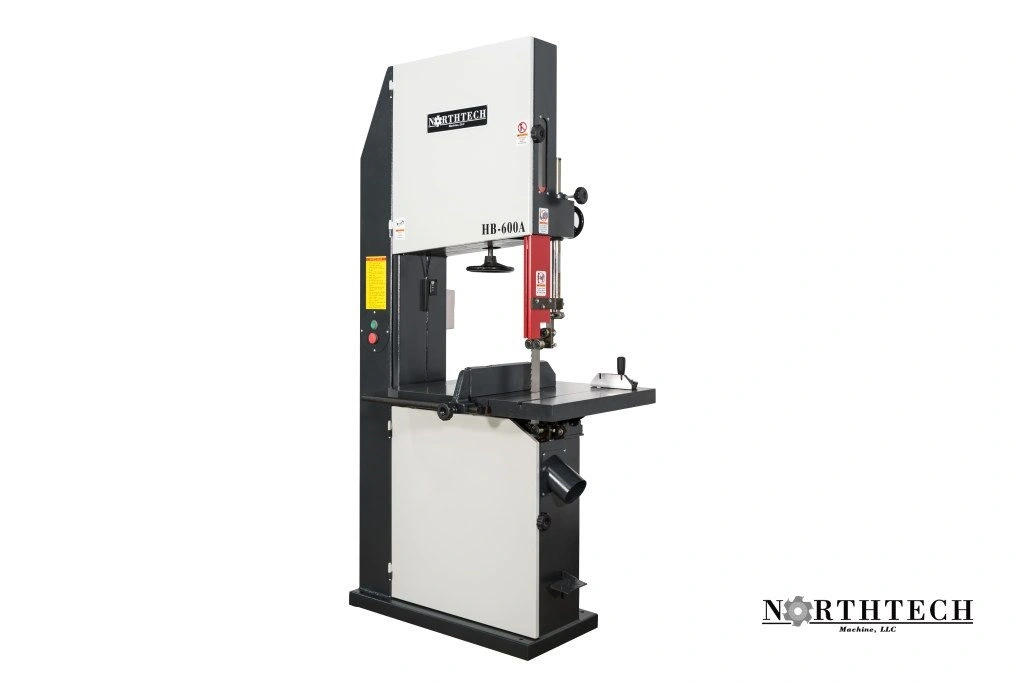

The Northtech 600a is our entry level vertical resaw with a robust design that incorporates 24″
band wheels, oversized work table, a 7.5HP motor and up to 2″ bandsaw blade for years of
dependable performance. Having the capability of 1/4″-2″ blades allows for curved part cut outs
to production resawing.
MAIN MOTOR HP: 7.5 HP.
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 11 / 22 Amps
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 230 Volt
PASS-LINE: 34”
MAX. WORKING WIDTH: 22-7/8” W/O Fence
MIN. WORKING THICKNESS: 13-1/2”
ABLE TO CUT ANGLE: 60 Degree Table Tilt
BLADE SIZE: 2” x 177”
NO. OF TEETH ON BLADE: 236
TOOTH SPACING: 3/4”
BLADE KERF: .032”
Voltage: 230/460
Machine HP: 7.5HP
Phase: 3Ph
