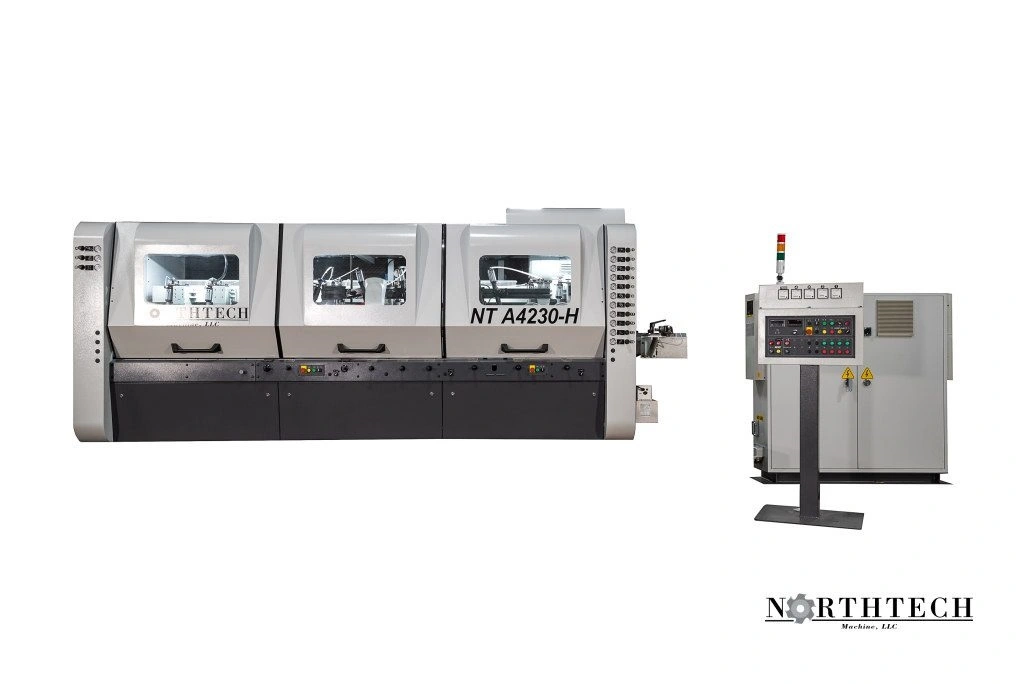

NEW NORTHTECH NT-A4230-H320

The NT A4230-H is a 4 head 320fpm high speed moulder. The single head per side configuration

can be equipped with heads and high HP making it a better option to outdated 4 sided planers.

The 6″ x 9″ capacity moulder with a 4 head single side configuration provides a small footprint and

high dimensional stock capacity. Features such as chrome table, Siko mechanical readouts, extra

bed rollers, oversized infeed, automatic bed oiler and independent spindle motors powering

50mm(2″) 6000RPM Spindles are standard. With optional larger capacities, oil cooled infeeds and

speeds up to 300M/MIN (960FPM), the A series is a premium industrial grade moulder able to

accommodate any customers moulding needs.

MACHINE HP: 171 HP

REVERSIBLE MOTOR: Feed

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz

PHASE: 3 Phase

AMP REQUIREMENT: 370/185 Amps

CONFIGURATION: B – L – R – T

1ST SPINDLE: 40 HP Bottom Horizontal

2nd SPINDLE: 25 HP Right Vertical

3rd SPINDLE: 25 HP Le| Vertical

4th SPINDLE: 50 Hp. Top Horizontal

SPINDLE DIAMETER: 1-13/16”

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: Horizontal 10” Vertical 7”

FEED HP: 50 HP

FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers

Voltage: 230/460
Machine HP: 171 HP
Phase: 3Ph
