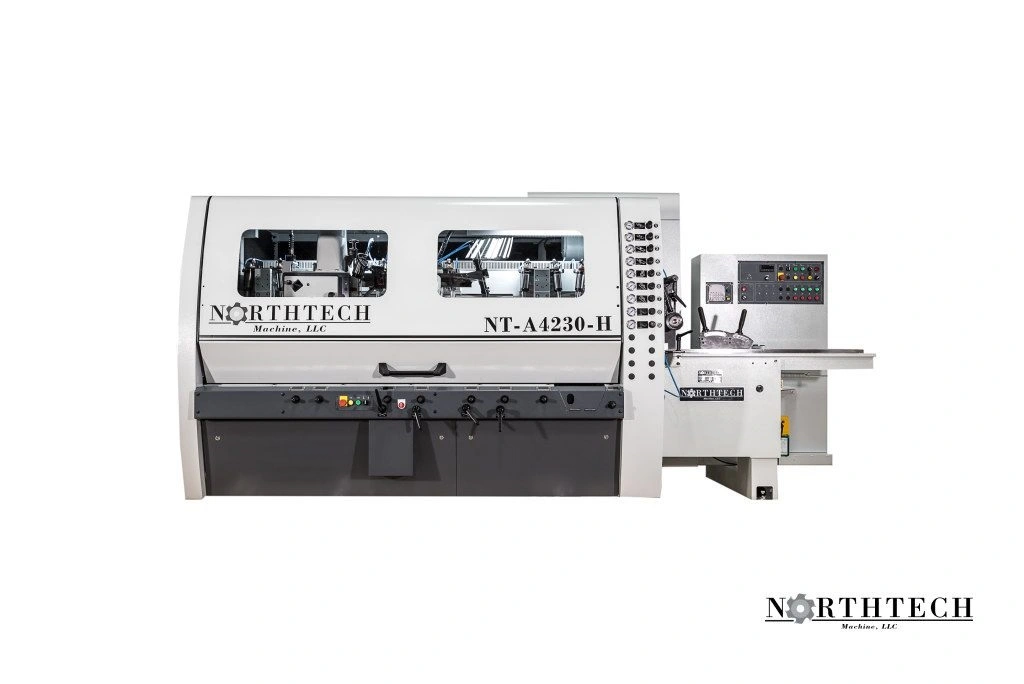

NEW NORTHTECH NT-A4230-H150

The NT A4230-H is a 4 head high speed moulder. The single head per side configuration can be

equipped with hydro locking helical heads and high HP making it a better option to outdated 4

sided planers. The 6″ x 9″ capacity moulder with a 4 head single side configuration provides a

small footprint and high dimensional stock capacity. Features such as chrome table, Siko

mechanical readouts, extra bed rollers, oversized infeed, automatic bed oiler and independent

spindle motors powering 50mm(2″) 6000RPM Spindles are standard. With optional larger

capacities, oil cooled infeeds and speeds up to 300M/MIN (960FPM), the A series is a premium

industrial grade moulder able to accommodate any customers moulding needs.

MACHINE HP: 101 HP

REVERSIBLE MOTOR: Feed

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 238/119 Amps

CONFIGURATION: B – R – L – T

1ST SPINDLE: 25 HP Bottom Horizontal

2nd SPINDLE: 15 HP Right Vertical

3rd SPINDLE: 15 HP Le| Vertical

4th SPINDLE: 30 HP Top Horizontal

SPINDLE DIAMETER: 1-13/16”

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: 10” Vertical 7” Horizontal

FEED HP: 15 HP

FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers

Voltage: 230/460
Machine HP: 101HP
Phase: 3Ph
