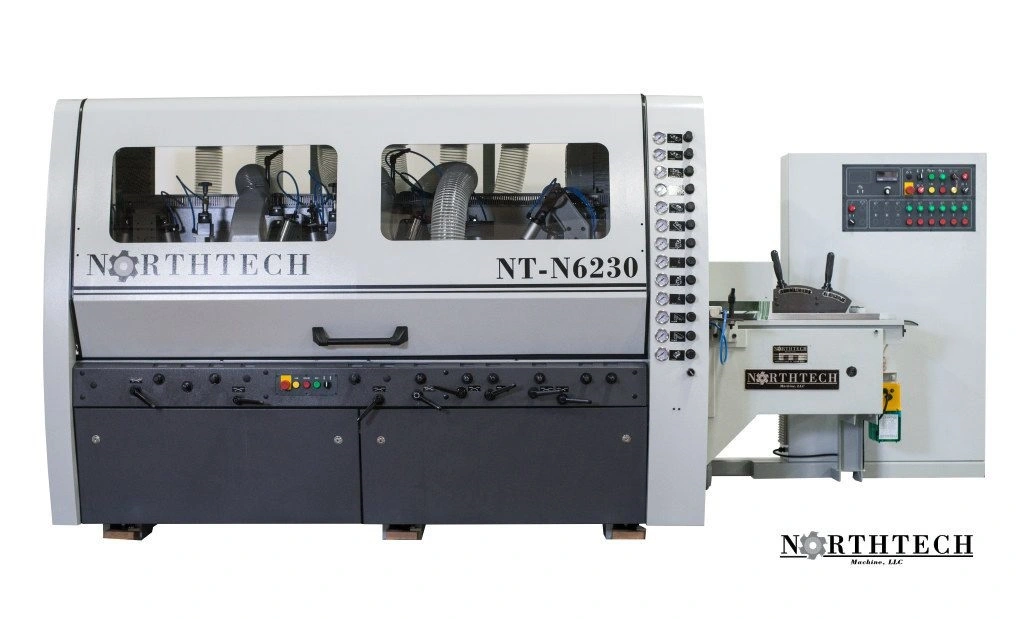

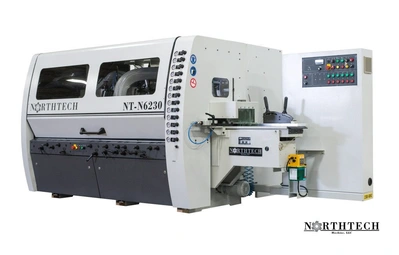

NEW NORTHTECH NT-N6230

The NT N6230 is quite possibly the best valued moulder available. The 6″ x 9″ capacity moulder

with a standard 6 head configuration provides limitless profiling possibilities. Features such as

chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors

powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features

available making the N series is an excellent option to higher priced competitive models.

Download Spec Sheet Here: Northtech N6230 6 spindle moulder

MACHINE HP: 88 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 210/105 Amps

CONFIGURATION: B-R-L-T-T-B

1ST SPINDLE: Bottom Horizontal 10 HP 6000 RPM

2nd SPINDLE: Right Vertical 10HP 6,000 RPM

3rd SPINDLE: Le| Vertical 10HP 6,000 RPM

4th SPINDLE: Top Horizontal 15HP 6,000 RPM

5th SPINDLE: Top Horizontal 15HP 6,000 RPM

6th SPINDLE: Bottom Horizontal 10 HP 6,000 RPM

SPINDLE DIAMETER: 1-13/16”

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: 10-1/2” Horizontal 7-1/2” Vertical

FEED HP: 7.5 HP

Voltage: 230/460
Machine HP: 88HP
Phase: 3Ph
