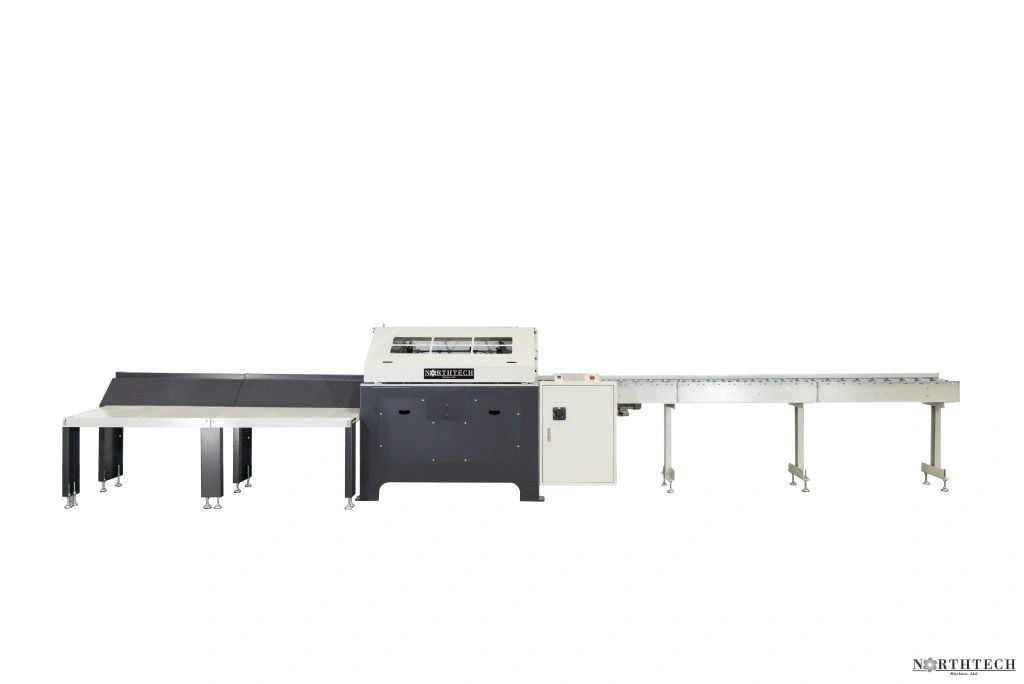

NEW NORTHTECH NT-EM250

The NT-EM250 is our automatic 10″ working width feed through end matcher. The feed through

design allows for simultaneously processing of both the tongue and groove end to two random

length parts upon a single tool stroke. This provides an extremely e{icient operation especially

when connected to an automatic defect saw

MAIN MOTOR HP: (2) 5 HP Motors

VOLTAGE, FREQUENCY: 230/460 Volt 60Hz

PHASE: 3 Phase

AMP REQUIREMENT: 19.5 / 39 Amps

1ST STATION: Tongue

2ND STATION: Groove

1ST SPINDLE: 7410 RPM Male 40MM Tongue

2nd SPINDLE: 7410 RPM Female 40 MM Groove

SPINDLE LENGTH: 5”

SPINDLE DIAMETER: 40 MM

SPINDLE RPM: 7410 rpm

FEED HP: 1 HP Machine Feed 1/2 HP Infeed Table

FEED SYSTEM: (4) Feed Wheels

DRIVE SYSTEM: Gear Driven

FEED SPEED RANGE: 80 – 400 FPM

Voltage: 230/460
Machine HP: (2) 5HP
Phase: 3Ph
