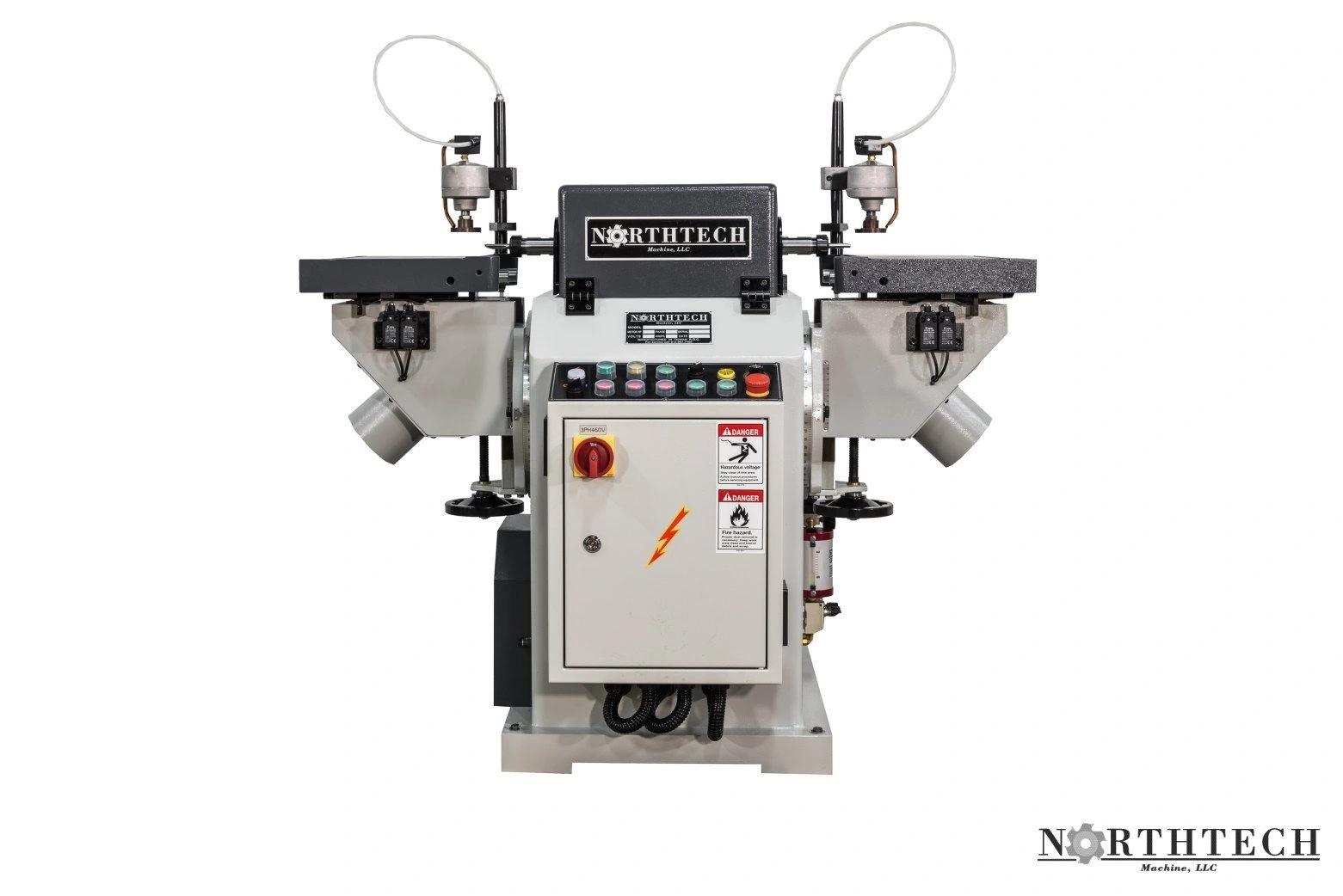

NEW NORTHTECH NT-RSM120

Northtech Round Slot Mortisers use an oscillating round cutter to cut an adjustable length slot

with rounded ends. The NT-RSM120 is designed with (2) stations, each with its own pneumatic

clamp and auto indexing table for higher production rates. Slot depth is individually adjustable on

both tables and can be equipped with optional reference lasers for quicker size changes.

MACHINE HP: 3.5 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz

PHASE: 3 Phase

AMP REQUIREMENT: 11.8/5.9 Amps

1ST STATION: 16MM Collet 10MM Bit

2ND STATION: 16MM Collet 10MM Bit

SPINDLE RPM: 11445 RPM

ELEVATION STYLE: Manual Hand Wheel

ELEVATION SYSTEM: Jack Screw

TOTAL MACHINE HP: 3.5 HP

APPROVED ELECTRICAL PARTS: CE Approved Components

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: 220 Volt

PASS-LINE: 36” Center of Bit

MAX. WORKING THICKNESS: 4” Max Clamp Thickness

Voltage: 230/460
Machine HP: 3.5HP
Phase: 3Ph
