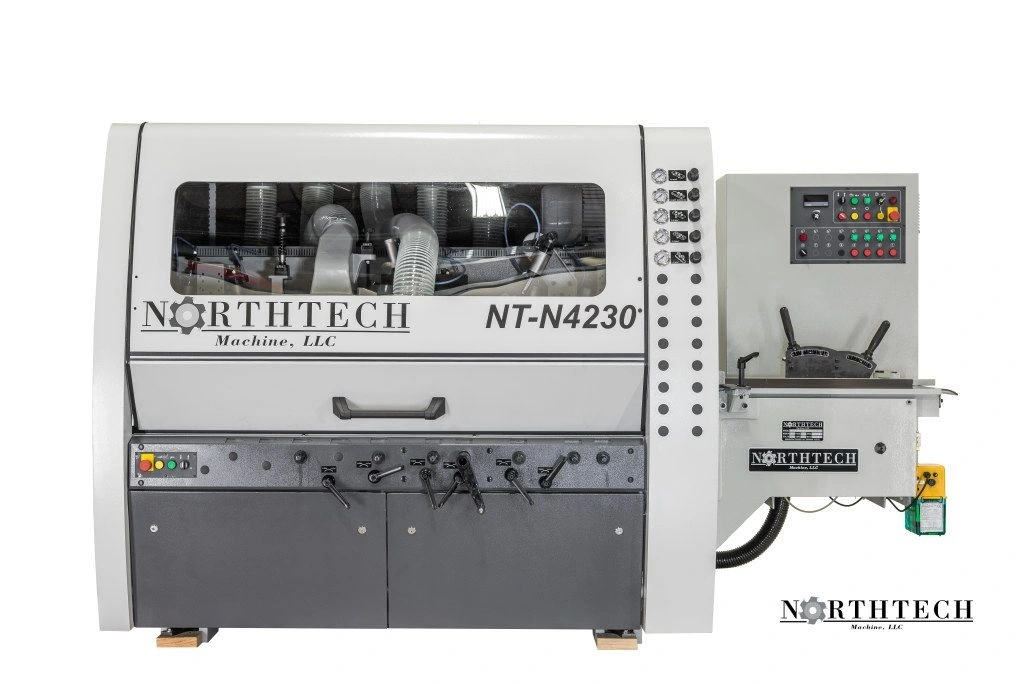

NEW NORTHTECH NT-4230

The NT N4230 is our standard 4 head N series machine. The 6″ x 9″ capacity moulder with a

standard 4 head configuration provides excellent S4S and simple profiled mouldings. Features

such as chrome table, Siko mechanical readouts, automatic bed oiler and independent motors

powering 1-13/16″ 6000RPM spindles are standard. There are a vast amount of optional features

available making the N series is an excellent option to higher priced competitive models.

MACHINE HP: 43 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 228/114 Amps

CONFIGURATION: B-R-L-T

1ST SPINDLE: Bottom Horizontal 10HP 6,000RPM

2nd SPINDLE: Right Vertical 10HP 6,000RPM

3rd SPINDLE: Le| Vertical 10HP 6,000RPM

4th SPINDLE: Top Horizontal 15HP 6,000RPM

SPINDLE DIAMETER: 1-13/16”

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: Horizontal 10” Vertical 7″

FEED HP: 7.5 HP

FEED SYSTEM: Knurled and Urethane Rollers

DRIVE SYSTEM: Carden Shaft

Voltage: 230/460
Machine HP: 43HP
Phase: 3Ph
