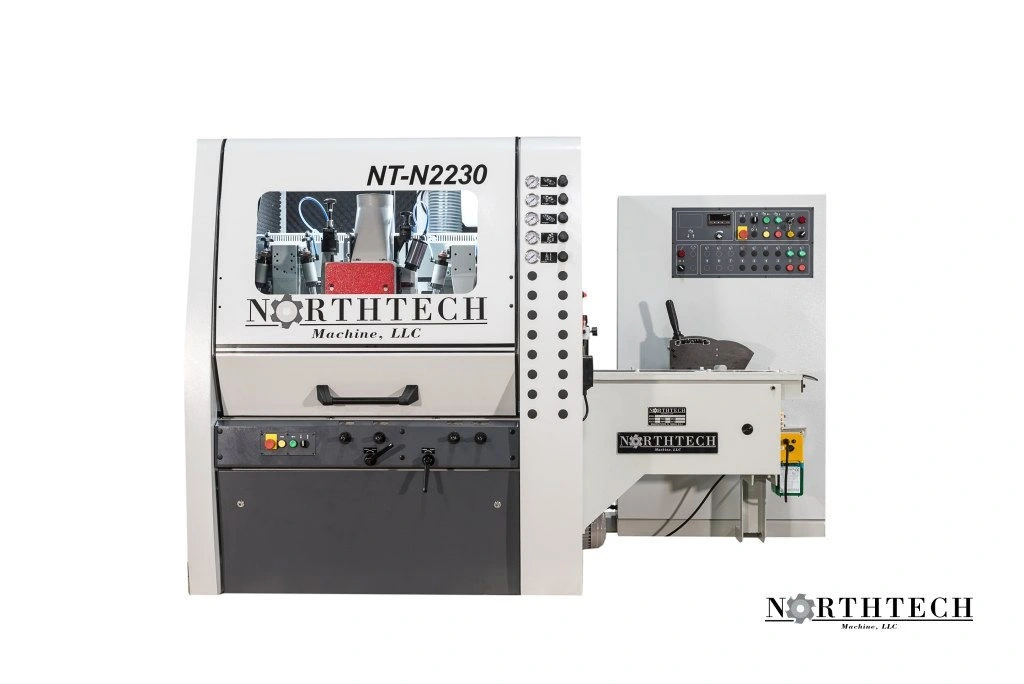

NEW NORTHTECH NT-N2230

The NT N2230 is a specially designed 6″ x 9″ moulder. This 2 spindle machine is configured with a

single top and bottom horizontal spindle. The elimination of vertical spindles allows for an

industrial grade machine with a small footprint. Features such as chrome table, Siko mechanical

readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM

Spindles are standard. There are a vast amount of optional features available making the N series

is an excellent option to higher priced competitive models.

MACHINE HP: 33 HP

REVERSIBLE MOTOR: Feed

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz

PHASE: 3 Phase

AMP REQUIREMENT: 110-55 Amp

CONFIGURATION: B – T

1ST SPINDLE: 10 HP Bottom Horizontal

2nd SPINDLE: 15 HP Top Horizontal

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: 9-3/4”

FEED HP: 7.5 HP

FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers

DRIVE SYSTEM: Gear Box / Carden Shaft

FEED SPEED RANGE: 20-120 FPM

VARIABLE FEED SPEED: Inverter Controlled

Voltage: 230/460
Machine HP: 33HP
Phase: 3Ph
