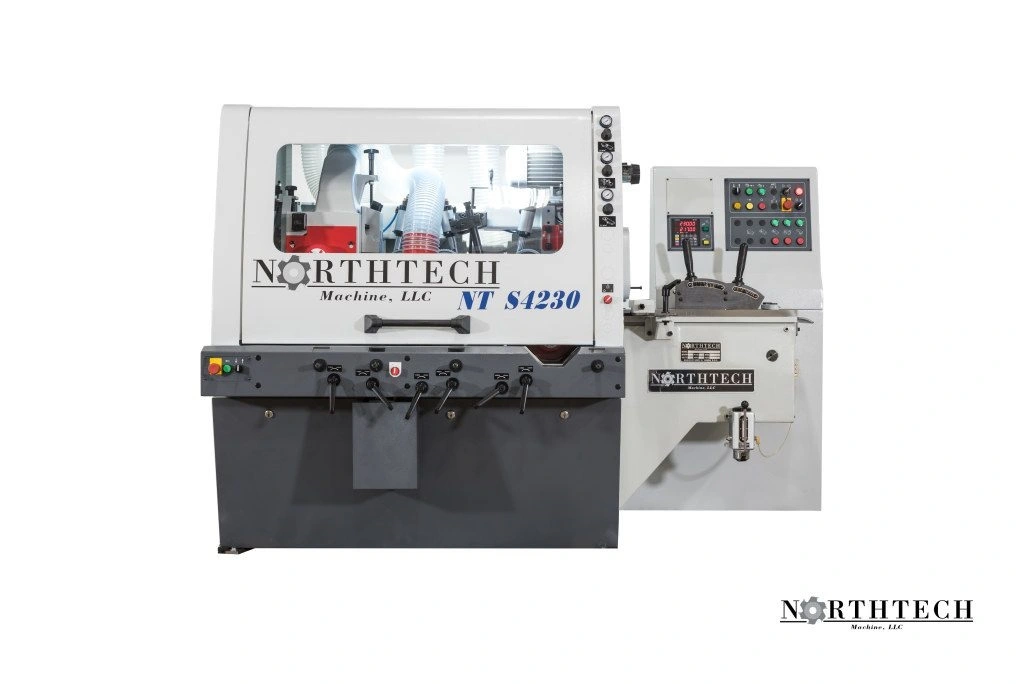

NEW NORTHTECH NT-4230-1

The NT S4230-1 is a compact heavy duty 4 head moulder with large moulder capacity and a

digitally positioned outside spindle for fast width changes. The 5″ x 9″ capacity moulder with

single head per side configuration provides simple profile and excellent S4S capability while

maintaining a compact footprint. Features such as chrome table, Siko mechanical readouts, bed

oiler, and 40mm 6000RPM spindles are standard. Many upgradeable options for operator

convenience makes the S series is an excellent option when space matters.

MACHINE HP: 33.3 HP

REVERSIBLE MOTOR: Reversible Feed

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 91.6/45.8 Amps

CONFIGURATION: B-R-L-T

1ST SPINDLE: Bottom 7.5 HP 6000RPM

2nd SPINDLE: Right Shared 15 HP 6000 RPM

3rd SPINDLE: Le| Shared 15 HP 6000 RPM

4th SPINDLE: Top 7.5 HP. 6000 RPM

SPINDLE DIAMETER: 40 MM

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: 10-1/4” Horizontal, 6” Vertical

FEED HP: 3 HP

FEED SYSTEM: Knurled and Urethane Rollers.

Voltage: 230/460
Machine HP: 33.3HP
Phase: 3Ph
