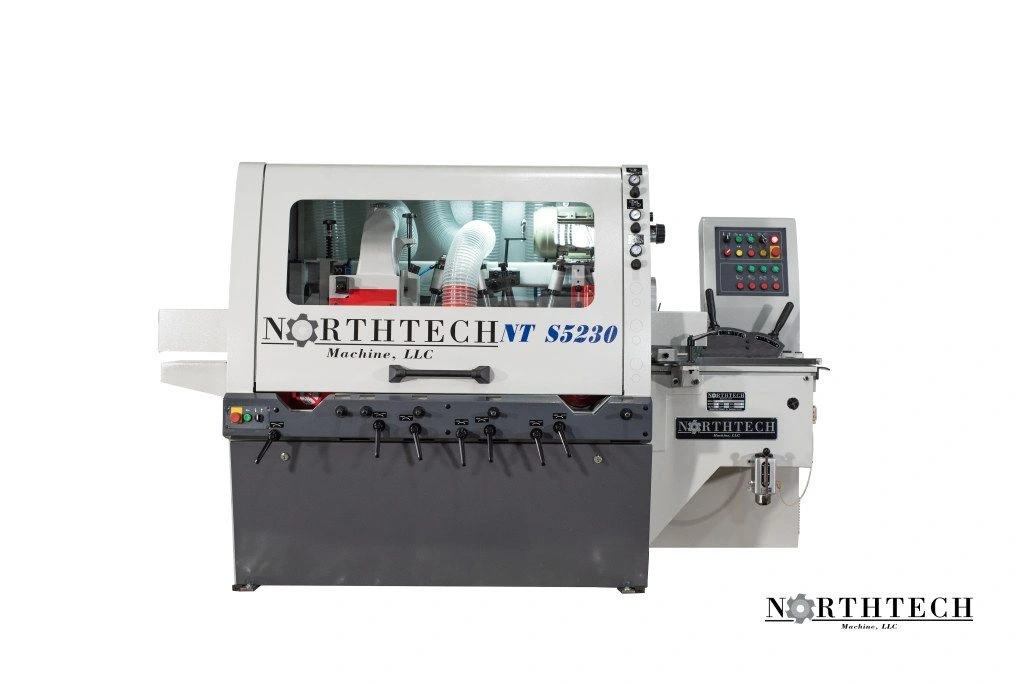

NEW NORTHTECH NT-5230

The NT S5230 is a compact heavy duty 5 head moulder with large moulder capacity . The 6″ x 9″

capacity moulder with a 5 head double bottom configuration provides more flexibility for a larger

selection of profiles while maintaining a compact footprint. Features such as chrome table, Siko

mechanical readouts, bed oiler, and 40mm 6000RPM spindles are standard. Many upgradeable

options for operator convenience makes the S series is an excellent option when space matters.

MACHINE HP: 41 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz

PHASE: 3 Phase

AMP REQUIREMENT: 100/50 Amps

CONFIGURATION: B – R – L – T – B

1ST SPINDLE: 7.5 HP Bottom Horizontal

2nd SPINDLE: 15 HP Le| / Right Vertical Shared

3rd SPINDLE: 15 HP Le| / Right Vertical Shared

4th SPINDLE: 7.5 HP Top Horizontal

5th SPINDLE: 7.5 HP Bottom Horizontal

SPINDLE LENGTH: 40 MM

SPINDLE RPM: 6000 RPM

UNDER THE NUT CAPACITY: 10” Horizontal 6” Vertical

FEED HP: 3 HP

FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers

Voltage: 230/460
Machine HP: 41HP
Phase: 3Ph
