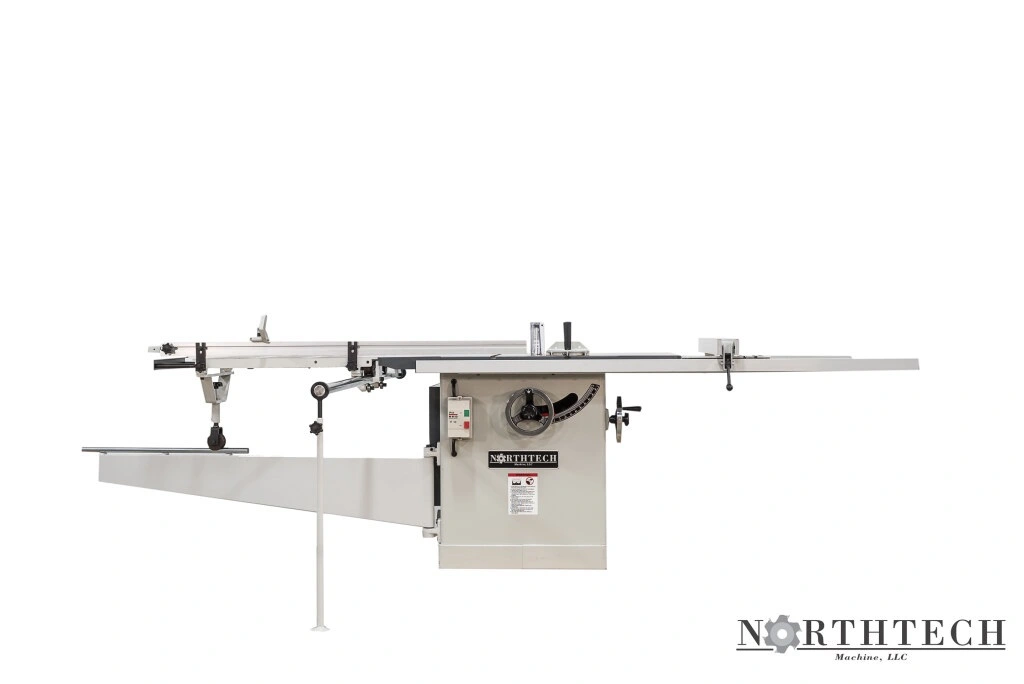

NEW NORTHTECH NT-12L

The NT-12L Table Saws employs a rugged steel cabinet and extended steel top for decades of

dependable use. The left tilting blade adjustment is easily accessible on the front of the machine

with visual angle scale. Optional 7.5HP or 5HP motor provides a 4″ cut depth at 90 degrees and

almost 3″ at 45 degrees. Optional side slide table runs along lineal rail for precision panel cutting

Download spec sheet here: Northtech NT-12L Tablesaw

MAIN MOTOR HP: 7.5 HP

VOLTAGE, FREQUENCY: 230/460 Volt

PHASE: 3 Phase

AMP REQUIREMENT: 20/10 Amps

ELEVATION STYLE: Manual Wheel Adjustment

ELEVATION SYSTEM: Worm Gear

TOTAL MACHINE HP: 7.5 HP

APPROVED ELECTRICAL PARTS: CE Approved Parts

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: 230/460 Volt Line Voltage

PASS-LINE: 34-1/8”

CUTTING ENVELOPE: 4” x 51” with Fence

MAX. WORKING WIDTH: 51”

MAX. WORKING THICKNESS: 4”

ABLE TO CUT ANGLE: Yes

Voltage: 230/460
Machine HP: 7.5HP
Phase: 3Ph
