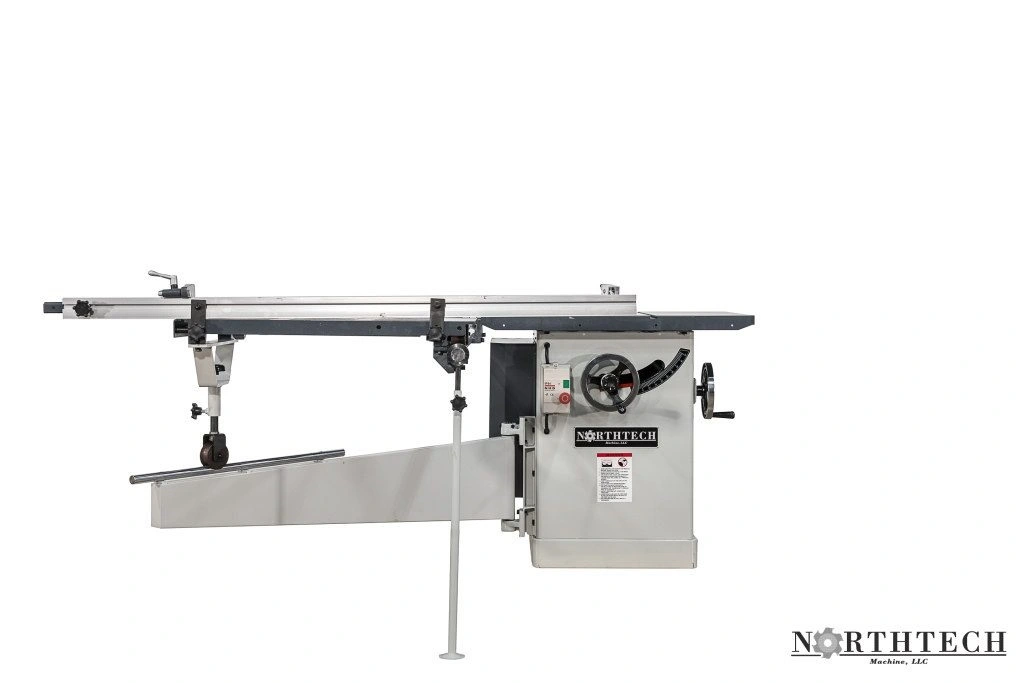

NEW NORTHTECH NT-10L

The NT-10L Table Saws employs a rugged steel cabinet and extended steel top for decades of

dependable use. The left tilting blade adjustment is easily accessible on the front of the machine

with visual angle scale. The 3HP motor provides a 3″ cut depth at 90 degrees and 2″ at 45 degrees.

Optional side slide table runs along lineal rail for precision panel cutting.

Dowload Spec Sheet Here: Northtech NT-10L Tablesaw

MAIN MOTOR HP: 3 HP

VOLTAGE, FREQUENCY: 230/460 Volt

PHASE: 1 Phase

AMP REQUIREMENT: 9/18 Amps

DRIVE SYSTEM: V-belt

TOTAL MACHINE HP: 3 HP

APPROVED ELECTRICAL PARTS: CE Approved Components

CONTROL VOLTAGE: 230 Volt

PASS-LINE: 34-3/8”

MIN. WORKING LENGTH: 13-1/4”

MIN. WORKING WIDTH: 1”

MAX. WORKING WIDTH: 51-1/4”

MAX. WORKING THICKNESS: 3”

ABLE TO CUT ANGLE: 45 Degrees

ARBOR RPM: 4100 RPM

Voltage: 220V
Machine HP: 3HP
Phase: 1Ph
