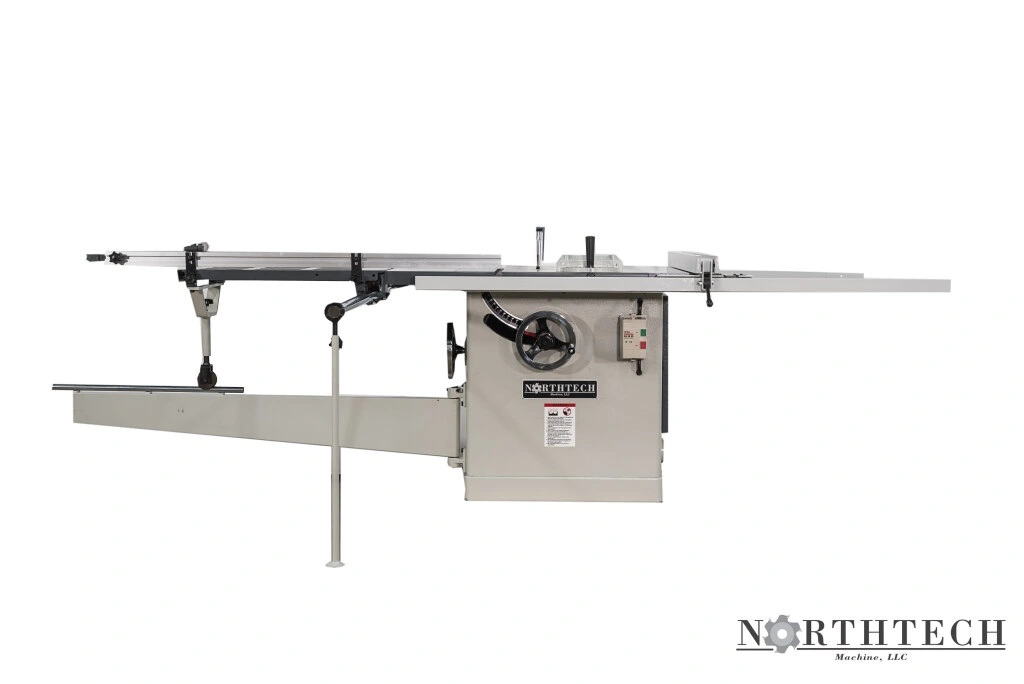

NEW NORTHTECH NT-16R

The NT-16R Table Saws employs a rugged steel cabinet and extended steel top for decades of

dependable use. The right tilting blade adjustment is easily accessible on the front of the machine

with visual angle scale. The 10HP blade motor provides a 6″ cut depth at 90 degrees and over 4″ at

45 degrees. Optional side slide table runs along lineal rail for precision panel cutting

Dowload Spec Sheet Here: Northtech NT-16L Tablesaw

MAIN MOTOR HP: 10 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz

PHASE: 3 Phase

AMP REQUIREMENT: 30 / 15 Amps

ELEVATION STYLE: Manual Hand Wheel

ELEVATION SYSTEM: Hand Wheel Rack and Pinion

TOTAL MACHINE HP: 10 HP

APPROVED ELECTRICAL PARTS: CE Approved Parts

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: Line Voltage

PASS-LINE: 35-1/4”

MAX. WORKING WIDTH: 51”

MAX. WORKING THICKNESS: 5-1/2”

ABLE TO CUT ANGLE: 45 Degree

ARBOR RPM: 3860 RPM

Voltage: 230/460
Machine HP: 10HP
Phase: 3Ph
