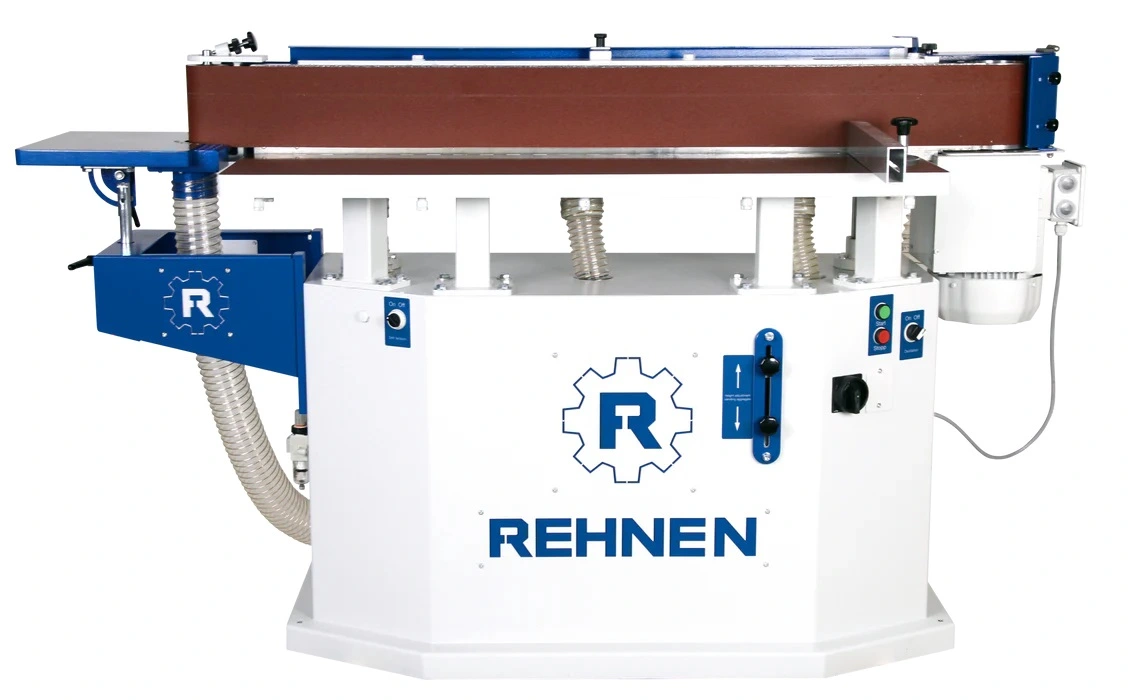

NEW REHNEN SK4

Rehnen Edge Sanding Machine Sk4.
Model: SK-4

Motor: 4kW, 5.4 HP

Belt size: 150x3330mm (5.9×131.1”)

Platen size: 180x1370mm (7.09×53.94”)

Table working height: 930mm (36.61”)

Main table size: 350x1250mm (13.78×49.21”)

Belt speed: 11 m/s (2952 fpm)

Oscillation per Minute: Varies

Operating pressure for pneumatic belt tension: 72 psi

Operating pressure for pneumatic oscillation: 87 psi

Drum Diameter: 140 & 80mm (5.51” & 3.15”)

Dust Connection Diameter Main: 160mm (6.3”)

Dust Collection Minimum CFM Required: 480

Overall Dimensions: 1970x750x1120mm (77x30x44)

Shipping Dimensions: 2000x1000x1200mm (79x39x47”)

Weight Shipping/Net: 490/470kg (1080/1036lbs)

Voltage: 230/460
Machine HP: 4kW
