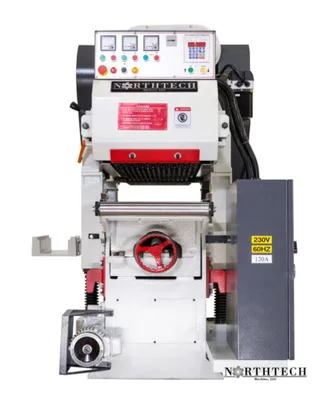

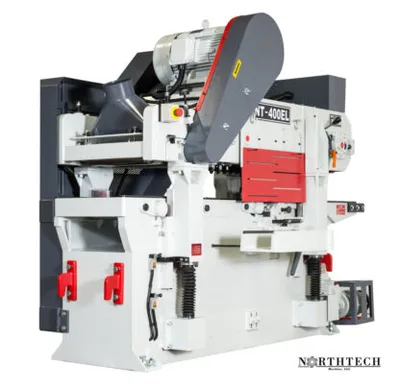

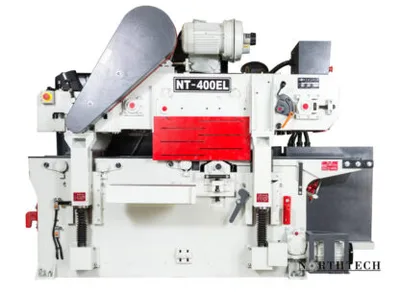

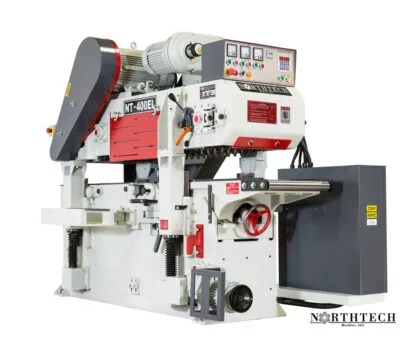

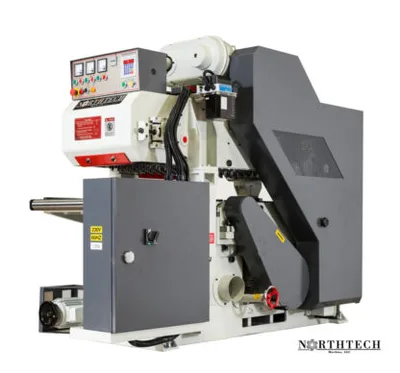

NEW NORTHTECH NT-400EL

The NT 400EL is our most economical double surfacer. Double surfacers, some times referred to as

2 sided planers are used to size the thickness of wood and other dense materials such as plastic.

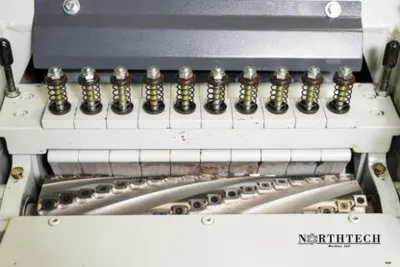

The NT 400EL has a 16″ working width and over 6″ working height. The powered top and bottom

helical cutter head uses four sided 15x15x2.5 carbide insert cutters for a smooth finish across the

entire width. The powered feed system is designed with integrated chrome bed rollers and a chain

driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded

carpet spike system allows this machine to not only size the thickness, but also straighten warped

or crooked material. The top head is easily accessible for tooling changes by removing the dust

hood and the bottom head pulls out of the machine completely in just a couple minutes for full

access. The upper assembly is supported by a heavy duty slideway system that provides precision

thickness sizing across the entire width and has digital thickness positioning control. Northtech

Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and

can be oxered with a safety/sound enclosure.

Voltage: 230/460V
Machine HP: 15HP Top 15 HP Bottom
Phase: 3Ph
